All Dielectric Micro Tube Building Vertical G652D Fiber Optic Wire
All Dielectric Micro Tube Building Vertical G652D Fiber Optic Wire
Specifications
Brand Name :
Geto Telecom
Model Number :
GJPFH
Certification :
ISO 9001: 2015
Place of Origin :
China
MOQ :
1000M
Price :
0.3
Payment Terms :
L/C, T/T
Supply Ability :
3000 M/Day
Delivery Time :
5-8 Days
Packaging Details :
Drum
Product Name :
All-dielectric Micro-tube Building Vertical Wiring Fiber Cable
Fiber Type :
ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Core :
2-96 Cores
Application :
self supporting outdoor fiber optic cable
Armored :
Yes
Operating Temperature :
-40℃ to + 70℃
Out sheath :
Black Polyethylene (PE)
Packing :
1km/2km/4km/roll
Color :
Black, Usually Black Color, blue or others, Aqua, yellow
Jacket material :
LSZH, PVC, PE, TPU, PVC/LSZH
Sheath :
MDPE/HDPE, PLENUM, LSZH, PVC, ect
Strength member :
steel wire, Metallic wire, FRP
Description

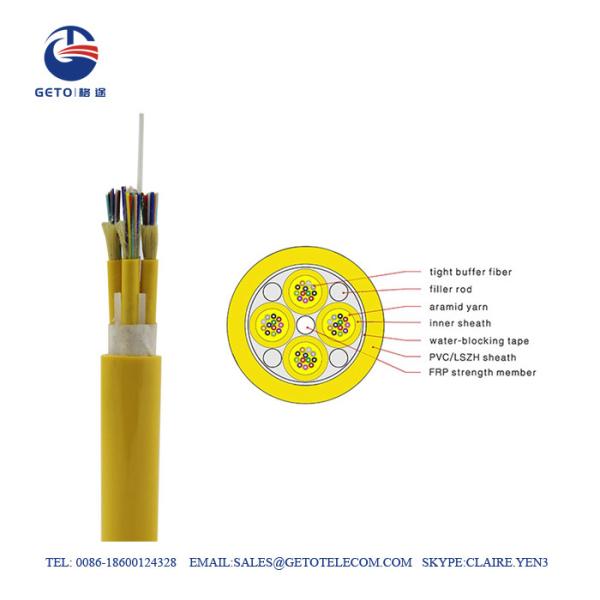

GJPFH All-dielectric Micro-tube Building Vertical Wiring Fiber Cable

Description

GJPFH fiber optic cable is mainly used for vertical and horizontal wiring of buildings.This cable fully reflects the the fibre core is peeling easily and branching easily. At the corresponding floor, only the corresponding optical fiber is used to take out the corresponding optical fiber for construction, and it is not necessary to disconnect the entire optical fiber cable, thereby greatly saving construction process. It is now widely used in telecommunications, mobile communication buildings and inter-office communications.

All Dielectric Micro Tube Building Vertical G652D Fiber Optic Wire

Features:

  • Accurate process control ensuring good mechanical and temperature performances
  • Good structure design, easy for branching and splicing
  • Small size and light weight, easy for installation
  • LSZH sheath ensuring good flame-retardant performance
  • Especially applicable to vertical wiring in buildings

Technical Parameters(Typical Value):

No. of cable 36 72
Fiber Model G.657A2
Module Material LSZH
Thickness 0.17(±0.02)mm
Diameter 0.9(±0.05)mm
Strength Member Material FRP
Diameter 1.0(±0.05)mm
No. 2
Outer Sheath Material LSZH-FR
Color White
Cable Diameter 10.5±0.5 11.5±0.5

Max. allowable tension

(Short-term)

 600N

Max. allowable tension

(Long-term)

 200N
Crush resistance test 1000N/10cm
Min. bending radius Static 105mm 115mm
dynamic 210mm 230mm

Temperature range

(℃)

 Installation -5~+60
Transport&Storage -40~+70
Operation -5~+60

Fibre Colours

No. 1 2 3 4
Color Red Blue Green yellow

Module Colours

No. 1 2 3 4 5 6 7 8 9 10 11 12
Color Red Blue Green Yellow Violet White Orange Gray Brown Light Green aqua pink
No. 13 14 15 16 17 18 19 20 21 22 23 24
Color Red Blue Green Yellow Violet White Orange Gray Brown Light Green aqua pink
No. 25 26 27 28 29 30 31 32 33 34 35 36
Color Red Blue Green Yellow Violet White Orange Gray Brown Light Green Aqua Pink


All Dielectric Micro Tube Building Vertical G652D Fiber Optic WireAll Dielectric Micro Tube Building Vertical G652D Fiber Optic WireNote:Othertypes of fiber can be provided according to the customer’s demands.


Our service

1, Product consulting service
2, Cost-saving advice
3, Fast response speed to needs
4, Professional and complete reference documents
5, Safe and cheap transportation solutions
6, 7*24 Hours After Sales Service
