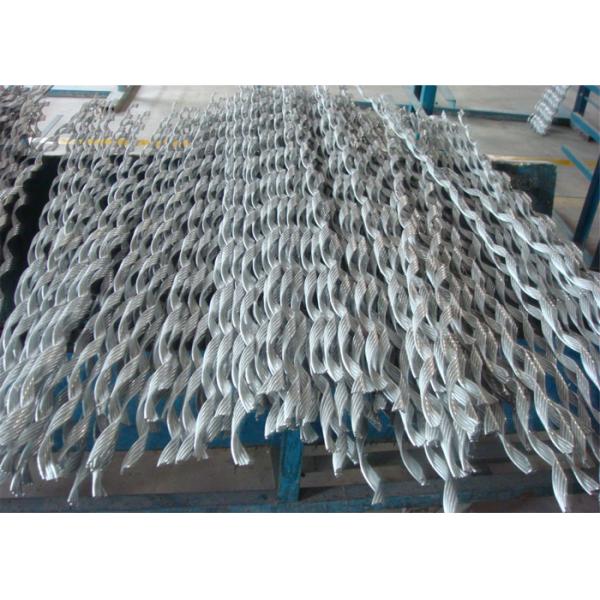

200M Long Span Preformed Armor Rods , ADSS Suspension Clamp
200M Long Span Preformed Armor Rods , ADSS Suspension Clamp
200M Long Span Preformed Armor Rods , ADSS Suspension Clamp
200M Long Span Preformed Armor Rods , ADSS Suspension Clamp
Specifications
Brand Name :
HC , OEM
Model Number :
AXQ1110 , AXQ1330 , AXQ1550
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C,
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum , Aluminum Clad Steel , Galvanized Steel
Dia. Range :
8mm-20mm
Span :
More Than 200 M Span
Color Label :
Green , Black , Red , Blue
Holding Strength :
20Kn-100Kn
Length :
1100MM-3000MM
Description

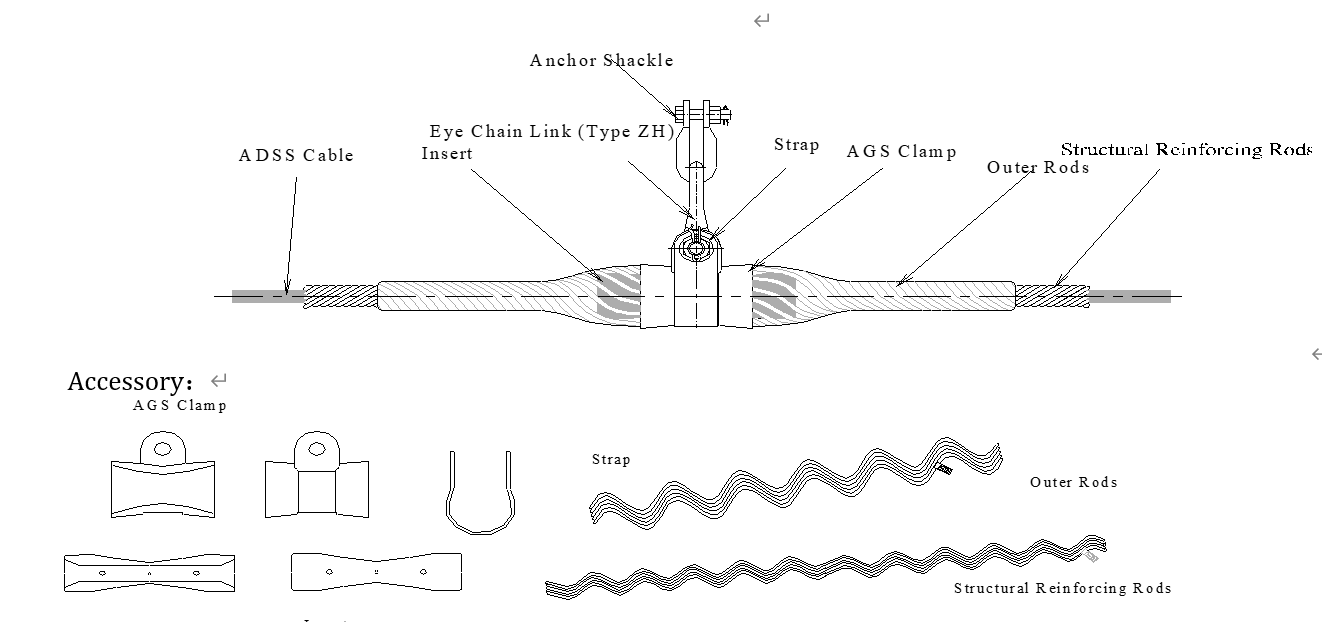

Long Span Suspension set For ADSS Fiber Calbe Fittting

Instruction:

Material:Aluminum alloy rod Insert: hylene-Propylene-non-conjugated Diene Rubber

Specification:The Long Span Suspension Set falling load will be not less than 70KN, and the grip strength of the clamp is bigger than 10%-20% of the rated tensile strength .

200M Long Span Preformed Armor Rods , ADSS Suspension Clamp


Model

Available Dia. of Cable(mm)

 Length of Outer Rods (mm)

Length of endothecium’s

(mm)

 Weight(kg) Universal Scheme
Available Span(m)
AGS Clamp Link Fittings
AXY 0960 300 9.0-9.6 1060 1500 1.45

Referrence

Table 16.3

 ZH-7 U-7 200/300
AXY 1010 300 9.7-10.1 1060 1500 1.45 ZH-7 U-7 200/300
AXY 1060 300 10.2-10.6 1060 1500 1.51 ZH-7 U-7 200/300
AXY 1110 300 10.7-11.1 1060 1500 1.51 ZH-7 U-7 200/300
AXY 1160 300 11.2-11.6 1080 1540 1.63 ZH-7 U-7 200/300
AXY 1170 300 11.7-11.7 1080 1540 1.71 ZH-7 U-7 200/300
AXY 1200 300 11.8-12.0 1160 1680 1.86 ZH-7 U-7 200/300
AXY 1270 300 12.1-12.7 1160 1680 1.86 ZH-7 U-7 200/300
AXY 1290 300 12.8-12.9 1160 1680 2.04 ZH-7 U-7 200/300
AXY 1360 300 13.0-13.6 1250 1800 2.21 ZH-7 U-7 200/300
AXY 1410 300 13.7-14.1 1250 1800 2.21 ZH-7 U-7 200/300
AXY 1430 300 14.2-14.3 1250 1800 2.21 ZH-7 U-7 200/300
AXY 1450 300 14.4-14.5 1250 1800 2.32 ZH-7 U-7 200/300
AXY 1510 300 14.6-15.1 1250 1800 2.40 ZH-7 U-7 200/300


200M Long Span Preformed Armor Rods , ADSS Suspension Clamp

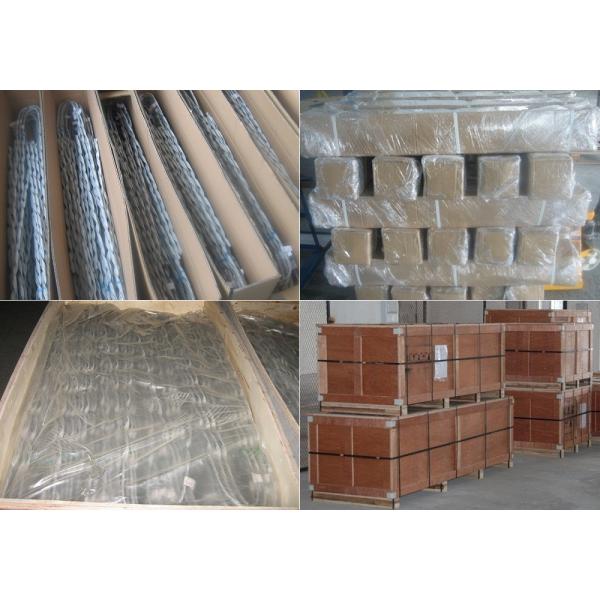

Packing: Wooden Case , Cartons , Etc

200M Long Span Preformed Armor Rods , ADSS Suspension Clamp
