Aluminum Alloy Metal Plastic ADSS Joint Box High Mechanical Strength
Aluminum Alloy Metal Plastic ADSS Joint Box High Mechanical Strength
Aluminum Alloy Metal Plastic ADSS Joint Box High Mechanical Strength
Aluminum Alloy Metal Plastic ADSS Joint Box High Mechanical Strength
Specifications
Brand Name :
HC , OEM
Model Number :
AJS 02 012-H , AJS 04 096-H*
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum Alloy , Plastic
The maximal capacity :
96 cores
Usage :
OPGW , ADSS Fiber cable
Install location :
Pole , tower
Advantage :
Great Resisting
Fiber Type :
Not Less Than 144
Description

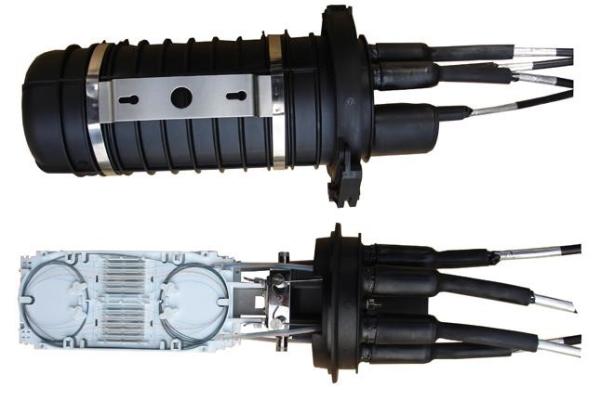

Aluminum Alloy Metal and Plastic Joint Closure

Alumium Alloy Metal and Plastic Joint Closre with high mechanical strength, good airproof performance and excellent corrosion resistance. Having been sealed with sealing ring and silicone, it could be opened, expansed, fixed, and connected repeatedly.The maximal capacity is 144 core. when the microbend fiber loss is not larger than 0.01Db, and the bending radius for fiber is not less than 45mm, it need the special way for immobility, to protect the fiber.

Aluminum Alloy Metal Plastic ADSS Joint Box High Mechanical Strength

12.1 Specification of Cap-type Plastic Joint Box for Pole

Name Model Core No. Weight Remark

Input-1,output-1 for ADSS

Plastic Joint Box for Pole

 AJS 02 012-H* 12 1.8
AJS 02 024-H* 24 1.8
AJS 02 036-H* 36 1.8
AJS 02 048-H* 48 1.8
AJS 02 072-H* 72 1.8
AJS 02 096-H* 96 1.8

Input-2,output-2 for ADSS

Plastic Joint Box for Pole

 AJS 04 012-H* 12 1.8 Also Suitable for input-2 ,output-1
AJS 04 024-H* 24 1.8
AJS 04 036-H* 36 1.8
AJS 04 048-H* 48 1.8
AJS 04 072-H* 72 1.8
AJS 04 096-H* 96 1.8

Specification of Plastic Joint Box for Tower

Name Model Core No. Weight(kg) Remark

Input-1,output-1 for ADSS

Plastic Joint Box for Tower

 AJS 02 012-T 12 1.8
AJS 02 024-T 24 1.8
AJS 02 036-T 36 1.8
AJS 02 048-T 48 1.8
AJS 02 072-T 72 1.8
AJS 02 096-T 96 1.8

Input-2,output-2 for ADSS

Plastic Joint Box for Tower

 AJS 04 012-T 12 1.8 Also Suitable for input-2 ,output-1
AJS 04 024-T 24 1.8
AJS 04 036-T 36 1.8
AJS 04 048-T 48 1.8
AJS 04 072-T 72 1.8
AJS 04 096-T 96 1.8

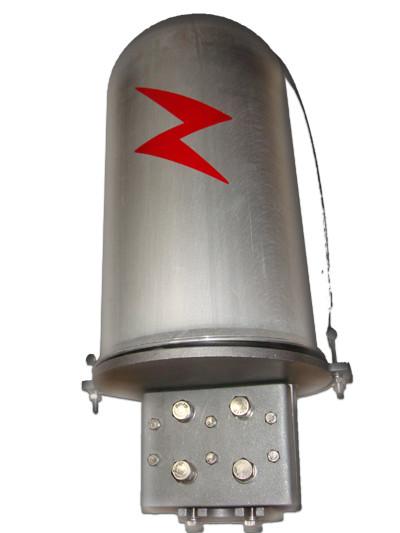

12.3 Specification of Metal Joint Box

Name Model Weight(kg) Material Install Location
Cap-type Metal Joint Box for Pole PJJ N1N2-Dndn-G 6.7 aluminum alloy for pole
Cap-type Metal Joint Box for Tower PJJ N1N2-Dndn-T 6.7 aluminum alloy for tower

Instruction:

N1—port no. Max.:5 pcs N2—core no. of cable. Max:144 core DN—insert dia. Of cable dn—out dia. Of cable G-for pole T—for tower

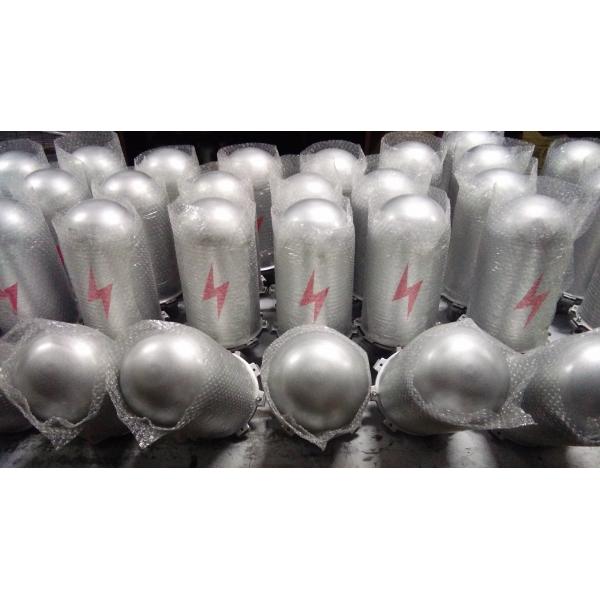

Packing: wooden case , Carton , Etc
