1x16 Self Supporting Outdoor Fiber Optic Cable GYTC8S
1x16 Self Supporting Outdoor Fiber Optic Cable GYTC8S
1x16 Self Supporting Outdoor Fiber Optic Cable GYTC8S
1x16 Self Supporting Outdoor Fiber Optic Cable GYTC8S
Specifications
Brand Name :
HC , OEM
Model Number :
G.652D
Certification :
CE , SGS , ISO2001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Size :
1*16
Fiber Model :
G.652D
Weight :
94kgs-103kgs
Cable Dia :
6.3*14.6
Cable Weight :
94kgs , 96kgs
Under Max Tension :
20.0×Cable-φ
Description

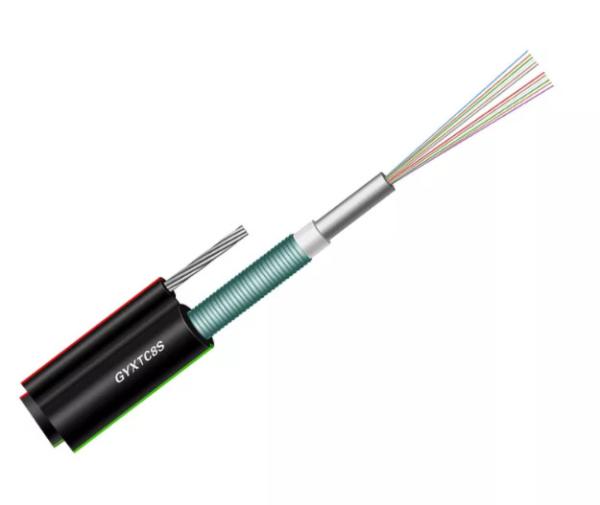

1x16 self-supporting outdoor fiber optic cable

GYXTC8S Fiber Optical Cable

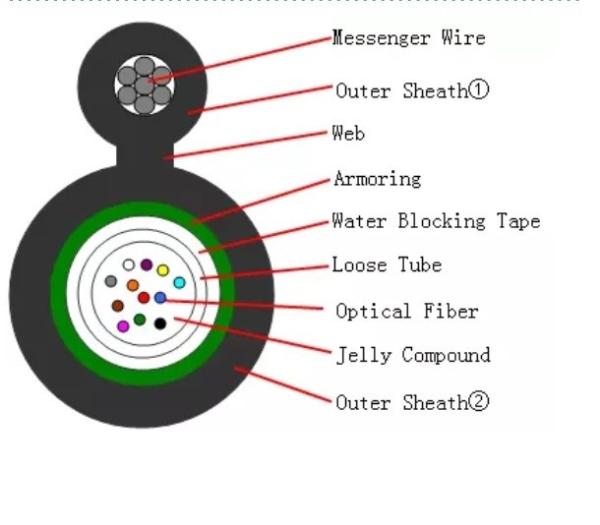

GYTC8S is a typical self-supporting outdoor fiber optic cable. It's suitable for aerial applications while its nice moisture resistance performance and crush resistance performance are suitable for duct and buried method. The mental strength member is made up of stranded wires as the supporting part that are completed with a polyethylene (PE) sheath to be figure 8 structure.
Corrugated steel tape armored and PE outer sheath provide the crush resistance and gun shot resistance features. As the central strength, the steel-wire strength member improves the tensile strength. In addition, it is surrounded by the loose tube and water blocking system.

Technical Data

No. of fiber 4 6 8 12 24
Fiber Model G.652D
Loose Tube Material PBT
Diameter(±0.06)mm 1.8 2.0 2.8
Thickness(±0.03)mm 0.28 0.3 0.4
Water Blocking Layer(Material) Water Blocking Tape
Armoring Material Steel Strip
Thickness(+0.03)mm 0.20
Messenger Wire Material Galvanized steel strand
Size(±0.05)(mm) R7×0.9
Web Material MDPE
Diameter(±0.5)mm 2.0*3.0
Outer Sheath① Material MDPE
Thickness(±0.1)mm 1.3
Outer Sheath② Material MDPE
Thickness(±0.2)mm 1.5
Cable Diameter(±0.2*±0.5)mm (W×H) 6.3*14.6 6.5*14.8 7.1*15.4
Cable Weight(±5)kg 94 96 103
Min. Without Tension 10.0×Cable-φ
Bending radius Under Maximum Tension 20.0×Cable-φ
Temperature range
(℃)		 Installation -20~+60
Transport&Storage -40~+70
Operation -40~+70
