CE SGS OPGW Suspension Clamp Aluminium Alloy Rods
CE SGS OPGW Suspension Clamp Aluminium Alloy Rods
CE SGS OPGW Suspension Clamp Aluminium Alloy Rods
CE SGS OPGW Suspension Clamp Aluminium Alloy Rods
Specifications
Brand Name :
HC , OEM
Model Number :
oxy 0800 , oxy 0880
Certification :
CE , SGS , ISO2018
Place of Origin :
CHINA
MOQ :
100
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Sets Per day
Delivery Time :
7 days
Packaging Details :
Cartons , Wooden Case , Pallets
Material :
Aluminum Alloy
Type :
OPGW Fiber Cable Fittings
Color Label :
Green , Black , Red , Blue
Weight :
1.27KGS-4KGS
Length :
1100MM-3000MM
The Grip Strength :
The grip strength of the clamp is bigger than 24% of the rated tensile strength
Description

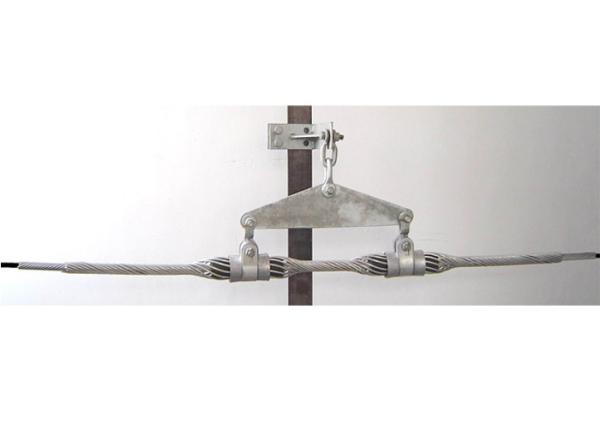

OPGW Fiber Cable Double Suspension clamp

CE SGS OPGW Suspension Clamp Aluminium Alloy Rods

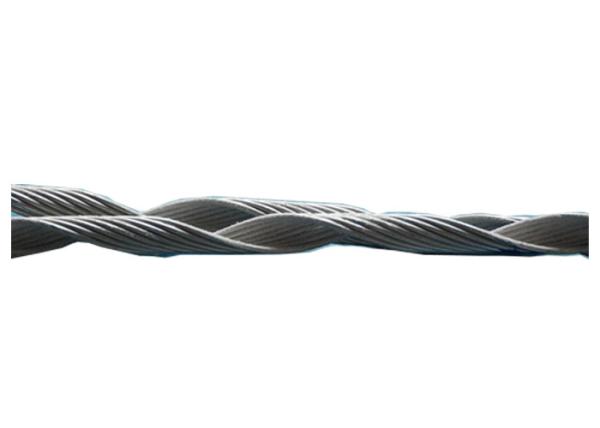

1, Material : Aluminium Alloy Rods

2, For Medium And Long Span

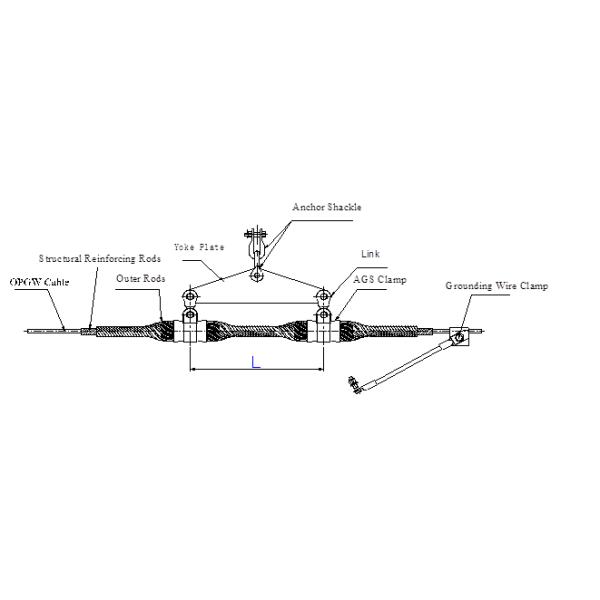

3. Specification of suspension set:

Model Cable Dia. Range (mm) Length of Structural Reinforcing Rods(mm) Length of Outer Rods(mm)

Weight

(kg)

Color

Code
OXS 0800 7.4-8.0 2100 1600 1.77 Blue
OXS 0880 8.1-8.8 2100 1600 1.91 Green
OXS 0960 8.9-9.6 2200 1600 2.03 Yellow
OXS 1010 9.7-10.1 2200 1600 2.03 Black
OXS 1060 10.2-10.6 2200 1600 2.12 White
OXS 1110 10.7-11.1 2200 1600 2.12 White
OXS 1160 11.2-11.6 2200 1600 2.27 Blue
OXS 1170 11.7-11.7 2300 1700 2.49 Green

Specification of suspension set:(The grip strength of the clamp is bigger than 24% of The preformed dead end clamp are the first to offer the cabled loop, a feature that provides more durability, easier tensioning and adaptability to multiple guyi

The Max. unilateral angle of the single suspension will be 15º－18º, For double suspension will be 30º－36º.

CE SGS OPGW Suspension Clamp Aluminium Alloy Rods

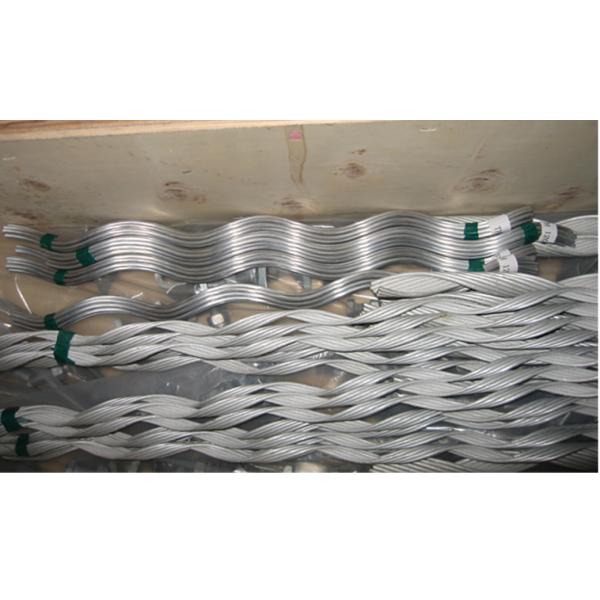

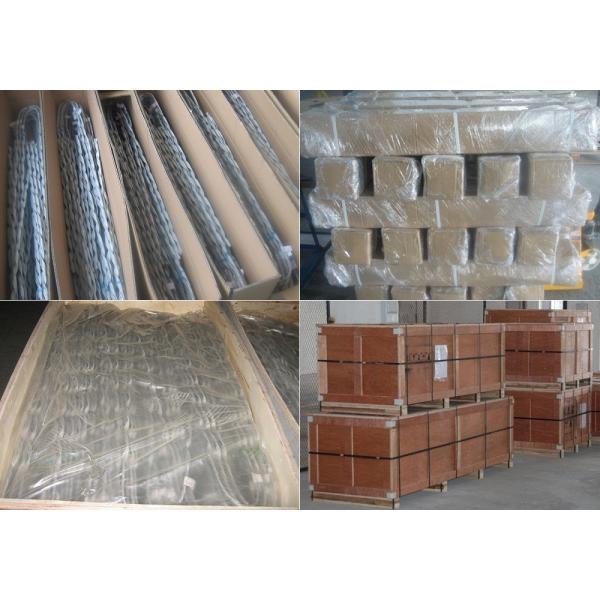

Packing: Wooden case , Carton Etc.

CE SGS OPGW Suspension Clamp Aluminium Alloy Rods
