H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
Specifications
Model Number :
6361
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
by quote
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10,000m2
Delivery Time :
30days
Packaging Details :
Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Backing Material :
E-fiber Glass Cloth
Total Thickness :
180 micron
Adhesive Type H-Class :
High-Temp Silicone
Thermal grade :
H class
Operating Temperature H-Class :
-30°C to +180°C
Breakdown Voltage H-Class :
≥2.5kV
Tensile strength :
≥210N/10mm
Adhesion strength :
≥3.8N/10mm
Description

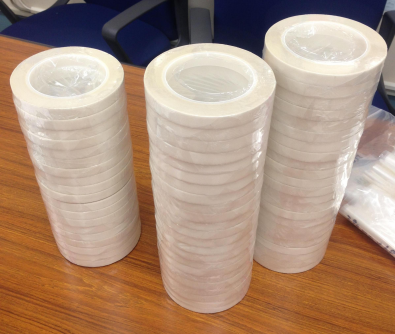

H Class Fiberglass Cloth Tape E-glass Fiber Cloth Backing For Insulation
This fiberglass cloth tape features an E-glass fiber cloth backing with high-performance silicone adhesive, providing exceptional high-temperature resistance and electrical insulation properties for motors and transformers.
Technical Specifications
Total Thickness 0.180mm
Thermal Grade H Class
Adhesive Type High-Temp Silicone
Service Temperature -30~180℃
Key Advantages
  • High-Temperature and Flame-Retardant Performance
  • Electrical and Mechanical Strength
  • Reliable Adhesion and Stability
Industrial Applications
  • Motor & Transformer Manufacturing
  • Battery Insulation & Safety
  • High-Temperature Operations & Protection
