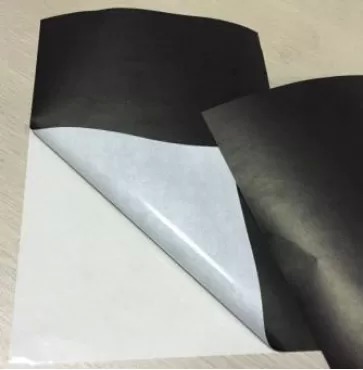

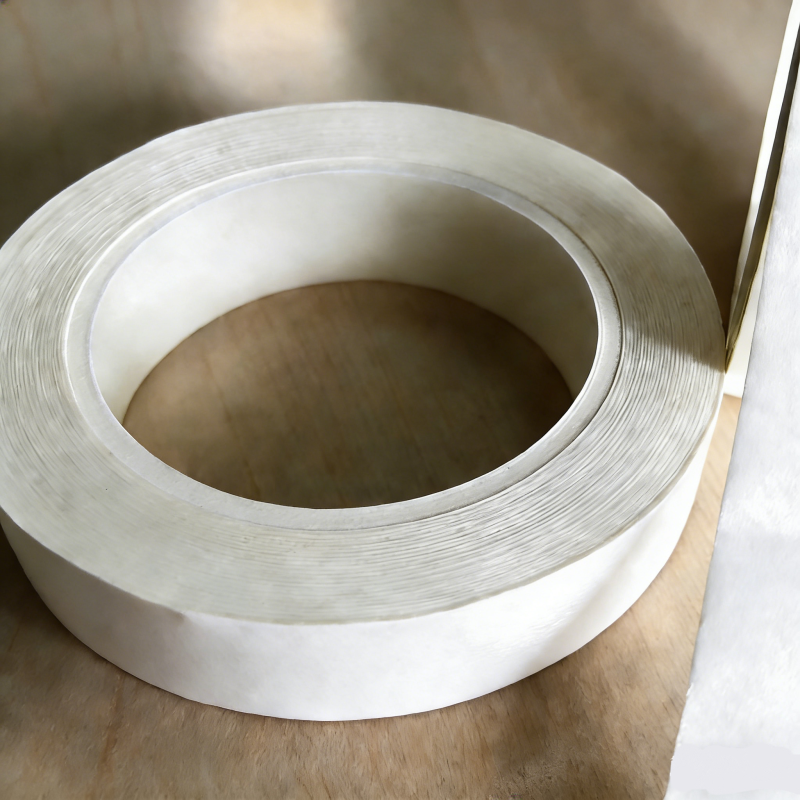

F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
Specifications
Model Number :
432
Certification :
UL
Place of Origin :
China
MOQ :
500 Square meters
Price :
quoted as per size and quantity
Payment Terms :
L/C,T/T
Supply Ability :
10000rolls per month
Delivery Time :
about 30 days
Packaging Details :
cartons and pallet
Material :
Aramid Paper
Thickness :
0.105 mm
Adhesive :
Acrylic pressure sensitive adhesive
Breakdown Voltage :
≥ 1.8kV
Tensile Strength :
≥ 30 N/10mm
Long-term Temp. Resistance :
F class/155℃
Width :
10~980mm
Length :
50m
Description
F-class Aramid Paper Tape Adhesive Insulation Tape 0.105mm Thickness
Product Description
The F-class aramid paper tape is made from high-performance aramid paper and flame-retardant acrylic pressure-sensitive adhesive. As a core material in premium electrical insulation systems, it delivers outstanding heat resistance, electrical insulation, mechanical strength, and flame retardancy, designed for demanding applications.
Technical Specifications
Parameters Value
Thickness 0.105 mm
Breakdown Voltage ≥ 1.8 kV
Tensile Strength ≥ 30 N/10mm
Long-term Temperature Resistance F class/155℃
Advantages

  • High-Temperature Resistance & Safety: Capable of long-term stable performance at 155°C (Class F rated) without melting, ensuring electrical safety in high-heat environments.


  • Electrical Insulation & Flame Retardancy: Offers high dielectric strength to prevent electrical breakdown, and is self-extinguishing to comply with stringent fire safety standards.


  • Chemical Resistance & Eco-Friendly Design: Resistant to solvents, oils, and corrosive substances; halogen-free, non-toxic, and free from harmful emissions for safe and environmentally responsible use.

Applications

  • Coil End Wrapping: Provides reliable Class F insulation protection for motor and transformer winding ends, ensuring safe operation in high-temperature environments.

  • Battery and Electronic Component Insulation: With chemical-resistant properties, it effectively protects lithium batteries and precision electronic components, extending service life.

  • Specialty Coil Wrapping: Particularly suitable for high-voltage transformers, high-intensity discharge lamps, and other demanding electronic transformer winding insulation applications.
