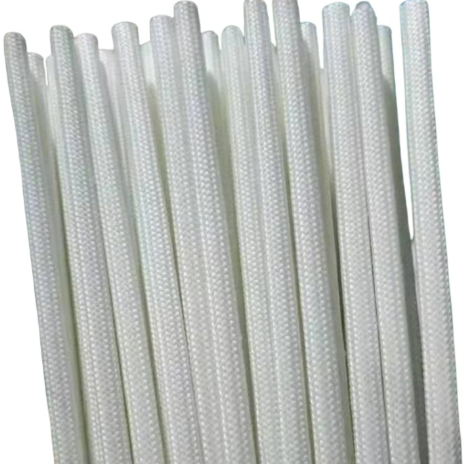

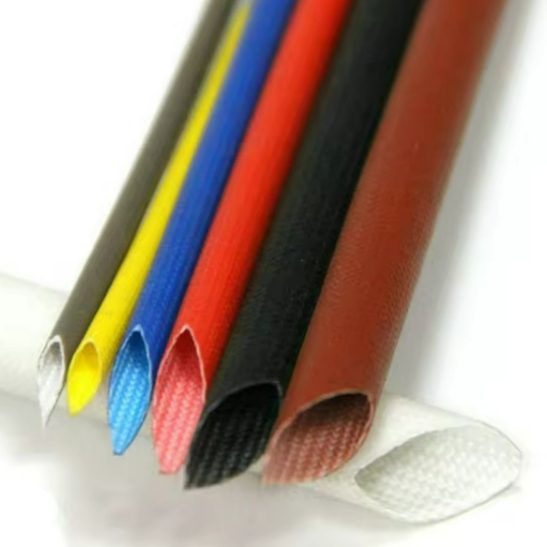

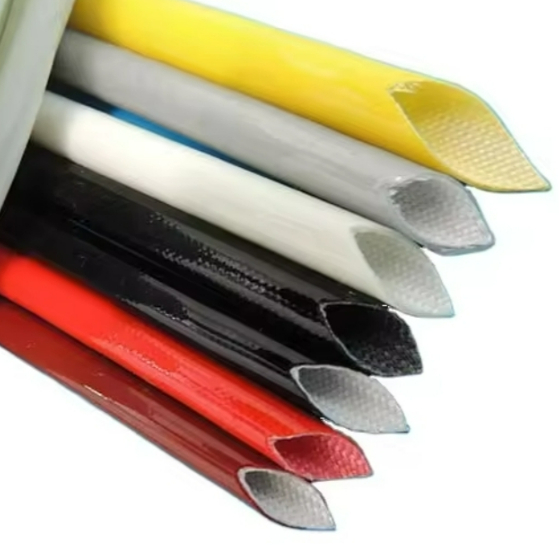

Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Glass Fibre Insulating Sleeve with Vw-1 Flammability and Aging Test 260℃ 72h for Horizontal Flame Test ≤30S
Specifications
Brand Name :
UN.TEX
Certification :
UL
Place of Origin :
China
MOQ :
2000m
Price :
quoted as per size and quantity
Payment Terms :
T/T
Supply Ability :
200000m per month
Delivery Time :
about 15 days
Packaging Details :
cartons
Horizontal Flame Test :
≤30S
Aging Test :
260℃ 72h, No Cracking
Application :
Electrical Insulation
Product Name :
Glassfiber Flame Retardant Sleeving
working temp. :
-40~ 200℃
BDV :
1.5/2.5/4/7KV
O.D. :
0.5~25mm
Roll Length :
200m/100m/50m/25m Based On OD Sizes
Insulation Resistance :
Excellent
Heat Resistance :
Excellent
Description
Glass Fibre Insulating Sleeve For High-Temperature Resistance
Description

The insulating sleeve is a tubular jacketing material designed to sheath wires, cables, conduits, and similar components. It provides electrical insulation, mechanical safeguarding, and environmental sealing. Fabricated from silicone varnished glass fiber, these sleeves are flexible and easy to install, enabling adaptation to confined spaces. Widely employed in electronics, electrical systems, and the automotive and aerospace industries to ensure circuit safety and reliability.

Technical Parameters
Product Name: Glass Fibre Insulating Sleeve
Material: Silicone Varnished Glass Fiber
Flammability: Vw-1
Horizontal Flame Test: ≤30S
Aging Test: 260℃ 72h, No Cracking
Temperature Endurance: 265±2℃
Roll Length: 200m/100m/50m/25m Based On OD Sizes
O.D.: 0.5~25mm
Application: Electrical Insulation
Advantages
  • Excellent Electrical Insulation: Prevents short circuits and current leakage, ensuring operational and personnel safety.
  • Superior Mechanical Protection: Protects against abrasion, impact, and vibration to extend harness lifespan.
  • Good Environmental Resistance: Resists oils, chemicals, moisture, and UV exposure for reliability in harsh conditions.
  • High-Temperature & Flame Retardancy: Features heat-resistant and self-extinguishing properties to minimize fire risks.
Applications
  • Protects internal wiring in appliances and insulates PCB components in consumer electronics
  • Shields engine bay harnesses, battery cables, and vehicle wiring from high temperatures, oil, and vibration
  • Insulates cable joints and busbars in transmission and distribution systems
  • Prevents signal interference and physical damage at splices in fiber optic and communication cables
