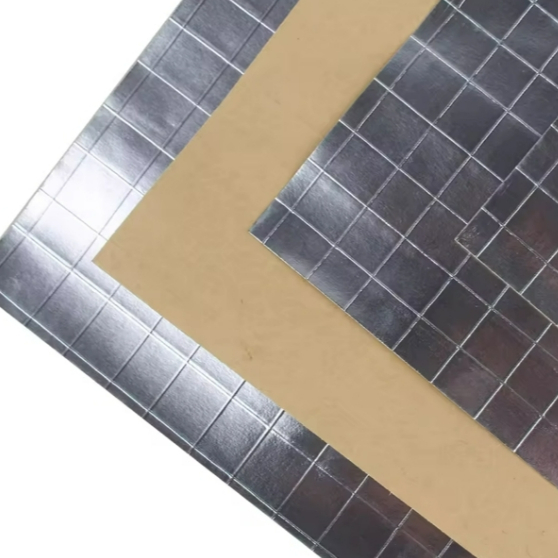

Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Foil-Scrim-Kraft Facing with 2-way scrim, 60gsm kraft paper backing, and 95gsm basis weight for insulation applications
Specifications
Model Number :
FSK-716B
Place of Origin :
China
MOQ :
10000 sq.m
Price :
USD0.5~200.00 per roll
Payment Terms :
T/T,L/C
Supply Ability :
50000 sq.m
Delivery Time :
about 30 working days
Packaging Details :
pallet
Foil thickness :
7 um
Enhanced :
2-way scrim
Backing Outer :
60gsm kraft paper
Basis Weight :
95gsm
Permeance(WVTP) :
5.75 ng/N.s
Tensile Strength-MD :
130 N/25mm
Tensile Strength-XD :
70 N/25mm
Burst Strength :
30 N/c㎡
Reinforcing-MD :
12.5mm spacing
Reinforcing-XD :
12.5mm spacing
Dimensional Stability :
Less than 0.5%
Emissivity :
0.03
Description

Product Description:


The commercial grade Foil-Scrim-Kraft (FSK) Facing, engineered with a reinforced two-way scrim embedded between a reflective foil and a durable 60gsm Kraft paper backing. This composite structure provides a robust, tear-resistant barrier that effectively retards vapor transmission and offers low emissivity for superior thermal reflectivity. It is primarily employed as a facing and vapor barrier in HVAC and building insulation systems.



Facing Composition:


Facing Composition Description
Aluminum Foil 7 micron
2-way Fiberglass Scrim 12.5×12.5mm
Adhesive Polyethylene
Kraft 60gsm



Typical Physical Properties:


Physical Properties Value
Basis Weight (g/㎡) 95
WVTR (ng/N.s) 5.75
Tensile Strength - MD (N/25mm) 130
Tensile Strength - XD (N/25mm) 70
Burst Strength (N/c㎡) 30



Advantages:

  • Exceptional Strength & Durability
    · Reinforced with a sturdy scrim to resist tearing, puncturing, and stretching.
  • Advanced Thermal & Moisture Protection
    · Features a low-emissivity foil surface that reflects radiant heat, enhancing insulation performance.
    · Serves as an effective vapor barrier to prevent moisture damage.
  • Simple & Quick Installation
    · Kraft paper backing ensures strong adhesion to a variety of surfaces.
    · Flexible and easy to cut, shape, and handle on-site for efficient application.


Applications:

  • Facing & Vapour Barrier: Ideal for use with fiberglass, rock wool, and foam duct wrap insulation.
  • Vapour Retarder: Suitable for a wide range of applications requiring effective vapour control.
  • Radiant Barrier: An excellent solution for reflecting radiant heat due to its low-emissivity surface.

Important Notes:

  • Available Roll Width: 1.0m, 1.2m, 1.25m, 1.30m, 1.35m
  • Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Log Roll: ±0.3m, Jumbo Roll ±0.5%.
  • The products should be stored at room temperature, kept away from wet and heat source.
