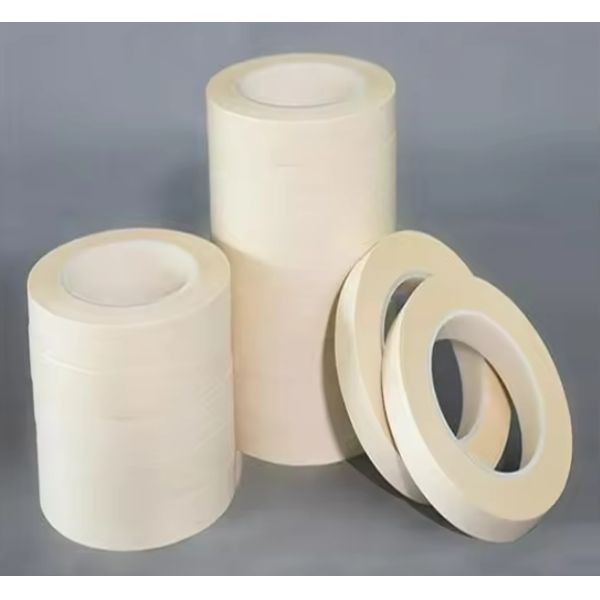

High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
High-performance Aramid Paper Adhesive Tape H Class For Insulation
Specifications
Model Number :
4332/4352
Certification :
UL
Place of Origin :
China
MOQ :
500m2
Price :
basing on size and quantity
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10000rolls
Delivery Time :
about 30 days
Packaging Details :
cartons and pallet
Material :
Aramid Paper
Thickness :
0.10/0.13mm
Adhesive :
Flame Retardant Silicone Pressure Sensitive Adhesive
Breakdown voltage :
≥ 2/2.5kV
Tensile Strength :
≥ 30/40 N/10mm
Long-term Temperature Resistance :
H class/180℃
Width :
10~980mm
Length :
50m
Description

Product Description


The H-class Insulation Aramid Paper Adhesive Tape is engineered with high-performance aramid paper and flame-retardant silicone pressure-sensitive adhesive. Designed as a core material for premium electrical insulation systems, it delivers superior dielectric strength and is optimized for high-voltage environments and applications requiring high reliability, ensuring safe and stable operation of electrical equipment.


Technical Specifications


Parameters

Value

Thickness

0.10/0.13mm

Breakdown Voltage

≥ 2.0/2.5kV

Tensile Strength

≥ 30/40 N/10mm

Long-term Temperature Resistance

H class/180℃


Advantages

  • High Dielectric Strength: Ensures reliable insulation with high breakdown voltage for maximum safety.
  • Excellent Corona Resistance: Provides superior resistance to partial discharge, ensuring durability in demanding environments.
  • H‑Class Thermal Capability: Withstands continuous 180 °C operation with outstanding thermal stability.

Applications

  • Motor & Transformer Coils: Coil end wrapping with high thermal and mechanical strength.
  • Batteries & Electronics: Chemical-resistant insulation for lithium batteries and mobile accessories.
  • Specialty Transformers: High‑voltage winding insulation for HVT, HID, and electronic transformers.
