Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Flame-retardant Glass Cloth Silicone Adhesive Insulation Tape
Specifications
Model Number :
6361
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
by quote
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10,000m2
Delivery Time :
30days
Packaging Details :
Each column shrink packed and then in export carton. Packing quantity: m2/ctn. ctn/plt,weight: kgs,
Color :
White
Backing Material :
E-fiber Glass Cloth
Total Thickness :
180 micron
Glass Cloth Thickness :
120 micron
Operating Temperature H-Class :
-30°C to +180°C
Adhesive Type H-Class :
High-Temp Silicone
Breakdown Voltage H-Class :
≥2.5kV
Tensile strength :
≥210N/10mm
Thermal grade :
H class
Usage :
Wrapping Transformer Coil Leads
Description
Product Description

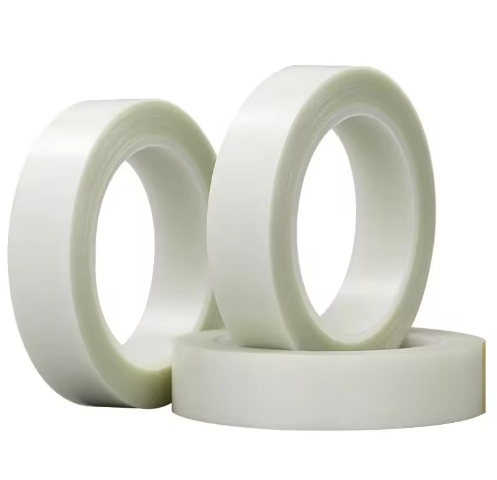

The flame-retardant white insulation tape is made of E-grade fiberglass cloth combined with silicone pressure-sensitive adhesive, with a thickness of 0.18mm and an insulation class of H. It offers excellent electrical insulation, mechanical strength, and high-temperature resistance, making it suitable for reliable insulation protection in high-temperature applications such as motors and transformers.
Technical Parameters

Parameters Value
Base Cloth Thickness
0.120±0.01mm
Total Thickness
0.180±0.01mm
BDV
≥2.5KV
Tensile strength
≥210N/10mm
Elongation
≥3%
Adhesion strength to steel plate
≥3.8N/10mm
Thermal grade
H class
Adhesive Type H-Class
High-Temp Silicone
Service Temp.
-30~180℃

Advantages
  • Excellent Heat & Flame Resistance: Withstands up to 180°C while inhibiting flame spread, ensuring safe operation in high-temperature environments.
  • High Insulation & Structural Strength: Features high breakdown voltage and tensile resistance, delivering reliable insulation and durable physical protection in demanding conditions.
  • Stable Adhesion & Long Shelf Life: Provides strong, heat-resistant bonding to steel surfaces and maintains performance for up to 12 months under standard storage.
Applications
  • Insulation for High-End Motors & Transformers: Built for Class H systems, it operates reliably at 180°C, preventing aging-related short circuits to ensure long-term equipment safety.
  • Battery Safety Enhancement: Creates multi-layer protection through tight wrapping, with specialized materials that resist electrolyte leakage and mitigate thermal runaway.
  • High-Temperature Industrial Protection: Offers thermal insulation and mechanical durability to shield critical components from heat, extending equipment lifespan.
