Specifications
Model Number :
432/452/472
Certification :
UL
Place of Origin :
China
MOQ :
500 Square meters
Price :
quoted as per size and quantity
Payment Terms :
L/C,T/T
Supply Ability :
10000rolls per month
Delivery Time :
about 30 days
Packaging Details :
cartons and pallet
Material :
Aramid Paper
Thickness :
0.105/0.13/0.18mm
Adhesive :
Acrylic pressure sensitive adhesive
Breakdown Voltage :
≥ 1.8kV/2.4kV/2.8kV
Tensile Strength :
≥ 30/45/90 N/10mm
Long-term Temp. Resistance :
F class/155℃
Width :
10~980mm
Length :
50m
Description
Product Description

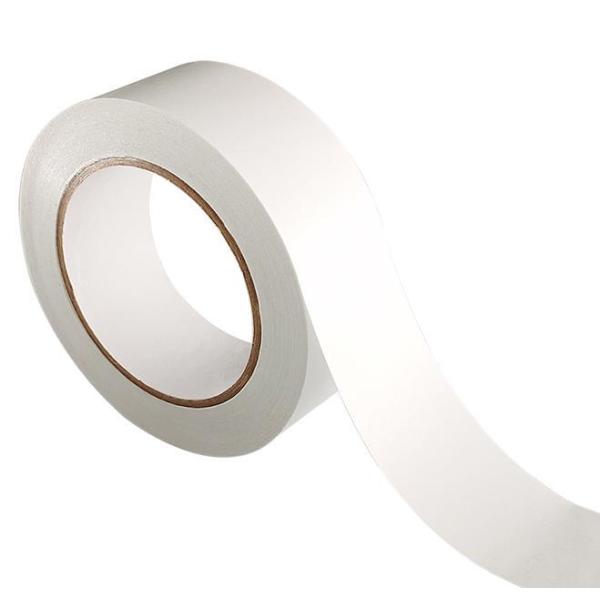

The F-class insulation aramid paper adhesive tape is constructed from high-performance aramid paper combined with a flame-retardant acrylic pressure-sensitive adhesive. As a core material in premium electrical insulation systems, it delivers exceptional heat resistance, electrical insulation, mechanical toughness, and flame retardancy, designed for demanding applications.

Technical Specifications

Parameters

Value
Thickness 0.105/0.13/0.18mm
Breakdown Voltage ≥ 1.8/2.4/2.8kV
Tensile Strength ≥ 30/45/90 N/10mm
Long-term Temperature Resistance F class/155℃

Advantages
  • Thermal Resistance: Stable at 155°C (Class F), non-melting.
  • Electrical Insulation: High dielectric strength prevents breakdown.
  • Flame Retardancy: Self-extinguishing, meets fire safety standards.
  • Chemical Resistance: Withstands solvents, oils, and corrosion.
  • Eco-Safe: Halogen-free, non-toxic, no harmful emissions.
Applications
  • Coil End Wrapping: Provides F-class insulation for motor and transformer coils.
  • Battery Insulation: Offers chemical-resistant protection for lithium batteries and electronic components.
  • Specialty Coil Wrapping: Ideal for HVT, HID, and other high-performance electronic transformers.
