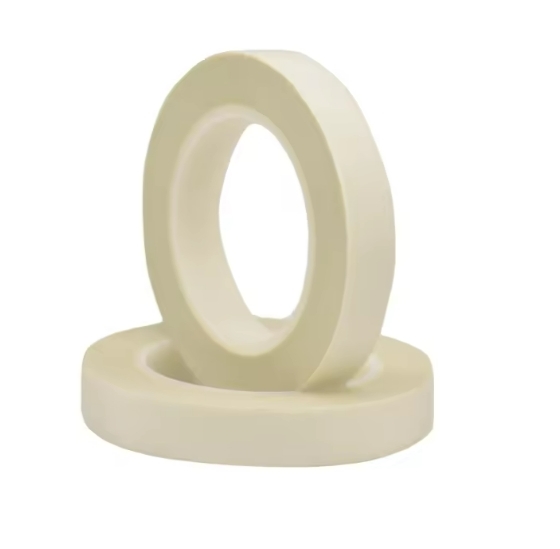

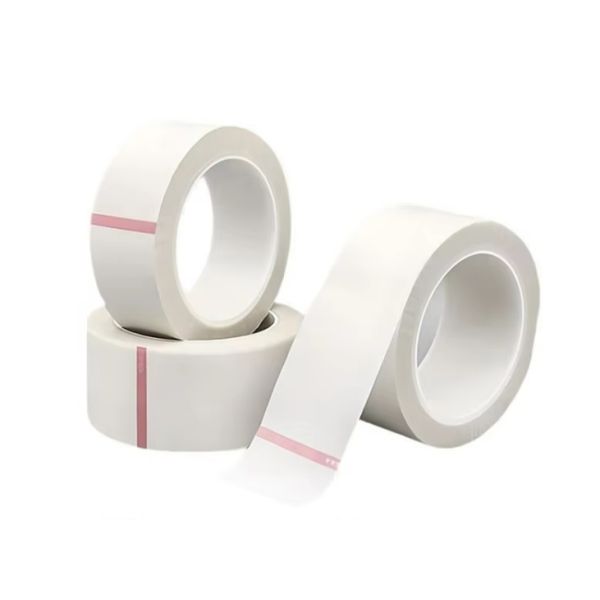

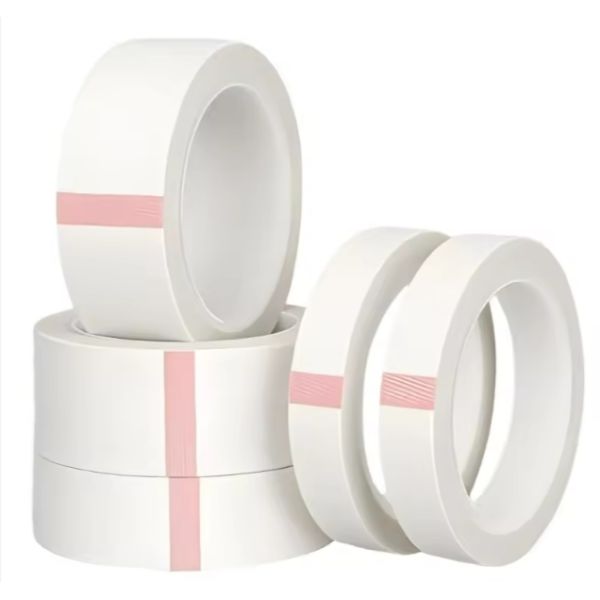

F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
F-Class Adhesive Insulation Tape Fiberglass Cloth Acrylic Adhesive Tape
Specifications
Model Number :
661
Certification :
RoHS
Place of Origin :
CHINA
MOQ :
500m2
Price :
by quote
Payment Terms :
T/T,D/P,L/C
Supply Ability :
10,000m2
Delivery Time :
30days
Packaging Details :
Each column shrink packed and then in export carton.
Backing Material :
E-fiber Glass Cloth
Backing Thickness :
120um
Total Thickness :
170um
Adhesive Type F-Class :
Acrylic Pressure-Sensitive
Tensile Strength :
≥240N/10mm
Breakdown Voltage F-Class :
≥2.0kV
Service Temp. :
-14°C ~ +160°C
Thermal Grade :
F Grade
Cut Roll :
10mm~500mm width
Roll length :
30m±0.3m
Description

Product Description


The F-class Adhesive Insulation Tape is made with an electronic-grade fiberglass cloth backing and a high-temperature resistant acrylic pressure-sensitive adhesive, with a thickness of only 0.17mm. It provides excellent electrical insulation and mechanical strength while ensuring stable performance under high temperatures.


Technical Parameters

Parameters Value

Base Cloth Thickness

0.120±0.01mm

Total Thickness

0.170±0.01mm

BDV

≥2.0KV

Tensile strength

≥240N/10mm

Elongation

≥3%

Adhesion strength to steel plate

≥4N/10mm

Thermal grade

F class

Adhesive Type H-Class

Pressure-sensitive Acrylic Adhesive

Service Temp.

-14~160℃


Advantages

  • Excellent Heat Resistance: Rated for 160°C continuous use, 180°C short-term. Maintains stability without deformation.
  • Strong Adhesion: High tensile strength, tear-resistant. Conforms to irregular surfaces and removes cleanly.
  • Reliable Insulation: 2.0kV breakdown voltage, F-class rated. Ensures electrical safety with mechanical durability.
  • Easy Handling: Unwinds smoothly without residue. 12-month shelf life in moisture-proof packaging.


Applications

  • Electrical Insulation: For tightly binding heat-resistant (Class F) components like motors and transformers.
  • Battery Insulation: Provides durable insulation for lithium-power battery packs.
  • Pipe Protection: Used for wrapping and insulating high-temperature pipelines.
  • Surface Protection: Protects irregular metal / composite surfaces with strong adhesion.
