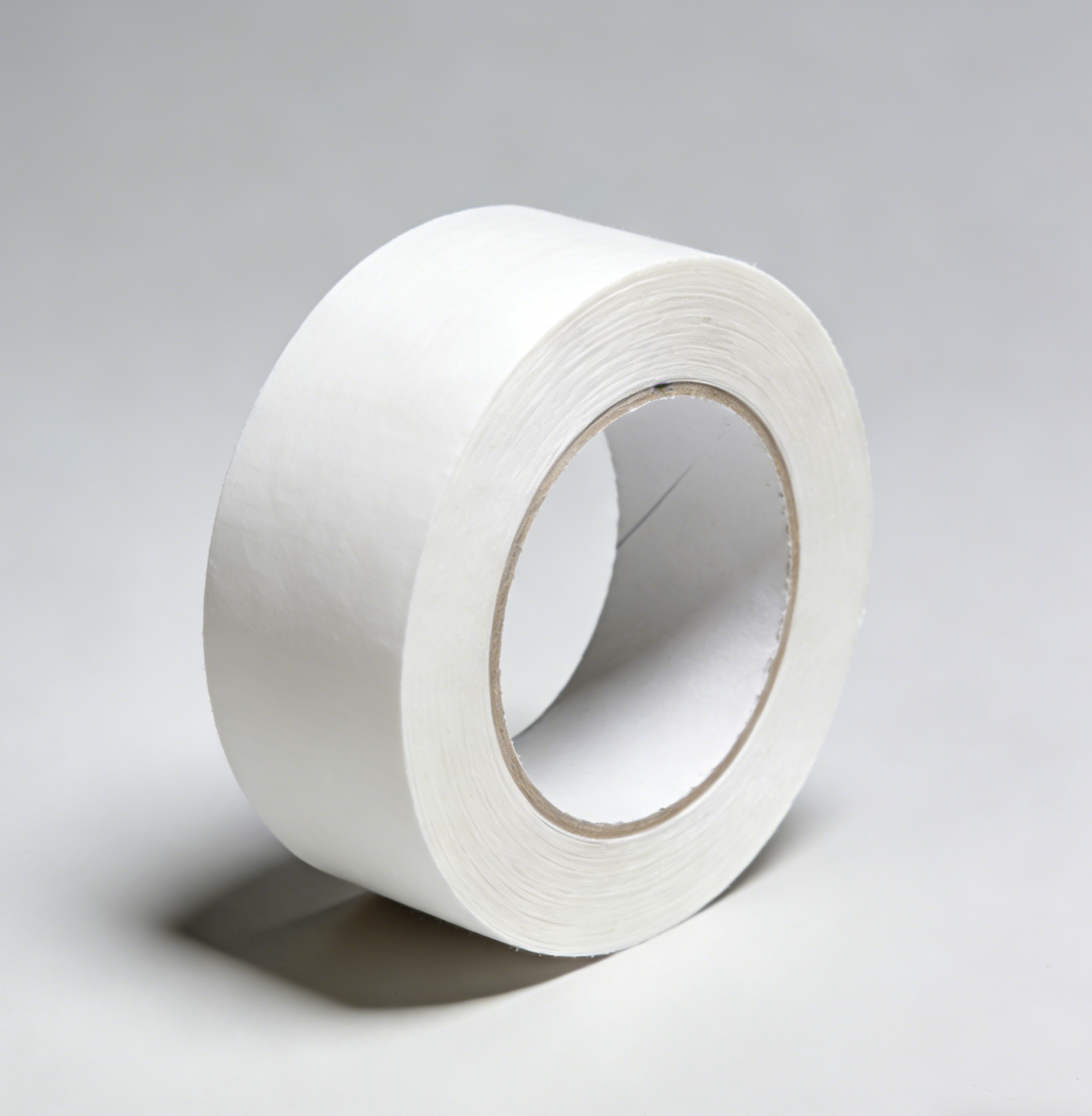

F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
Specifications
Model Number :
432/452/472
Certification :
UL
Place of Origin :
China
MOQ :
500 Square meters
Price :
quoted as per size and quantity
Payment Terms :
L/C,T/T
Supply Ability :
10000rolls per month
Delivery Time :
about 30 days
Packaging Details :
cartons and pallet
Material :
Aramid Paper
Thickness :
0.105/0.13/0.18mm
Adhesive :
Acrylic pressure sensitive adhesive
Breakdown Voltage :
≥ 1.8kV/2.4kV/2.8kV
Tensile Strength :
≥ 30/45/90 N/10mm
Long-term Temp. Resistance :
F class/155℃
Width :
10~980mm
Length :
50m
Description
F-class Aramid Paper Insulation Tape With Flame-retardant Acrylic Adhesive
Product Description
The F-class aramid paper insulation tape combines high-performance aramid paper with a flame-retardant acrylic adhesive. Engineered for critical electrical insulation systems, it delivers superior heat resistance, dielectric strength, mechanical durability, and flame-retardant properties—ideal for the most demanding applications.
Technical Specifications
Parameters Value
Thickness 0.105/0.13/0.18mm
Breakdown Voltage ≥ 1.8/2.4/2.8kV
Tensile Strength ≥ 30/45/90 N/10mm
Long-term Temperature Resistance F class/155℃
Advantages
  • Exceptional Thermal & Electrical Performance: Stable at 155°C (Class F, non-melting) with high dielectric strength to prevent electrical failure.
  • Inherent Safety & Durability: Self-extinguishing (meets fire safety standards), resistant to solvents, oils, and corrosion.
  • Environmental Responsibility: Halogen-free, non-toxic, and emits no harmful substances.
Applications
  • Motor & Transformer Coils: Ensures F-class insulation integrity in coil end wrapping for enhanced operational durability.
  • Battery Systems: Safeguards lithium batteries and sensitive electronic components with chemical-resistant insulation.
  • High-Performance Electronics: Delivers dependable winding insulation for HVT, HID, and other specialty transformers.
