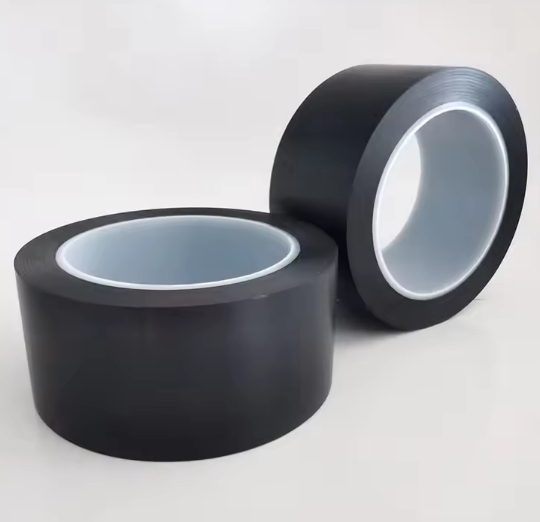

Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Specifications
Brand Name :
UN.Tex
Place of Origin :
China
Price :
based on size and quantity
Payment Terms :
T/T
Delivery Time :
about 15 days
Packaging Details :
Cartons and pallets
Total Thickness :
128~130um
Initial tack :
40 mm/14#
180°Peel Strength :
420 g/25mm
Breakdown Voltage :
6000 V
Longitudinal Tensile Strength :
5.78 Kgf/25mm
Transverse Tensile Strength :
5.03 Kgf/25mm
Longitudinal Elongation :
170%
Lateral Elongation :
155%
Description
Flame Retardant PVC Tape Self-Extinguishing Electrical Insulation For Wire Harness & Cable Protection
Flame-retardant PVC tape is made from a soft flame-retardant polyvinyl chloride film coated with a high-performance pressure-sensitive adhesive. It offers excellent electrical insulation and self-extinguishing properties. In high-temperature or short-circuit fire conditions, it effectively prevents flame spread, providing a safe and reliable protective solution for wire bundling, cable sheathing, and internal fixation of electronic equipment.
Technical Parameters
Parameter Value
Total Thickness 128~130μm
Breakdown Voltage 6000V
Key Advantages
  • Self-Extinguishing for Enhanced Safety: Meets the industry's highest flame-retardant standards. It quickly stops burning after the fire source is removed, with no dripping, significantly reducing secondary fire risks.
  • Stable Insulation and Voltage Resistance: Features high volume resistivity and excellent dielectric strength. It resists aging over long-term use and is non-corrosive to copper conductors.
  • Flexible and Easy to Apply: The base material is soft and moderately stretchable, making it less prone to breakage when wrapping around complex shapes. The adhesive layer offers high initial tack, and the tape can be torn by hand, improving wrapping efficiency.
Applications
  • Wire Bundling in Electronics and Appliances: Ideal for fixing wire harnesses inside switching power supplies, adapters, televisions, and other devices to prevent fires caused by short circuits.
  • High- and Low-Voltage Harnesses in New Energy Vehicles: Used for wrapping wire harnesses in high-temperature areas such as battery packs and motor controllers, meeting strict flame retardancy and temperature resistance requirements for vehicles.
  • Industrial Equipment and Communication Cabinets: Commonly used for wrapping cable terminals, junction box interfaces, and fiber optic reinforcement components where fire protection is critical.
