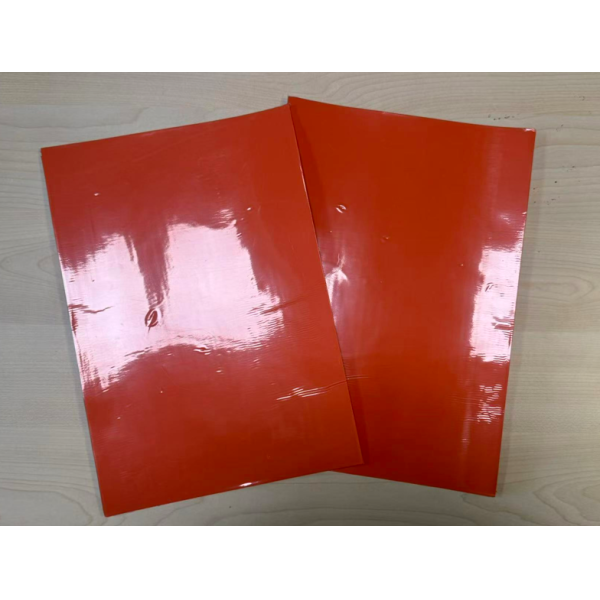

Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Specifications
Thickness :
0.4-2.0 mm
Payment Terms :
T/T
Delivery Time :
About 20 days
Fire rating :
UL94 V-0
Packaging Details :
cartons and pallets
Place of Origin :
China
Color :
Orange red/ Blue/ Black
Brand Name :
UN.Tex
Coating :
Silicone Rubber
MOQ :
100m2
Base Material :
Fiberglass Cloth
Adhesion after curing :
≥ 5N
Dielectric Breakdown Voltage :
≥ 4 kV
Width :
300mm~1200mm
Price :
based on size and quantity
Continuous operating temp. :
-40~200℃
Tensile Strength :
≥ 60 Kgf/cm
Description
Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
Product Introduction
Uncured Silicone Coated Fiberglass Cloth is manufactured from fiberglass fabric coated with silicone rubber in a semi-cured state. Combining the strength of fiberglass with the heat resistance and insulation properties of silicone, it is widely used in battery heating systems, industrial heating blankets, drum heaters, and electrical insulation applications.
Product Specifications
Base Material Fiberglass Cloth
Coating Silicone Rubber
Thickness 0.4-2.0 mm
Flame Rating UL94 V-0
Key Features
  • Heat Resistance: Designed for continuous operating temperatures from -40°C to 200°C, suitable for industrial heating and thermal management systems.
  • Electrical Insulation: Provides reliable insulation performance with dielectric strength ≥4 kV.
  • Flame Retardancy: UL94 V-0 rated construction helps improve safety in electrical and heating applications.
  • Moisture and Corrosion Resistance: Silicone coating offers protection against moisture, corrosion, and harsh industrial environments.
Applications
  • EV Battery Pack Heating
  • Energy Storage System Heating
  • Drum and Barrel Heaters
  • Industrial Heating Blankets
  • Electrical Insulation Components
  • Electric Appliances and Heating Equipment
Customization Options
Custom production is available for:
  • Thickness
  • Width
  • Roll Length
  • Double-Sided Semi-Cured Cloth
  • Double-Sided Cured Silicone Cloth
Frequently Asked Questions (FAQ)
What is uncured silicone coated fiberglass cloth used for?
It is commonly used in battery heating, industrial heating equipment, and electrical insulation systems.
What temperature can it withstand?
The material is designed for continuous operation from -40°C to 200°C.
Is it flame retardant?
Yes. The product meets UL94 V-0 flame retardant requirements.
Related Keywords
  • Uncured Silicone Fiberglass Cloth
  • Semi Cured Silicone Cloth
  • Silicone Coated Fiberglass Fabric

Uncured Silicone Coated Fiberglass Cloth UL94 V0 for Battery Heating
