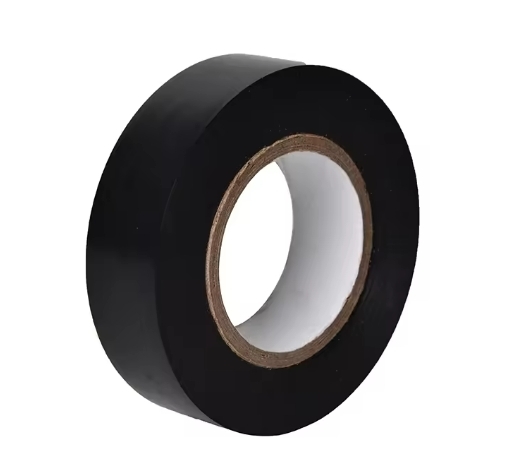

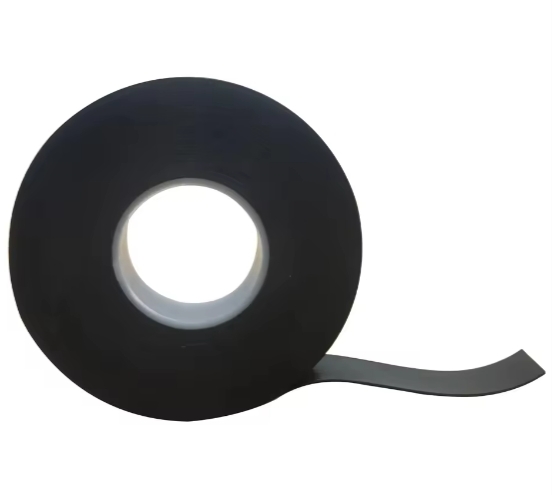

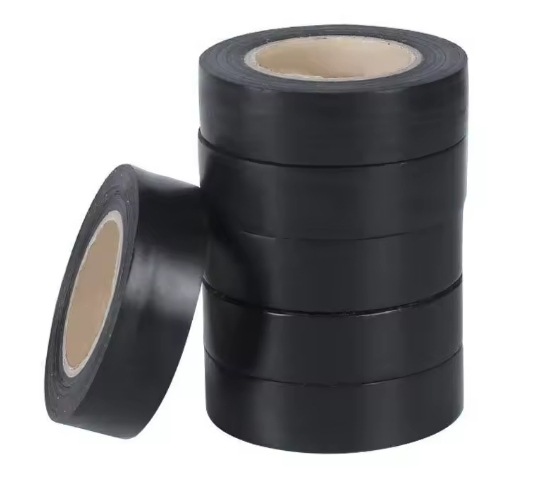

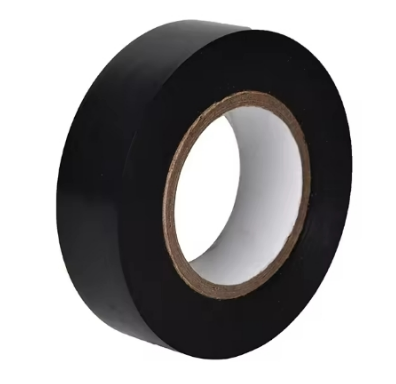

Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Specifications
Brand Name :
UN.Tex
Place of Origin :
China
Price :
based on size and quantity
Payment Terms :
T/T
Delivery Time :
about 15 days
Packaging Details :
Cartons and pallets
Total Thickness :
128~130um
Initial tack :
40 mm/14#
180°Peel Strength :
420 g/25mm
Breakdown Voltage :
6000 V
Longitudinal Tensile Strength :
5.78 Kgf/25mm
Transverse Tensile Strength :
5.03 Kgf/25mm
Longitudinal Elongation :
170%
Lateral Elongation :
155%
Description
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Product Overview

Flame-Retardant PVC Insulation Tape is manufactured using high-quality PVC substrate and rubber-based adhesive. This specialized tape features self-extinguishing properties when removed from fire sources, high dielectric strength, and exceptional weather resistance. It is ideally suited for insulation wrapping and protective fixing of various wires and cables.

Technical Parameters
Parameter Value
Total Thickness 128~130μm
Breakdown Voltage 6000V
Key Advantages
  • Flame-Retardant & Safe: Self-extinguishing when removed from fire, compliant with flame-retardant standards, significantly reducing fire risk
  • High Insulation & Voltage Resistance: Exceptional voltage withstand capability, anti-aging properties, prevents electrical leakage
  • Easy Tear & Application: Excellent adhesion, conformable wrapping characteristics, and residue-free removal
Applications
  • Insulation wrapping of wire joints in residential and commercial electrical installations
  • Fixing and protection of wiring harnesses in automobiles and electric vehicles
  • Cable sheath repair and electrical equipment maintenance
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Send your message to this supplier
Send Now

Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive

Ask Latest Price
Product Detail
Brand Name :
UN.Tex
Place of Origin :
China
Price :
based on size and quantity
Payment Terms :
T/T
Delivery Time :
about 15 days
Packaging Details :
Cartons and pallets
Contact Supplier
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive
Flame-Retardant PVC Insulation Tape With Rubber-based Adhesive

UN.Tex (Dalian) Co.,Ltd

Verified Supplier
5 Years
dalian
Since 2006
Business Type :
Exporter, Trading Company, Seller
Main Products :
Adhesive Insulation Tape, Glass Cloth Insulation Tape, Heat Resistant Insulation Tape
Total Annual :
2million-3million
Employee Number :
>100
Certification Level :
Verified Supplier
