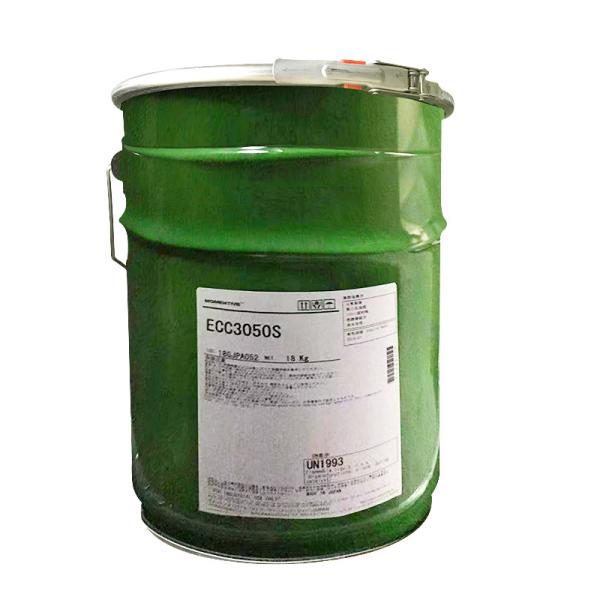

Momentive ECC3050S High Volume PCB Assembly Conformal Coating
Momentive ECC3050S High Volume PCB Assembly Conformal Coating
Specifications
Place of Origin :
USA
Price :
CN¥5,856.00/pieces >=1 pieces
Viscosity :
550 mPa·s
Tack-Free Time :
5 min
Cure Time (Room Temp) :
30 min
Cure Time (Oven) :
2 min
Hardness :
22
Volume Resistivity :
1×10⁷ MΩ·cm
Dielectric Constant :
2.60
Low Molecular Siloxane :
0.01 wt%
Description

Basic Properties

Property Unit Value Test Condition
Viscosity mPa·s 550 23°C
Tack-Free Time min 5 23°C, 50% RH, 100μm thickness
Cure Time (Room Temp) min 30 23°C, 50% RH, 100μm thickness
Cure Time (Oven) min 2 60°C, 15% RH, 100μm thickness
Hardness Shore A 22 Cured 3 days at 23°C/50% RH
Volume Resistivity MΩ·cm 1×10⁷ Cured 3 days at 23°C/50% RH
Dielectric Constant - 2.60 60Hz, cured 3 days at 23°C/50% RH
Low Molecular Siloxane wt% 0.01 D4-D10 content

Product Overview

ECC3050S is a low-viscosity, solventless silicone conformal coating that cures rapidly at room temperature to a soft, transparent rubber. It offers efficient protection for printed circuit board assemblies (PCBA) with tack-free time as short as 5 minutes. Optimized for spray or flow coating, its oven cure capability (≤60°C) reduces handling time to 2 minutes, making it ideal for high-volume production with temperature-limited components.

Key Advanced Features

  • Flame Retardancy: UL94V-0 certified (File No. E135148) to suppress flame propagation during electrical faults.
  • Low Stress: Low modulus (22 Shore A) minimizes CTE stress on sensitive components during thermal cycling.
  • Moisture Resistance: Superior adhesion ensures long-term humidity protection with ultra-low siloxane content (0.01 wt%) to prevent electrochemical migration.

Applications

  • Protects BGA chips and microprocessors in automotive ECUs against vibration, condensation, and chemicals per ISO 16750-4.
  • Ensures signal stability for MEMS sensor solder joints in harsh environments (85°C/85% RH).
  • Prevents arcing in high-voltage LED drivers while maintaining thermal management capability.
