Specifications
Brand Name :
BQZYX
Place of Origin :
China
MOQ :
2
Price :
$10.85-13.25
Interface :
PCI-E 4X
SSD Support :
M.2 PCIE, M.2 SATA, mSATA
PCIe Bandwidth :
32 Gbps
SATA Bandwidth :
6 Gbps
M.2 Lengths :
2280/2260/2242/2230mm
mSATA Size :
30x50mm
PCIe Compatibility :
2.0, 3.0, 4.0
Simultaneous SSDs :
3
LED Indicators :
3-channel read/write
Slot Compatibility :
PCI-E 4X, 8X, 16X
Included SATA Cables :
2
Heatsink Included :
2 aluminum
Heat Conducting Pads :
4 silica gel
Bracket Type :
High/Low Profile
Screw Kit :
Included
Description
Upgrade Version 3-in-1 M.2 NVME & SATA SSD to PCI-E Adapter
Advanced PCI-E adapter supporting multiple SSD formats with simultaneous operation capability.
Key Features
  • Supports PCIE M.2 SSD (NVMe or AHCI, Key-M) with PCIE 3.0 X4 32 Gbps bandwidth for 2280/2260/2242/2230mm sizes
  • Supports SATA-based M.2 SSD (Key-B / B+M) with SATA 6 Gbps bandwidth for 2280/2260/2242/2230mm sizes
  • Supports mSATA (30x50mm) with SATA 6 Gbps bandwidth
  • 3-channel SSD read/write LED indicators for status monitoring
  • Compatible with PCIe 2.0, 3.0 and PCIe 4.0 motherboards
  • Simultaneous operation of 3 SSDs (M.2 PCIE, M.2 SATA, and mSATA)
  • NVME M.2 SSD connects directly to PCIE 3.0x4 (32Gbps) without SATA cables
  • SATA M.2 and mSATA connections require SATA cables (2 included)
  • Compatible with PCI-E 4X, 8X, 16X slots (speed limited to PCI-E 4X)

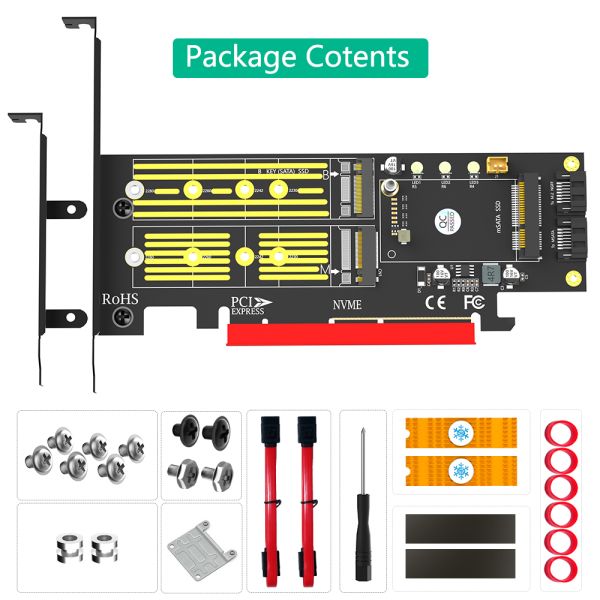

Package Contents
  • SSD Adapter Card x1
  • I/O Bracket x1 (High/Low Profile)
  • MiniCard Extender Bracket x1
  • Aluminum Heatsink x2
  • Heat Conducting Silica Gel Pad x4 (2 thick, 2 thin)
  • Silica Gel Ring x4
  • SATA Cable x2
  • Screwdriver x1
  • Screw Kit x1
