Specifications
Brand Name :
BQZYX
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$9.20-12.20
PCIe Version :
4.0
PCIe Slot :
x16
NVMe Slots :
2
Additional PCIe :
x16 (x8 Signal)
Weight :
40g

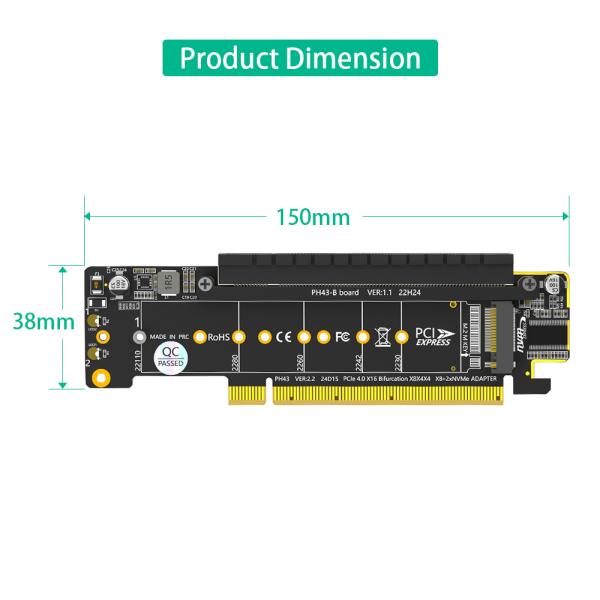

Dimensions :
18*9*2cm
SSD Sizes :
110x22mm, 80x22mm, 60x22mm, 42x22mm, 30x22mm
SSD Type :
M.2 PCI-e NVMe (M Key)
Motherboard Support :
PCIe x8x4x4 Bifurcation
LED Indicators :
Yes
Hardware RAID :
No
Soft RAID Support :
Win10
Compatible CPUs :
X299, X399, Most Server
Material :
Black
Packaging :
Electrostatic bag
Description
Specification
item
value
Place of Origin
China
Guangdong
Products Status
Used
Brand Name
BQZYX
Product name
2 NVME-PCI-E to PCI-E 16X
Color
Black
Support
NVME-PCI-E to PCI-E 16X
Weigh
45g
Use
Computer
MOQ
10 Pcs
Warranty
1 Year
sizi
18*9*2cm
packaging
Electrostatic bag
Product Description
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Dual NVMe PCIe 4.0 Adapter for M.2 SSD, 18x9cm, 1 Year Warranty
Products Description
1. Dual NVMe PCIe Adapter can add 2x M.2 NVMe SSD Slot via PCIe 4.0 x16, but also expaind extra PCIe x16 slot (x8 Signal), which
can use for expanding any other PCIe Device
2.Hardware requirement:
1. There is available PCI-e 4.0 or 3.0 x16 Slot on M/B
2. The motherboard can support PCIe x16 Bifurcation itself, and can be set as"PCI-e x8x4x4" in BIOS
3. All of the SSDs are M.2 PCI-e (M Key) NVMe SSD
4. CPU has enough channels to support

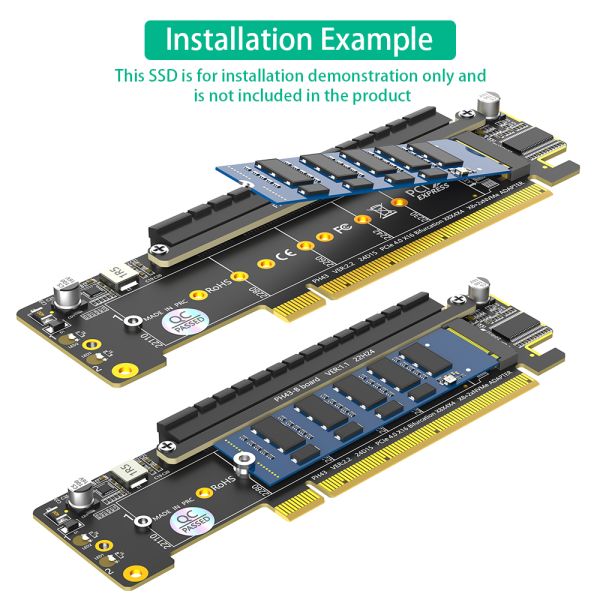

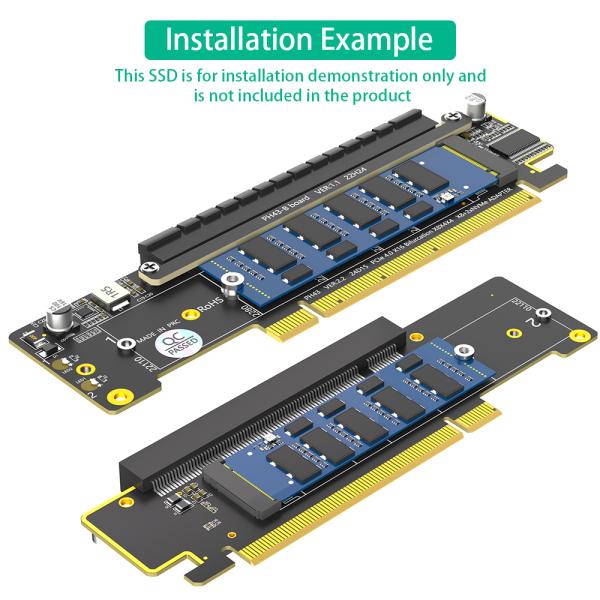

3.Compatible with M.2 PCI-e NVMe SSDs in all sizes:110x22mm, 80x22mm, 60x22mm and 42x22mm, 30x22mm; Not support any M.2
(SATA-Based B+M Key) SSD; Motherboard Compatibility: Most Server and X299, X399 can support PCIe x8x4x4 Bifurcation

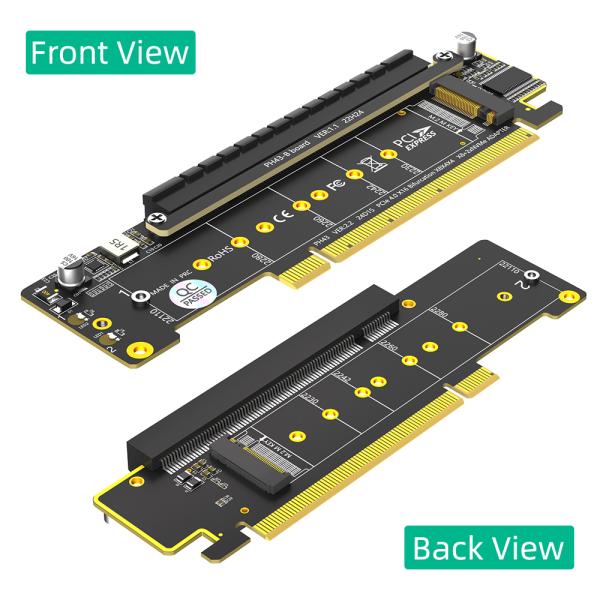

4.Upgraded Design: 1. Two Slots of NVMe SSD are on positive and negative sides. So the card is in small size, And individual LED
Indicator design will show each SSD's Working Status 2. The more PCIe x16 Slot is very useful when there is no more PCIe Slot on
motherboard
5.Please note: 1. 2-Port NVMe PCIe Adapter does not Support Hardware Raid, only supports the formation of soft raid in Win10 , or
you may build raid via Third-party Software, and 2 SSDs should be same model

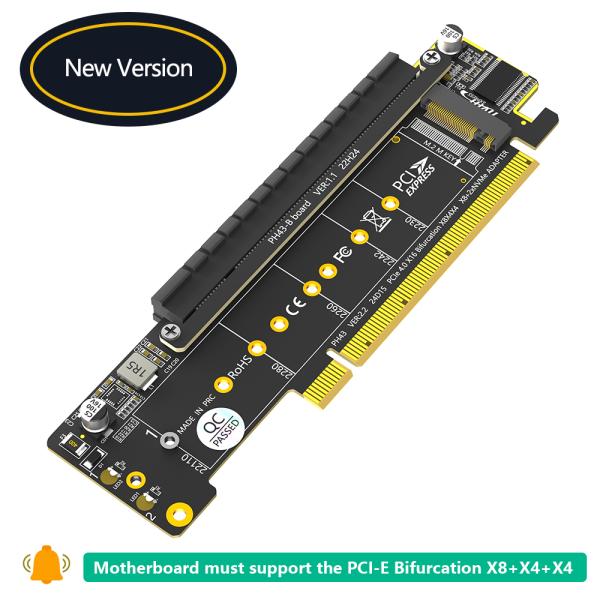

2. The motherboard need support "PCIe x8x4x4 Bifurcation", all of the slots will works in full speed. If MOBO only supports
"x4x4x4x4", the expanded PCIe x16 will only have x4 signal. If MOBO does not support"PCIe Bifurcation" , Only the PCIe x16 works, None M.2 SSD can be recognized.
3. Please check Motherboard's user manual on its official website if you are not sure the Mobo can support

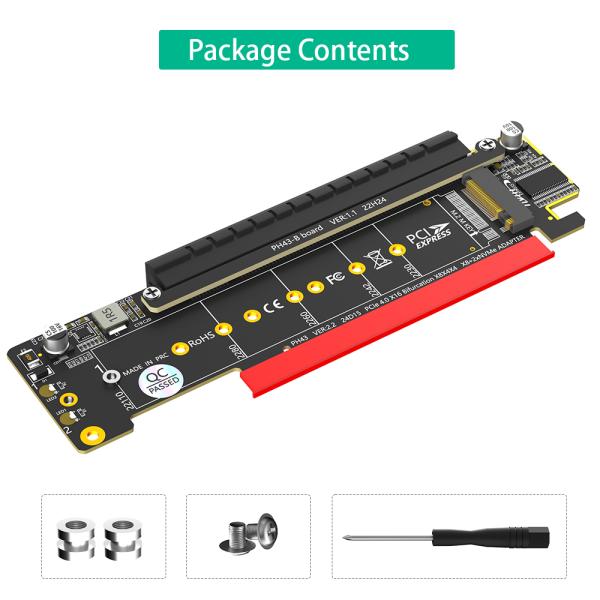

Package Content:
1x M.2 NVMe to PCI-E Adapter
1x Screw Driver
2x M2 Sliver screw
2x standoff
