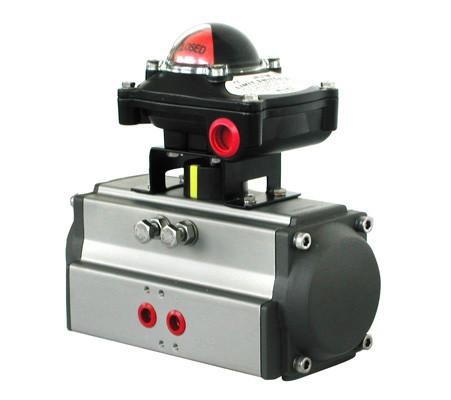

Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories
Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories
Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories
Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories
Specifications
Brand Name :
xm
Model Number :
APL
Certification :
CE,ATEX,ISO,SGS
Place of Origin :
Jiangsu, China
MOQ :
10 sets
Payment Terms :
T/T
Supply Ability :
5000 sets per month
Delivery Time :
3-15days
Packaging Details :
1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Product name :
limit switch for pneumatic actuator valve
Material :
paint steel
Size :
APL210 310 30*80
Colour :
Black
Bracket :
adapt to NAMUR standard
Description

limit switch for pneumatic actuator valve indicator

Limit switch box:

* Switch position can be clearly identified by indictor .

* Die casting aluminum shell, powder coating.

* Solid and beautiful design

* The bolt won't be fall off

* Protection class: IP67

* Quick-set CAM

* Easy installation

Standard Parts of Technical Parameters:

Model

Specification

 APL210N series
Shell Waterproof IP67/NEMA4&4
Connecting jack Double NPT1/2" (Standard)
Environment temperature -20°C~ 80°C
Terminal number 8points (0.08-2.5mm2))

Valve position indictor

Free rotate 0~90°

Close: red Open: yellow
Switch

Mechanical switch:2

Proximity switch:2
External skin Polyester black

Limit Switch Box Inner Structure:

Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories

Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories

Pneumatic Actuator Limit Switch For Pneumatic Cylinders Pneumatic Valve Accessories
