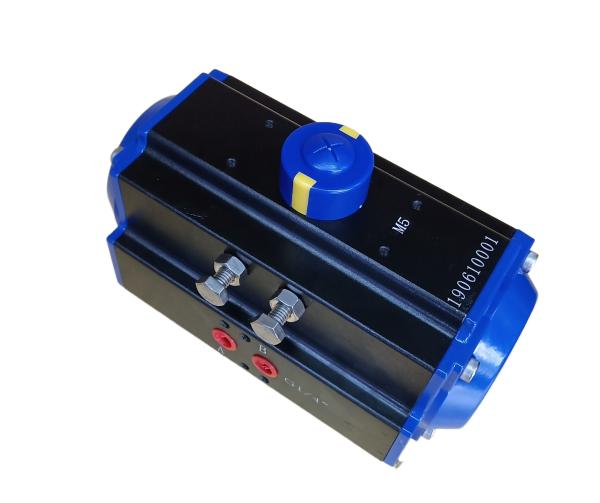

Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Double action DA83 double effect pneumatic actuator control valves
Specifications
Brand Name :
OEM
Model Number :
DA,SR
Certification :
CE,ATEX,ISO,SGS
Place of Origin :
Jiangsu, China
MOQ :
20
Supply Ability :
5000 sets per month
Delivery Time :
3-15days
Packaging Details :
1) foam packing inside,one carton box outside 2) then put all carton box in one strong plywood case for sea transport
Price :
USD
Payment Terms :
Western Union, T/T
Metarial :
extruded Aluminum alloy
Color :
black, gray, blue, or as customers' requirement
Application :
Ball valve, butterfly valve
Connection :
ISO 5211,DIN 3337
Structure :
rack and pinion
Type :
double action and single action
Product name :
Double action DA83 double effect pneumatic actuator control valves
Size :
83
Working temperature :
Standard:-20℃~+80℃ Low -35℃+80℃ High -15℃~+150℃
Description

Double action DA83 double effect pneumatic actuator control valves

Pneumatic actuator

Item
Double Acting, Spring Return (Single Acting) are Available
Air Supply Pressure
2.5 to 8bar
Output Torque
14 to 1170Nm
Lifespan
1,000,000 (1 Million) Times
Angle of Rotation
90° ±5°
Shell Material
Aluminum Alloy Extruded
Applicable Media
Filtered, Dry Compressed Air, Non-Corrosive Medium
Ambient Temp.
Standard Type: -20 to +80°C (-4 to 176°F)
Optional Accessories
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
Application
Food & Beverage, Refining, Desalination, Petrochemical, Chemical, Pharmaceutical, Textile, Pulp & Paper, Mining, Marine and Power
Industries
Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange

Pneumatic actuators statement of usage and selection

Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.

Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.

The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

Multi function indicator with NAMUR is convenient for mounting accessories.

Pre-compressed load spring is convenient for safe mounting and tear down procedures.

Die-casting aluminum pistons and end caps have high intensity and light weight.

Different O-rings materials are available for high and low temperature.

Solenoid valves are easily mounted without any connecting plank.
