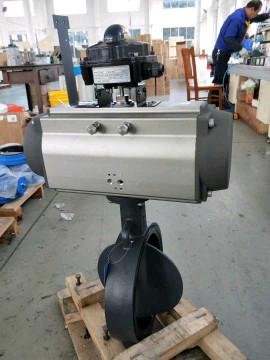

90 DEGREE PNEUMATIC ROTARY ACTUATOR FOR BALL VALVES AND BUTTREFLY VALVE

The piston style pneumatic actuator utilizes a piston inside a cylinder. Movement of the piston is caused by applying more or less force on one side of the piston. Double-acting piston style pneumatic actuators have air pressure applied to both sides of the piston while single-acting piston style pneumatic actuators use a spring on one side and modulate pressure to the other side. The linear motion of the piston can be used directly for linear motion actuation or it can be converted to rotary motion using a rack and pinion or similar mechanical arrangement. Piston actuators may be identified with a cylinder diameter and stroke length. Larger cylinders are capable of exerting more force.

AT series pneumatic actuators statement of usage and selection

• Through research development and design XM series pneumatic actuators incorporate the latest technology materials and innovative idea. The product proudly boasts the following features.
• Full conformance to the latest specifications: ISO5211,DIN3337 and VDINDE-3854,NAMUR.

• The extruding high intensity aluminum body possesses a honed internal surface coated with hard anode oxygenation for long life. Low coefficient of friction and swift performance.

• Excellent compact and modernized construction along with multi specifications makes the selection both economic and beneficial.

• All acting surface adopt high quality bearing resulting in low friction, high cycle life, and no noise

• The two independent external stroke adjustment bolts can easily and precisely adjust ±5°at both open and close directions.

• Same outline actuators have the functional modes of double acting and single acting (Spring -Return). The Spring-Return has the normally-open and normally-close styles.

• Multi function indicator with NAMUR is convenient for mounting accessories.

• Pre-compressed load spring is convenient for safe mounting and tear down procedures.

• Die-casting aluminum pistons and end caps have high intensity and light weight.

• Different O-rings materials are available for high and low temperature.

• Solenoid valves are easily mounted without any connecting plank.
  Product Application

  XM AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.


  Application
  Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.





  Main Features

  -1). Our design, material and size are definitely accord with ISO9001:2008, CE Certificate and ATEX Certificate.
  -2). Our piston is treated thermal quenching to obtain better strength and prolong using life.
  -3). The surface of our actuator body is treated hard anoidizing to against rust and scratch.

  -4). We provide with OEM service

  -5). Strict quality control
  -6). Better quality at a better price
  -7). Excellent After-service.
  -8). Fast delivery time
