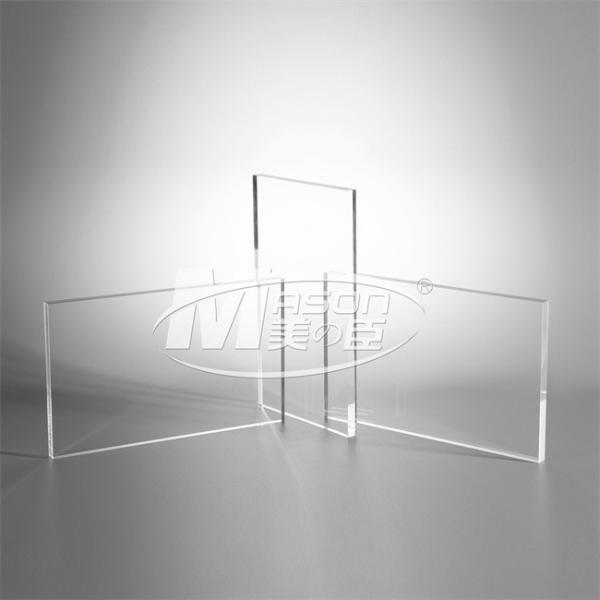

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft
Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft
Specifications
Brand Name :
Mason
Model Number :
M-000
Certification :
SGS CE
Place of Origin :
China
MOQ :
50 SHEETS
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10000KGS PER DAY
Delivery Time :
7-15DAYS
Packaging Details :
Max 1500kgs on one pallet
Product name :
Mason Laser Cutting Clear Flame Retardant Acrylic Sheet 5mm 4*8 Ft
Thickness :
3.0-10mm
Size :
1220*2440mm/1220*1830mm
Material :
100% virgin material
Application :
Buildings, aviation, subways, vehicles, advertisement decoration and ect
Light transmission :
>90%
Packing :
Film,Protect corner and pallet
Fire rated :
UL94-V0
Description

Mason Laser Cutting Clear Flame Retardant

Acrylic Sheet 5mm 4*8 Ft

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft

Description

MASON® Flame Retardant Acrylic is proud to offer Low Flammability plexiglass solutions.Fire rated perspex

sheet is a flame inhibiting, UV-stable plastic sheeting and glazing product that is virtually unbreakable.Flame

retardant acrylic sheet from Masdon is produced under rigid quality control specifications ensuring it meets

ISO certification guidelines.

Application

Flame retardant acrylic sheet is used for buildings, aviation, subways, vehicles, advertisement decoration,

elevators, electronics and other industries with high requirements for fire protection level.

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft

FLAMME RETARDANT ACRYLIC PARAMETER
Item Test Result Item Test Result
Rockwell Hardness(M) 97 Modulus of elasticity in tension, Mpa 3.03
Vicat Softening Temperature(1.8MPA) 101 Rockwell Hardness(R) 124
Coefficient of Thermal Expansion ℃-1 7.0*10-5 Resistance to crazing in solvent No crazing
Dimensional Stability(shrinkage) % 1.9 Charpy Non-notch Impact Strength KJ/M2 21.9(C)
Tensile strength, Mpa 74.7
MASON ACRYLIC SPECIFICATION
(The specification is 3mm plate, size will decreases with the increase of thickness)
Code Size with rubber edge Size after cut edge
Q 1250*1850mm 1210*1820mm
L0 1250*2450mm 1210*2420mm
L1 1270*2490mm 1220*2440mm
L2 1310*2530mm 1270*2490mm
L3 1350*2570mm 1310*2530mm
Y 1650*2600mm 1610*2660mm
N 1550*3050mm 1510*3020mm
M 2050*3050mm 2010*3010mm

Product Display

Strong flame retardancy and self extinguishing when leaving the fire

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft

Packing

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft

Laser Cutting Flame Retardant Clear Acrylic Sheet 5mm 4x8 Ft
