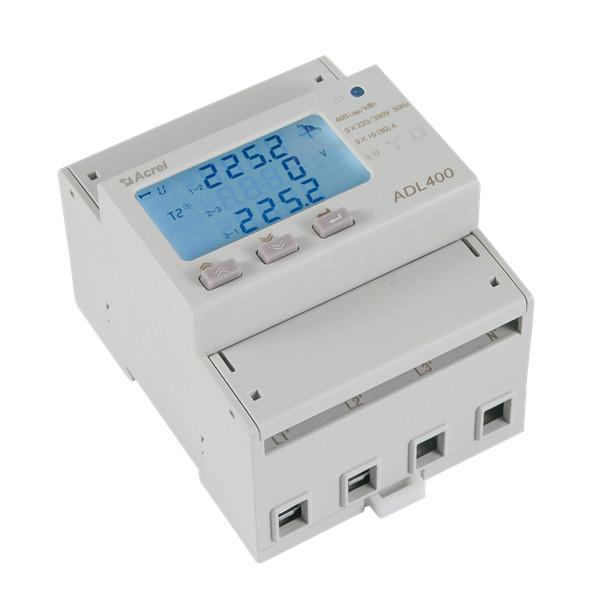

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted
Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted
Specifications
Brand Name :
Acrel
Model Number :
ADL400
Certification :
MID
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Supply Ability :
5000pcs/day
Delivery Time :
2-4days
Packaging Details :
carton package
Phase :
Three Phase
Display Type :
LCD
Accuracy Class :
0.5%
Operating Temperature :
-25℃~+55℃
Dimensions :
90*72mm
Width of pulse :
80±20ms
Description

Products Overview

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted

Panel Overview

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted

Product Parameters

Project

 Performance parameter
Specification 3 phase 3 wires, 3 phase 4 wires
Measurement Voltage Reference voltage 3×100V3×380Vac,3×57.7/100Vac, 3×220/380Vac (Can normally work under 1.2 times of rated voltage)
Consumption <10VA(Single phase)
Impedance >2MΩ
Accuracy class Error±0.2%
Current Input current 3×1(6)A, 3×10(80)A
Consumption <1VA Single phase rated current
Accuracy class Error±0.2%
Power Active, reactive, apparent power, error±0.5℅
Frequency 45～65Hz,Error±0.2%
Metering Energy Active energy(Accuracy class: 0.5) reactive energy(Accuracy class 2)
Clock ≤0.5s/d
Digit signal Energy pulse output 1 active photocoupler output
Pulse Width of pulse 80±20ms
Pulse constant 400imp/kWh,10000imp/kWh(Correspond with the basic current)
Communication Interface and communication protocol RS485:Modbus RTU
Range of Communication address Modbus RTU:1~ 247；
Baud rate 1200bps~19200bps
Environment Working temperature -25℃~+55℃
Relative humidity ≤95℅(No condensation)

Main Features

Diverse Electric Parameters Measurement
● kWh (3-phase positive Kilowatt-hours)
● kVarh (Kilovar-hours)
● Harmonic (2~31st voltage¤t)---Standard
● U (3-phase Voltage)
● I (3-phase Current)
● P (Power)
● Q (Reactive power)
● F (Frequency)
● S (Apparent power)
● PF (Power factor)		 Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
● Data Frozen (last 48 months or last 90 days)
● Max demand and occurrence time		 Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted
HMI for Common Configuration
● PT or CT ratio
● Wiring methods (3P4W or 3P3W)
● Back linght time
● RS485 (MODBUS-RTU) communication setting		 Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted

Dimensions

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted

Wiring and Details

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted

Application

Acrel ADL400 3 Phase Electricity Meter 3 Phase DIN Rail Energy Meter Kwh Meter Din Rail Mounted
