Specifications
Place of Origin :
Jiangsu, China
Brand Name :
ACREL
Model Number :
PZ72L-DE
MOQ :
2 Pieces (2 lot)
Price :
$91.00 / Piece
Display Type :
Digital Only
Phase :
Single Phase, single phase
Measuring Energy Range :
0-9999
Accuracy Class :
0.5, 0.5
Output Voltage :
220v
Operating Temperature :
-10℃-45℃
Dimensions :
75*75mm
Product name :
digital multi-function dc solar energy meters
Display :
LCD
Frequency :
45~65Hz
Input current :
AC 1A or 5A
Power range :
AC85-270V/DC110-350V and so on
Communication :
RS485
Power consumption :
≤2VA
Warranty :
2 years
Selling Units :
Single item
Single package size :
17X18X16 cm
Single gross weight :
0.400 kg
Package Type :
Paper carton product packed with air bubble film
Description
Product Description

ACREL PZ72L-DE DC power energy monitor / kwh meter for telecom base / solar panels

DC multifunction energy meter power analyzer power meter with RS485 modbus 0.5 class PZ72L-DE is
designed for application in DC cabinet,solar power supply and telecom station. It can measure voltage,current of DC system.It can be used for local display and connected with the control equipment to regroup measuring and controlling system.
It can be equipped with RS 485 communication under Modbus-RTU protocol;it has options of analog output,relay alarm and switch state.
Functions and parameters

Functions and parameters

• Measuring dc voltage,current,power,reverse and forward energy
• Max voltage input 1000v,current input by connecting shunt 75mv or hall effect current sensor(0-5v);
•Optional function:
1.RS485-Modbus(C)
2.2DI/DO(K)
3.±12v power can be connected to hall current sensor(V)
4.Multi tariff energy caculating(F) historical data
5.Accuracy:class 0.5
Parameters-PZ72L-DE LCD display dc power energy monitor meter ACREL
Input
DC voltage input
dc 0-1000v
DC current input
Input range
0-10a(direct input,start current:5ma
0-9999A(external with 75mv shunt or 5v hall effect current sensor
shunt
75mv output
Overload
1.2 times sustainable work, 2times lasts a second
Accuracy
class 0.5
power supply
Auxiliary power
AC85-265V,50/60HZ,DC110-350V,DC36-48V,DC18-30V and so on
Power consumption
≤2VA
Communication protocol
Modbus-RTU RS485
Dimensions
Panel size
75*75mm
Cut out
67*67mm
Depth
98mm

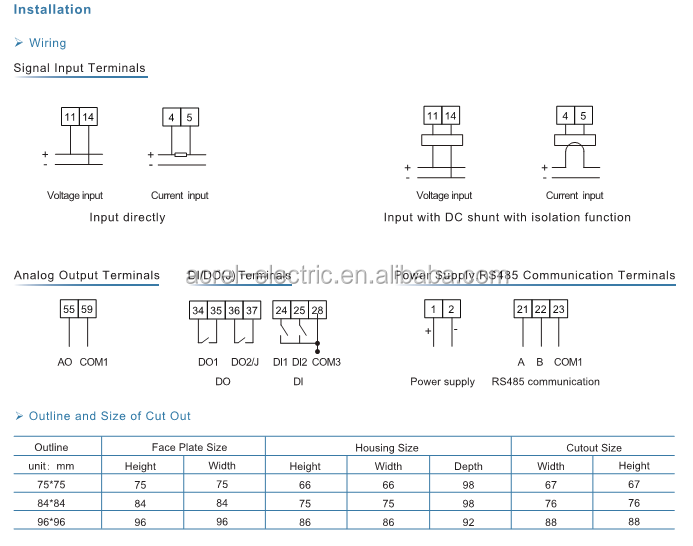

Dimensions and wirings
75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE
75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE
please note for dc power meter,we can only do 75x75mm outline size and for ac power meter,3 sizes are available,for modbus address table or manual pls mail me or online contact skype:sherryxiaoxiao1 or what'sapp /wechat:+8615921826295
Production Process
75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE
Payment and delivery
1. Payment:100% TT in advance,credit card and western union. For large amount, we can accept terms T/T 30% in advance as deposit and balance 70% before delivery.

2. Delivery:in 3-10 working days after payment received.

3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and so on.
Project Performance
75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE
Costa Rica national stadium electric monitoring and energy management system
The project is taken over by Anhui Foreign Economic Construction Group,adopting over 500 hundred PZ power meters.
75*75mm Digital 220v DC Energy Meter For Solar Panels PZ72L-DE
Power monitor energy meter used in telecom base station
