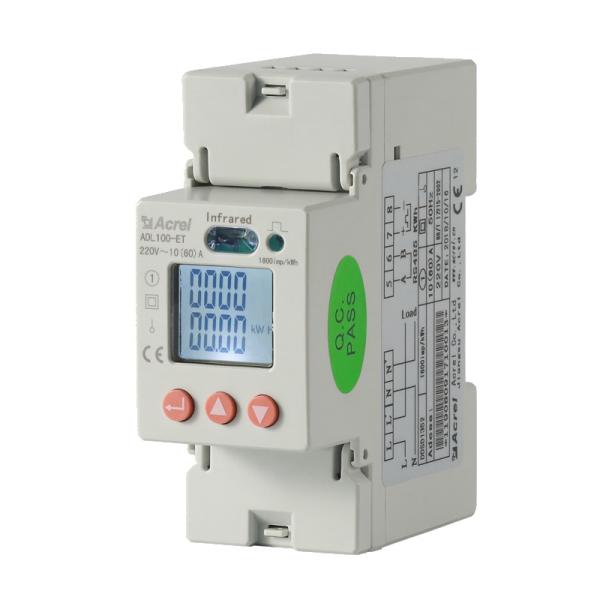

10-60A 220VAC 1 Phase Din Rail Energy Meter With Multi Tariff Energies ADL100-ET
10-60A 220VAC 1 Phase Din Rail Energy Meter With Multi Tariff Energies ADL100-ET
10-60A 220VAC 1 Phase Din Rail Energy Meter With Multi Tariff Energies ADL100-ET
10-60A 220VAC 1 Phase Din Rail Energy Meter With Multi Tariff Energies ADL100-ET
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Acrel
Model Number :
ADL100-ET
Supply Ability :
1000000 Piece/Pieces per Month
Packaging Details :
It is packed in a crash bag and then put into a cardboard box.
MOQ :
>=1 Pieces
Price :
$35.00
Display Type :
LCD
Phase :
Single Phase
Measuring Energy Range :
000000.00~999999.99kWh
Accuracy Class :
1 class
Output Voltage :
220V
Operating Temperature :
-25℃~55℃
Dimensions :
36mm*96 mm*70mm
Current :
10-60A
Standards compliant :
IEC 62053-21:2003
Communication :
RS485 Modbus-RTU communication
Option function F :
multi tariff energies
Port :
shanghai
Description

Acrel ADL100-ET Energy consumption monitoring multi tariff energies din rail single phase electricity energy meter

Technical Parameters
Voltage
Reference voltage
AC 220V
Reference frequency
45-65 Hz
Consumption
<10VA( Single phase)
Current
Maximum
60A
Starting current
0.004 Ib
Consumption
<4VA(Maximum current)
Measurement performance
Accuracy of active kWH
Class 1
Standards complicant
IEC 62053-21:2003
Pulse
Pulse width
80+20 ms
Pulse constant
3200 imp/kWH
Communication
Interface
RS485
Protocol
Modbus-RTU
Outling
L*W*H(mm)
36*88*70
Environment
Temperature
Operating:-25℃~55℃；Storage:-40℃~70℃
Humidity
≦95% (No condensation)
Altitude
<2000m
