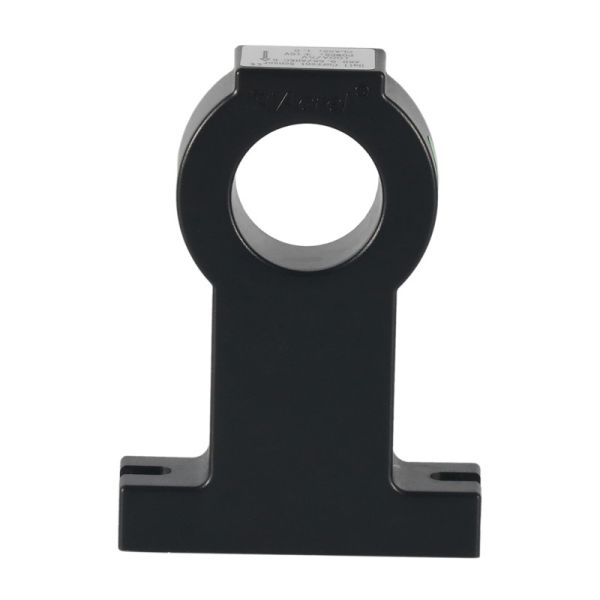

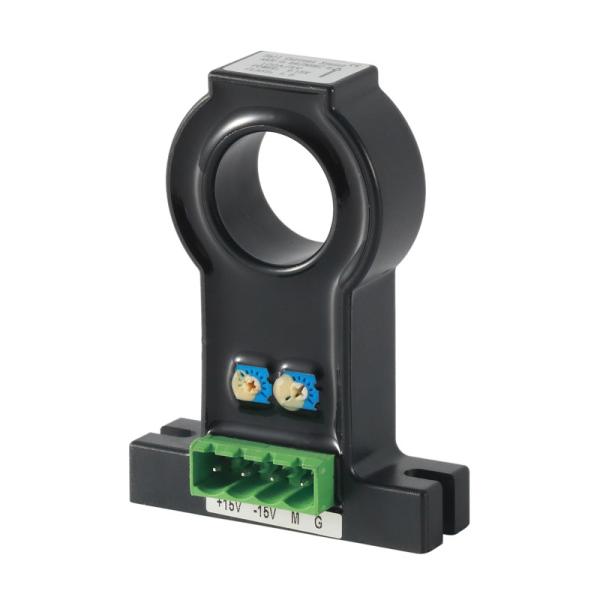

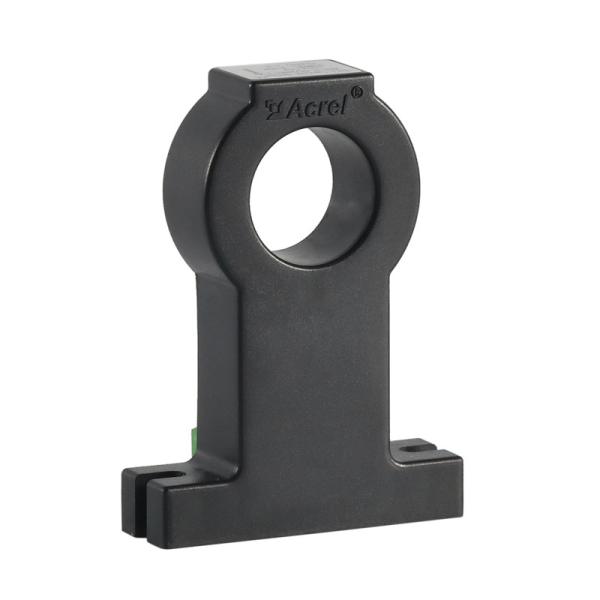

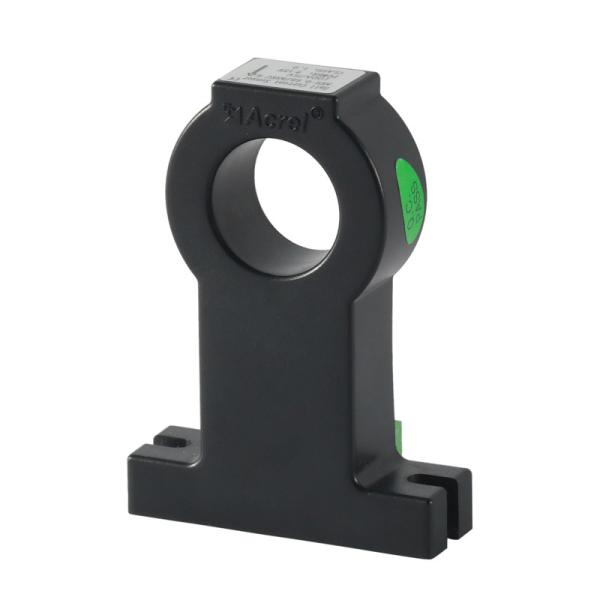

AHKC-EKA
AHKC-EKA
AHKC-EKA
AHKC-EKA
AHKC-EKA
AHKC-EKA
AHKC-EKA
AHKC-EKA
Specifications
Brand Name :
Acrel
Model Number :
AHBC-LTA
Certification :
CE
Place of Origin :
China
MOQ :
1 pcs
Price :
USD34-325/pcs
Supply Ability :
10000/month
Delivery Time :
3 days
Packaging Details :
Individually packed in big carton
Accuracy Class :
1.0
Power Voltage :
DC±15V（allowable fluctuation±20%)
Zero Offset Voltage :
±20mV
Offset Voltage Drift :
≤±1.0mV/℃
Linearity :
≤0.2%FS
Response Time :
≤5us
Bandwidth :
0～20kHz
Isolation Voltage :
3.5kV/50Hz/1min
Description

Hall current sensor is mainly applicable to the isolation and conversion of complex signals such as AC, DC, pulse, etc. through the principle of Hall effect, the transformed signal can be directly received by various acquisition devices such as ad, DSP, PLC, secondary instrument, etc. T with the advantages of response time block, high accuracy of current measurement range, strong overload ability,

Technical Parameters

Parameters Index
Rated Input Current 0～(50-500)A
Rated Output Voltage ±5V/±4V
Accuracy Class 1.0
Power Voltage DC±15V(allowable fluctuation±20%)
Zero Offset Voltage ±20mV
Offset Voltage Drift ≤±1.0mV/℃
Linearity ≤0.2%FS
Response Time ≤5us
Bandwidth 0～20kHz
Isolation Voltage 3.5kV/50Hz/1min
Operating Temperature -40℃～85℃
Storage Temperature -40℃～85℃
Consumption

≤0.5W

Application
