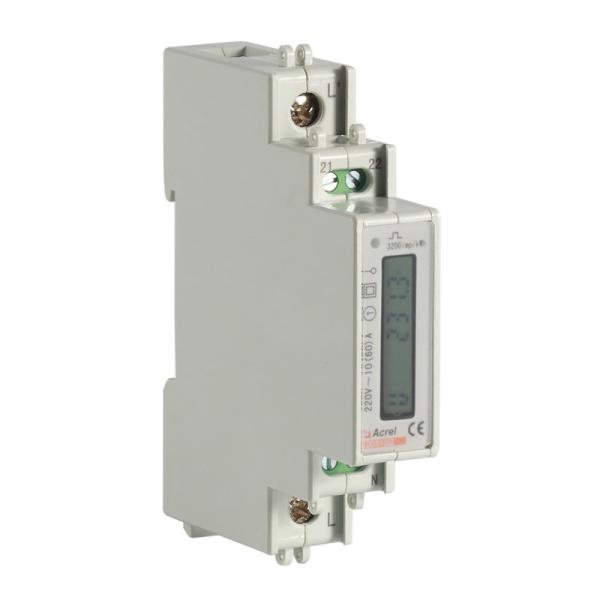

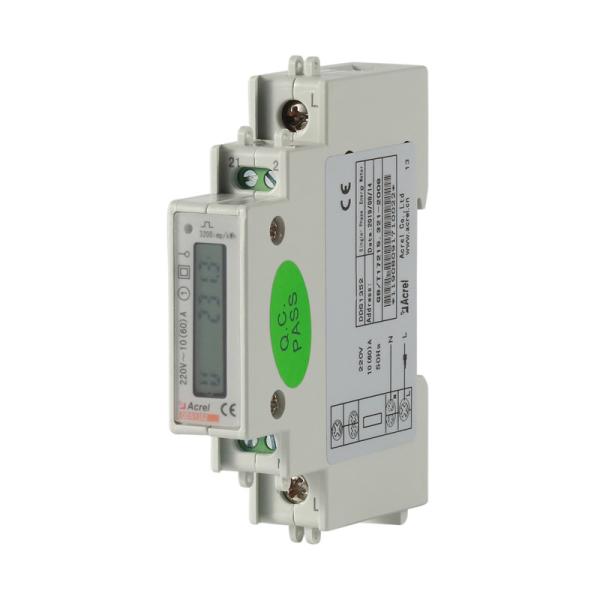

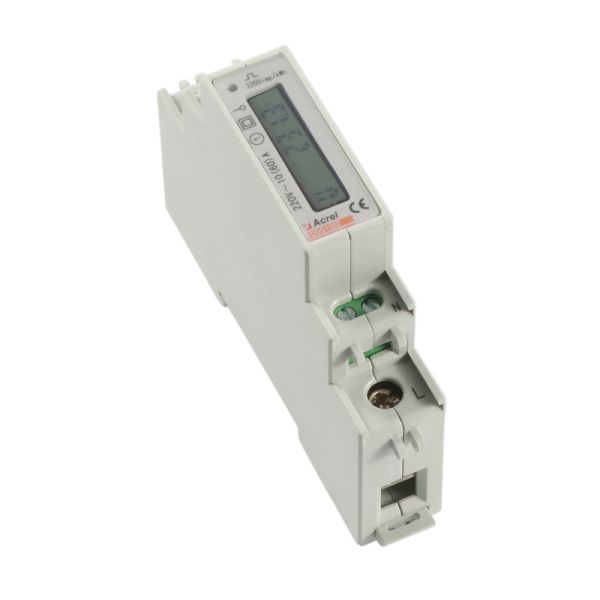

ADL10-E Single Phase Electric Energy Meter
ADL10-E Single Phase Electric Energy Meter
ADL10-E Single Phase Electric Energy Meter
ADL10-E Single Phase Electric Energy Meter
ADL10-E Single Phase Electric Energy Meter
ADL10-E Single Phase Electric Energy Meter
Specifications
Brand Name :
ACREL
Model Number :
ADL
Certification :
ISO/CE
Place of Origin :
Jiangsu, China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
2000000 per year
Delivery Time :
5-8 work days
Description

ADL10-E Single Phase Electric Energy Meter

● AC 220V

● 10(60)A
● RS485,MODBUS-RTU
● LCD display
● kWh Class 1,Kvarh Class 2
● U,I,P,Q,S,PF,kWh,kvarh
● DIN 35mm

Characteristic

ADL10-E Single Phase Electric Energy Meter

Communication
RS485
(Modbus-RTU)
ADL10-E Single Phase Electric Energy Meter

Display
8 digits LCD display U, I, P, Q, PF, kWh, Power measure (999999.99kWh)
ADL10-E Single Phase Electric Energy Meter

Rated U and I
AC220V
10(60)A

Function

Accuracy
kWh Class 1,Kvarh Class 2

Frequency
50HZ

Auxiliary power supply(self supply)
AC 220V(L-N),range:154~264Vac

Consumption
<10VA(Single phase)

Installation
DIN 35mm

Dimension(L*W*H)
18*88*70 mm

Starting current
0.004Ib

LCD Display

ADL10-E Single Phase Electric Energy Meter

Wiring

ADL10-E Single Phase Electric Energy Meter

Typical connection

ADL10-E Single Phase Electric Energy Meter
