Specifications
Brand Name :
Acrel
Model Number :
ADL400
Certification :
ISO/CE
Place of Origin :
YES
MOQ :
1
Price :
USD+15-80+pcs
Payment Terms :
L/C, T/T
Supply Ability :
6000000+pcs+per year
Delivery Time :
5-8 work days
Packaging Details :
48*45.5*20
Description

ADL400 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

● AC 3×220/380V,3×380V,3×57.7/100V,3×100V

● 3×1(6)A,3×10(80)A

● U,I,P,Q,S,PF,kWh,kvarh

● RS485(MODBUS-RTU)

● LCD display

● kWh Class 0.5S,kVarh Class 2

Characteristic

ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter
Communication Display Rated U and I
RS485
(Modbus-RTU)

12 digits LCD display

U, I, P, Q, PF, kWh and other energy consumption

Power measure (999999.99kWh)

AC 3×100V, 3×380V, 3×57.7/100V

3×220/380V; 3×1(6)A, 3×10(80)A

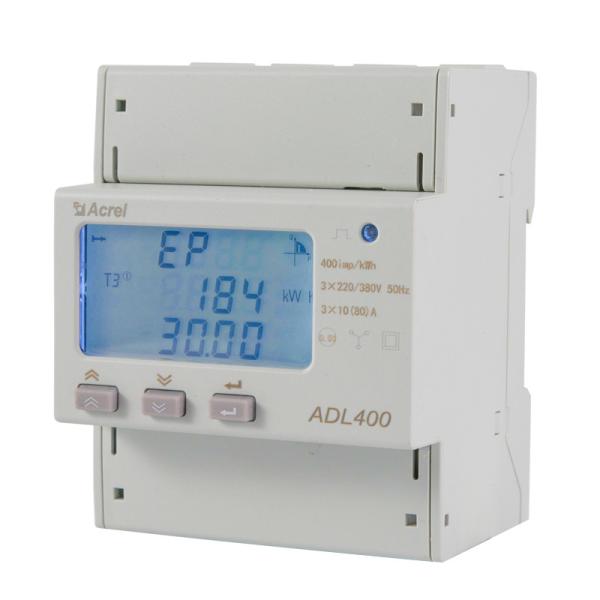

LCD Display

ADL400 Din Rail Three Phase Multi-Function Energy Meter

Function

Accuracy

kWh: Class 0.5S,kVarh:Class 2

Frequency

50/60HZ(Optional),range: 45~65HZ

Pulse output

Pulse output kWh/kvarh

Consumption

<1VA(Single phase)

 ADL400 Din Rail Three Phase Multi-Function Energy Meter

ADL400 Din Rail Three Phase Multi-Function Energy Meter

Installation

DIN 35mm

Dimension(L*W*H)

90*72*65mm

Switch relay

Magnetic latching relay(ADL3000-E build-in)

Clock

≤0.5s/d

Starting current

Direct connect: 0.01

Connect via CT: 0.001

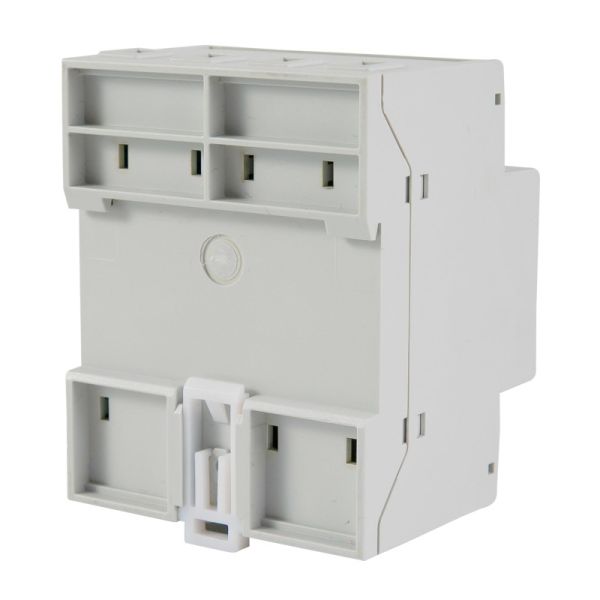

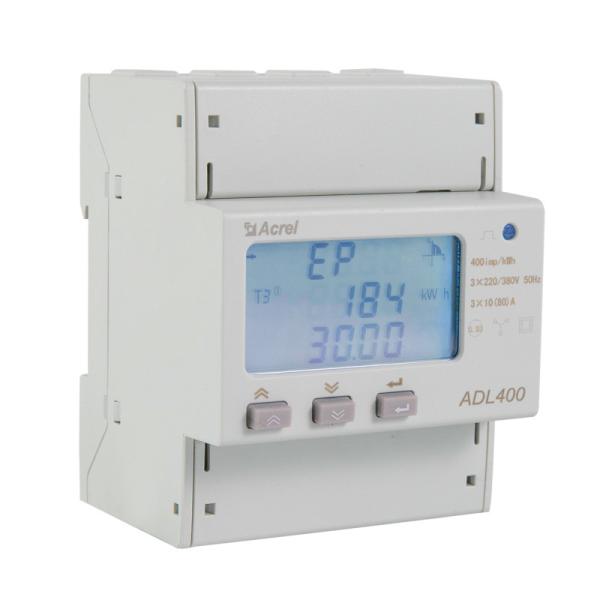

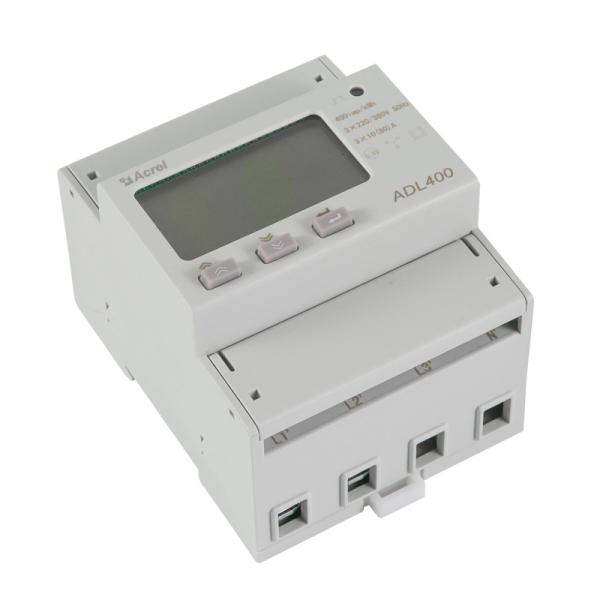

Appearance

ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter ADL400 Din Rail Three Phase Multi-Function Energy Meter

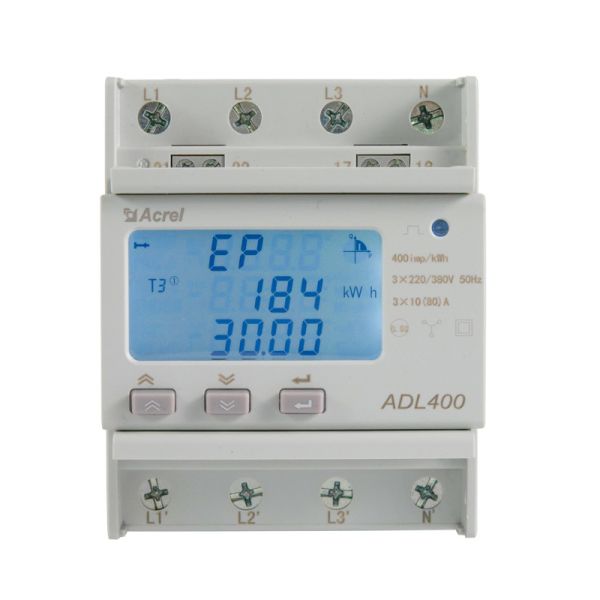

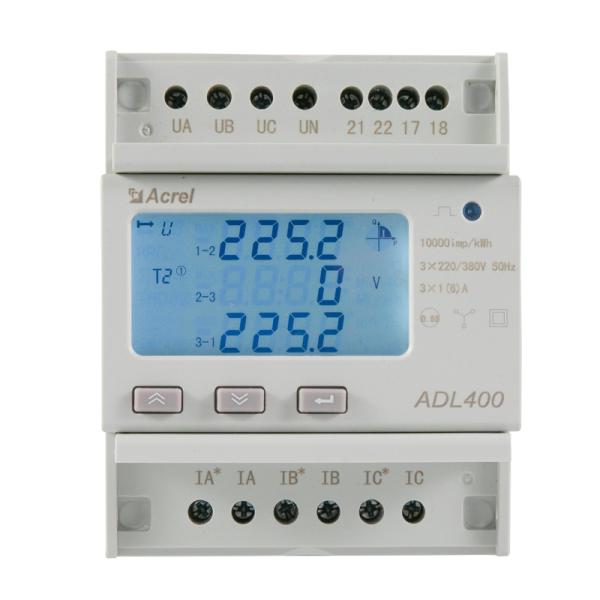

Wiring

ADL400 Din Rail Three Phase Multi-Function Energy Meter

Typical connection

ADL400 Din Rail Three Phase Multi-Function Energy Meter

ADL400 Din Rail Three Phase Multi-Function Energy Meter

ADL400 Din Rail Three Phase Multi-Function Energy Meter
