Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Specifications
Brand Name :
Acrel
Model Number :
APM810/801/800/830
Certification :
UL CE MID CPA RCM RoHS
Place of Origin :
CHINA
MOQ :
1
Price :
260 USD each unit
Payment Terms :
T/T
Supply Ability :
100 pcs per day
Delivery Time :
7 work days
Packaging Details :
carton packing 33*24*18cm
Harmonic :
1%(2~42nd), 2%(43~63rd)
Accuracy :
0.5s
Description

APM series meters have full power measurement, energy statistics, analysis of power quality and network communications and other functions, are mainly used for comprehensive monitoring of the quality of power supply network.

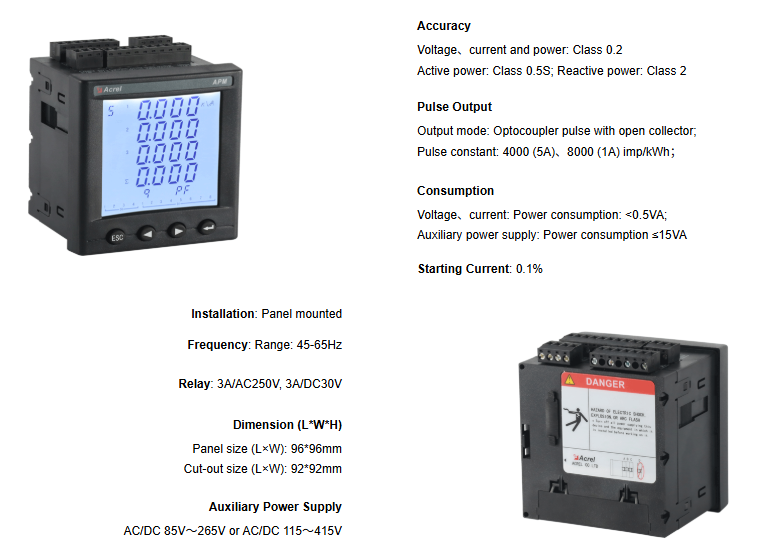

Parameter:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

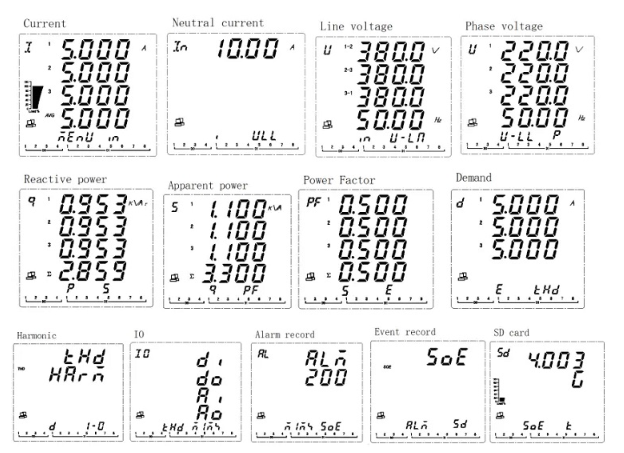

Display:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

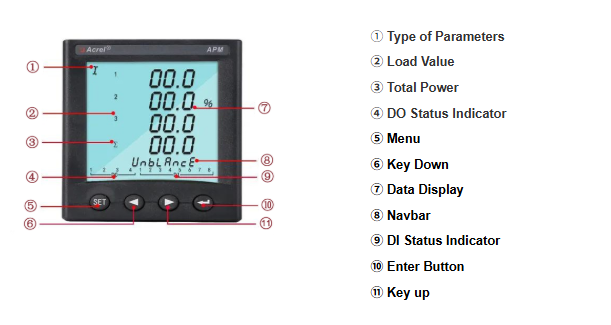

Front Panel:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

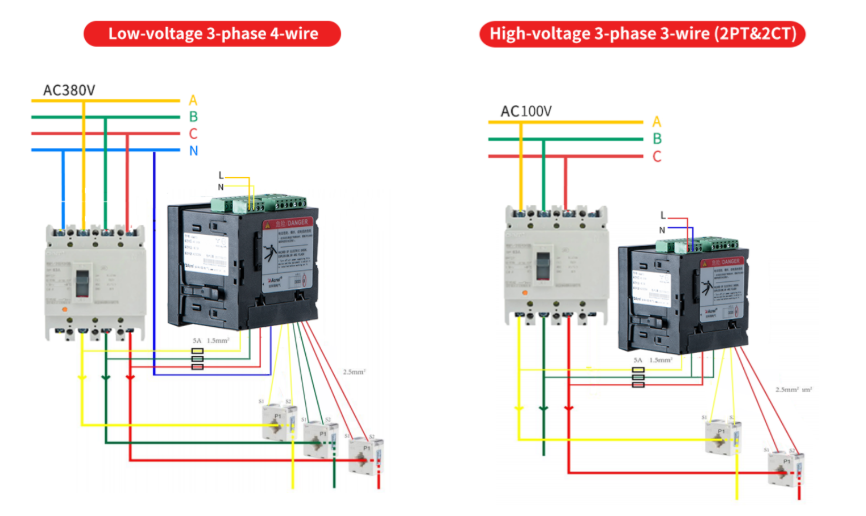

Wiring:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

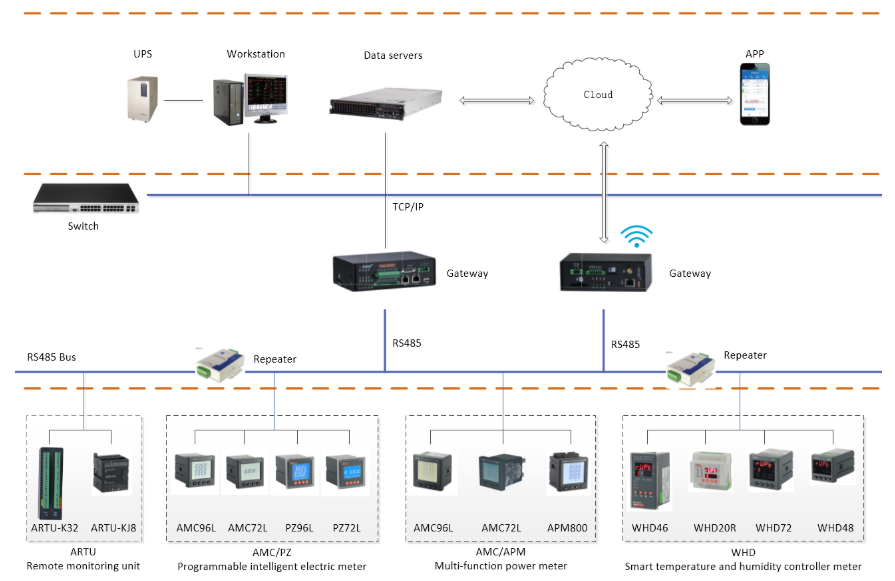

Network:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

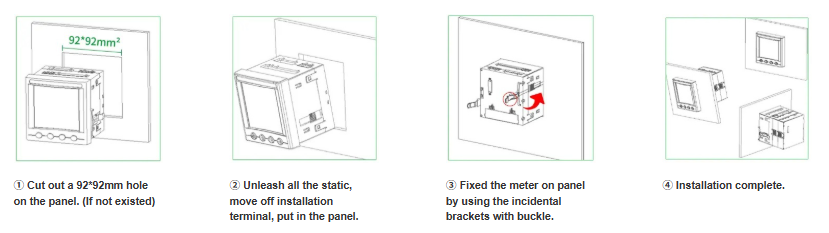

Installation:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

Application:

Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed

FAQ:

Q: What’s the storage capacity, storage format and data storage interval of SD card?

A: The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)

Q: How should I select the expanded modules of APM8xx?

A: Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random

Q: The features of APM8xx?

A: Except for wave record and SD card storage function, 0.2S measuring accuracy can also be a option. Besides, APM8xx can serve as reverse display meter (which means 3-phase electrical parameters measuring plus 8-channel reverse display) Also, users can measure the data through browser by using Ethernet auto WEB.

Q: As for the auxiliary power supply of APM8xx?

A: AC/DC 85~265V or 115~415V is both optional. Also, 380V line voltage can also serve as power supply.

Product Line
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Our Company
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Certifications
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Exhibition
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Packaging & Shipping
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
FAQ
Acrel IoT Instrument APM810 AC Multifunction Meter Upload Data To Iot Platform Easily Installed
Q: Are you trading company or manufacturer ? A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time? A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ? A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
