Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Specifications
Brand Name :
Acrel
Model Number :
AHKC Series
Certification :
CE UL RoHS
Place of Origin :
CHINA
MOQ :
1
Price :
11 USD each unit
Payment Terms :
T/T
Supply Ability :
100 pcs per day
Delivery Time :
7 work days
Packaging Details :
carton packing 26.5*17*17cm
Measurement :
AC, DC, pulse and other complex current
appearance :
split core
Description

Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment.

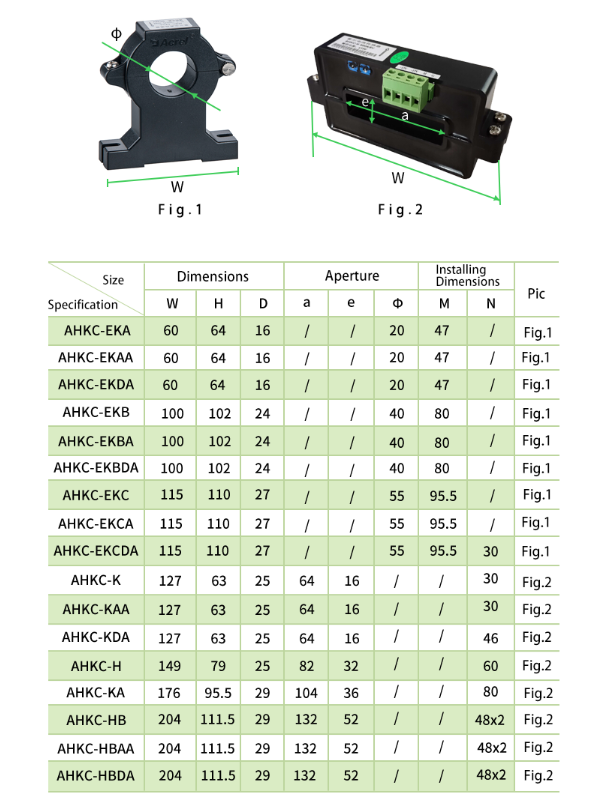

Dimension:

Acrel Split Core Hall Effect Current Sensor AHKC-EKA

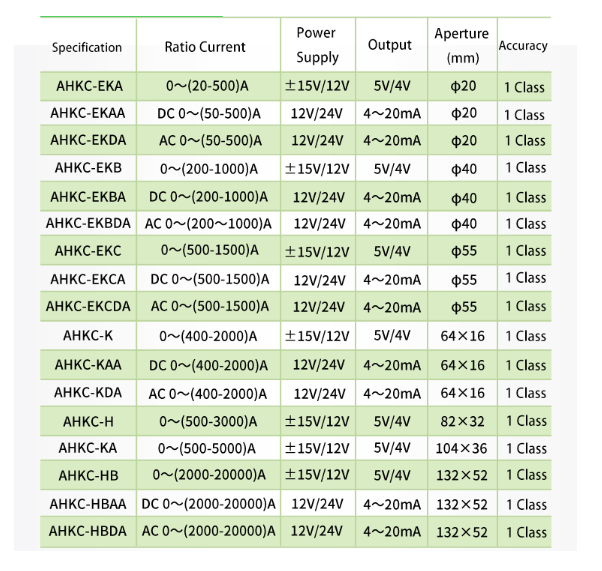

Parameter:

Acrel Split Core Hall Effect Current Sensor AHKC-EKA

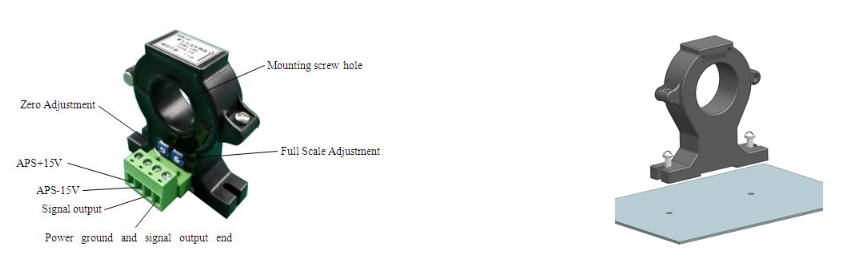

Installation:

Acrel Split Core Hall Effect Current Sensor AHKC-EKA

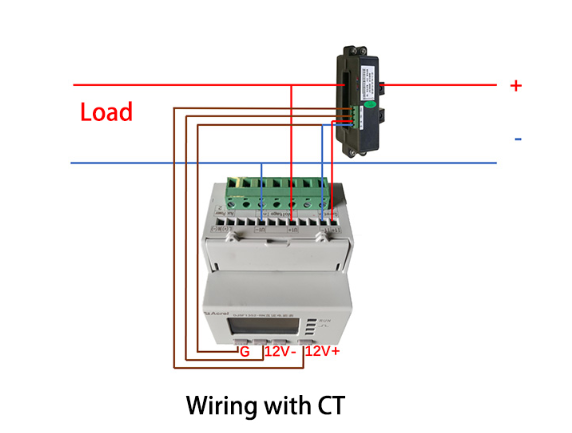

Wiring:

Acrel Split Core Hall Effect Current Sensor AHKC-EKA

Precautions:

1. When the Hall sensor is used, attention must be paid to the coupling between the primary side coil and assistant side coil in order to get better dynamic characteristics and sensitivity, single conductor that should cram the thread hole of Hall sensor module completely is proposed to use.

2. When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.

3. When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.

4. The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.

5. Zero and full scale regulator potentiometer can not be adjusted.

6. Auxiliary power supply is required to be deployed voluntarily.

7. Power positive and negative poles cannot be inversely connected.

Product Line
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Our Company
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Certifications
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Exhibition
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Packaging & Shipping
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
FAQ
Acrel Split Core Hall Effect Current Sensor AHKC-EKA
Q: Are you trading company or manufacturer ? A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time? A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ? A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
