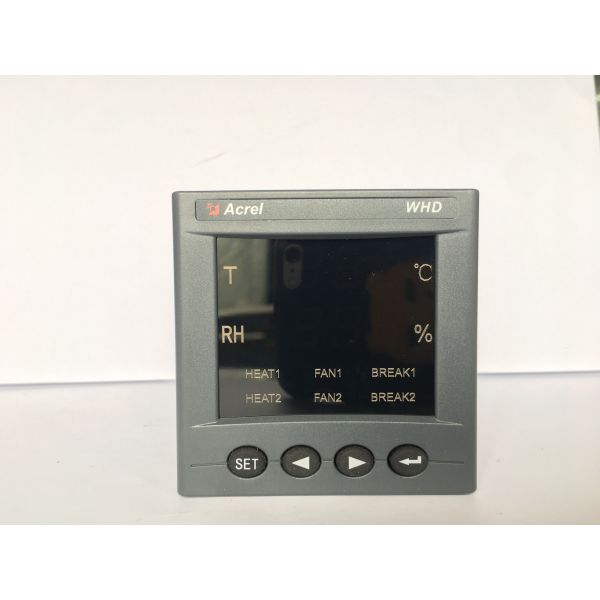

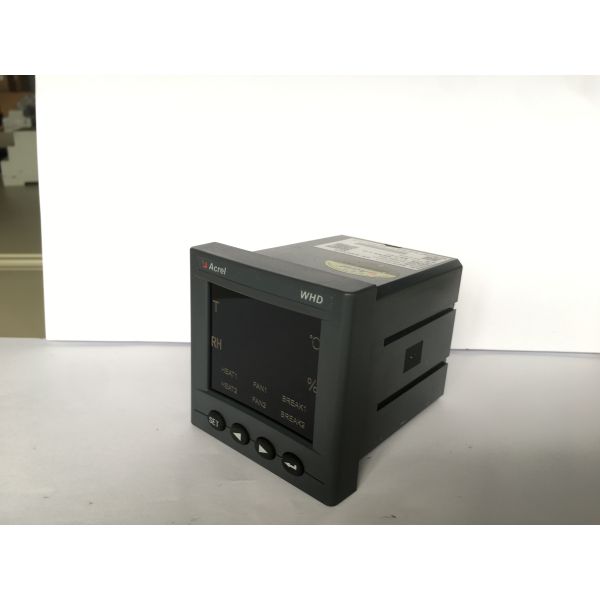

Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Acrel WHD72-22 Temperature & Humidity Controller
Specifications
Brand Name :
Acrel
Model Number :
WHD72-22
Certification :
CE RoHS CQC
Place of Origin :
CHINA
MOQ :
1
Price :
90 USD each unit
Payment Terms :
T/T
Supply Ability :
100 pcs per day
Delivery Time :
7 work days
Packaging Details :
carton packing 23*14.5*12cm
Optional functions :
alarm, communication, analog output
Mounting :
Panel mounted
Description

WHD series smart temperature and humidity controller is suitable for adjustment and control of temperature and humidity in equipments of high voltage switchgear, terminal box, ring network panel, box transformer substation etc. It can effectively protect relevant equipment from faults resulting from excessive low or high temperature, creepage or flashover etc.from humidity or condensation.

Function:
Acrel WHD72-22 Temperature & Humidity Controller

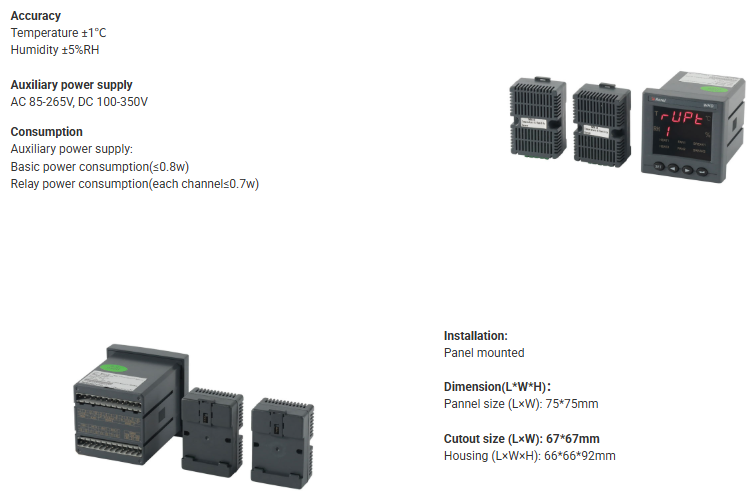

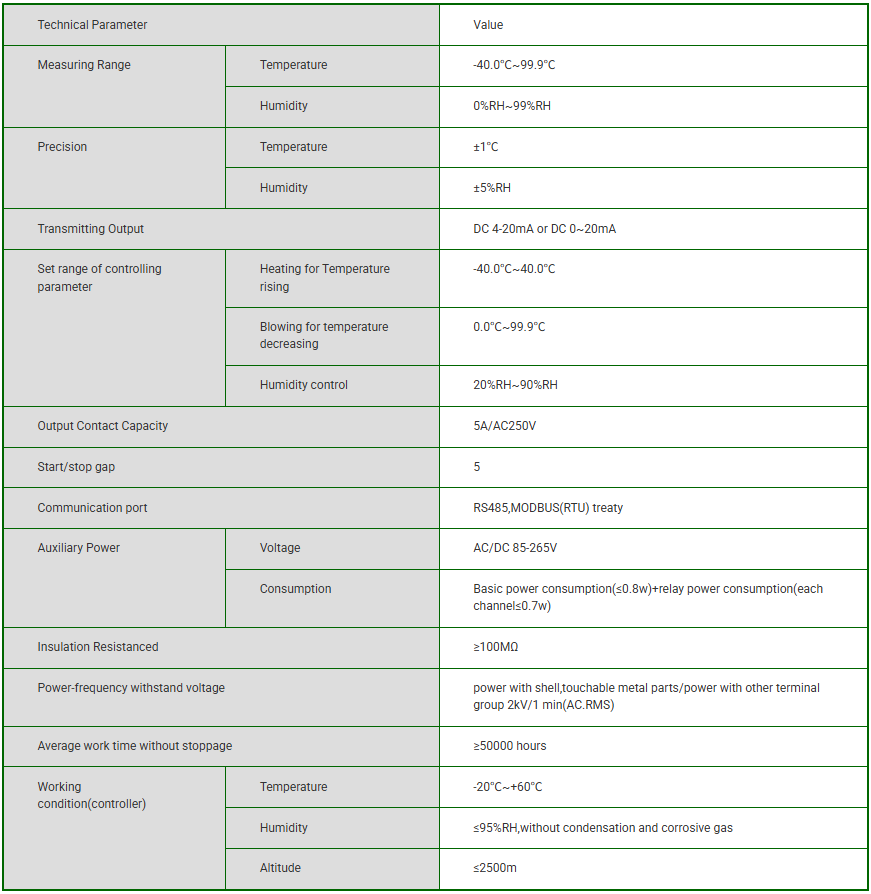

Technical Datasheet:

Acrel WHD72-22 Temperature & Humidity Controller

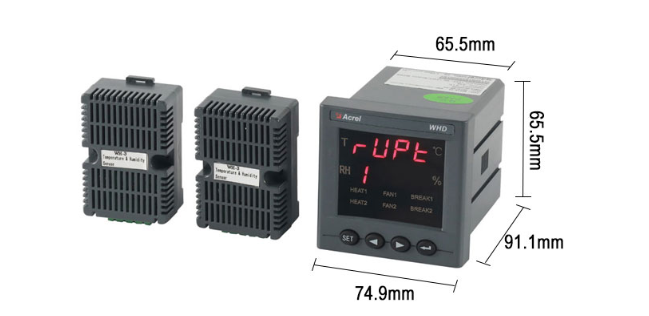

Dimension:

Acrel WHD72-22 Temperature & Humidity Controller

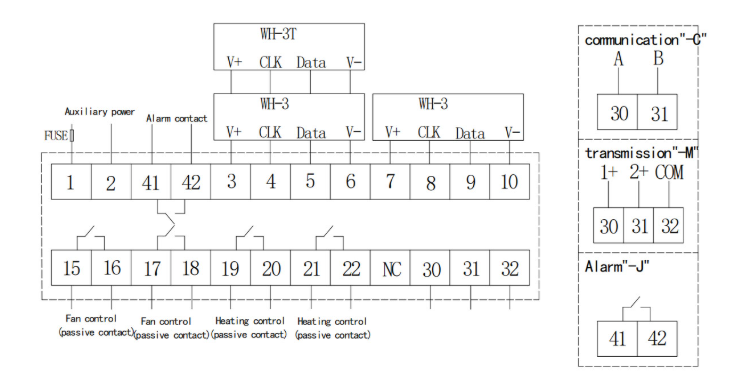

Wiring:

Acrel WHD72-22 Temperature & Humidity Controller

Typical Connection:
Acrel WHD72-22 Temperature & Humidity Controller

FAQ:

Q: Connect users between the sensor and the controller,Can it be matched?How long is the length in meters?

A: The user can wire,but it is required to use a 4-core shielded wire,and a 2.5-meter shielded wire is attached to the factory.

The longest distance between the sesor and the controller is 20 meters.

Q: Can WHD Switch control manually and automatically?

A: Yes,but be sure to explain to the customer service before placing an order,it is an unnormal operation.

Q: User have their own sensor,can they buy a controller?

A: No,the sensor and controller need to be used together,2 device can not sold seperately.

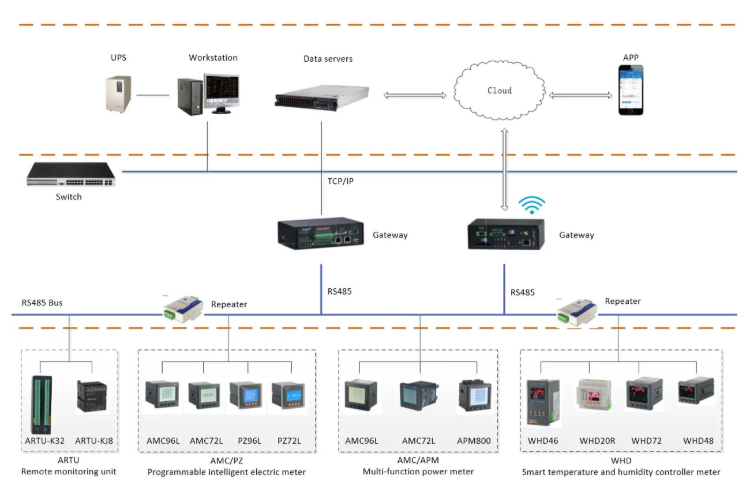

Product Line
Acrel WHD72-22 Temperature & Humidity Controller
Our Company
Acrel WHD72-22 Temperature & Humidity Controller
Certifications
Acrel WHD72-22 Temperature & Humidity Controller
Exhibition
Acrel WHD72-22 Temperature & Humidity Controller
Packaging & Shipping
Acrel WHD72-22 Temperature & Humidity Controller
FAQ
Acrel WHD72-22 Temperature & Humidity Controller
Q: Are you trading company or manufacturer ? A: We are factory. Warmly welcome you to visit and investigate our factory.
Q: How long is your delivery time? A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
Q: What is your terms of payment ? A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us as below:
