ALP220-EF Low-voltage Earth Fault Relay
ALP220-EF Low-voltage Earth Fault Relay
Specifications
Model Number :
ALP220-EF
Payment Terms :
T/T
Delivery Time :
3-5 work days
Brand Name :
Acrel
MOQ :
1pc
Supply Ability :
5000pc/day
communication :
Modbus-RTU
Place of Origin :
China
Description

ALP220-EF Low-voltage Earth Fault Relay

General

Acrel ALP220-EF Earth Fault Overcurrent Relay is designed for low-voltage applications (up to 380 V) where it is necessary to monitor the system's ground current and provide protection when the ground current exceeds the permissible limit. This relay features an LCD display, Modbus-RTU communication capability, system current measurement, three-phase current overcurrent protection, ground current overcurrent protection, residual current measurement, residual current overcurrent protection, fault logging, and event logging functions.

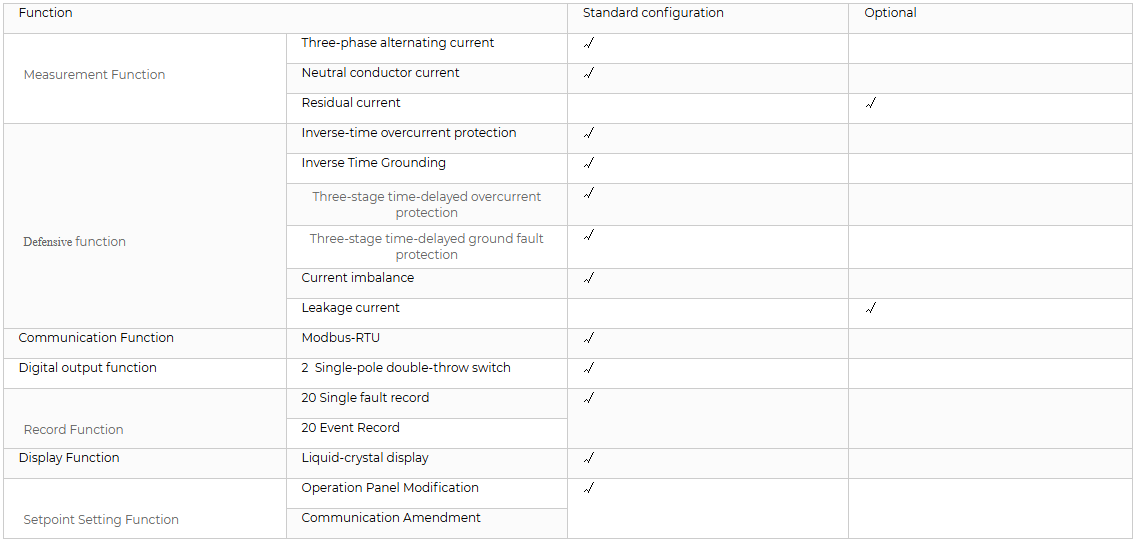

Functional Configuration

ALP220-EF Low-voltage Earth Fault Relay

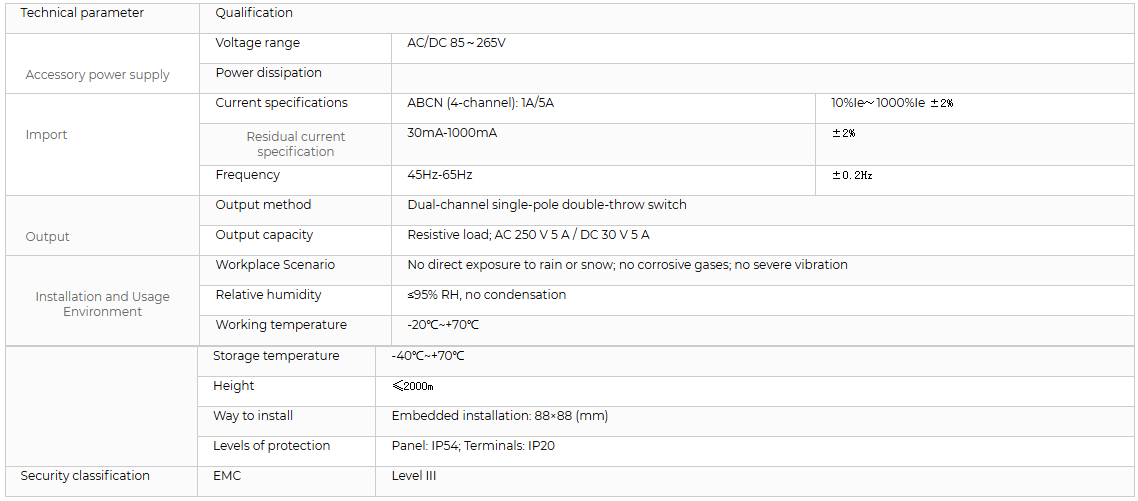

Technical Parameters

ALP220-EF Low-voltage Earth Fault Relay

Panel Display

ALP220-EF Low-voltage Earth Fault Relay

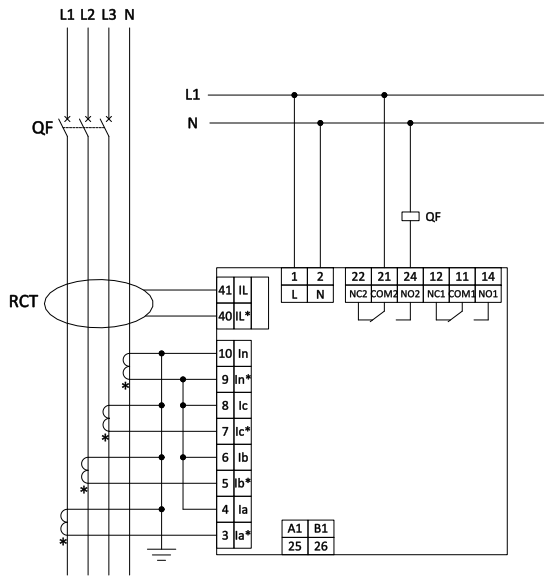

Wiring

ALP220-EF Low-voltage Earth Fault Relay

3 phase 4 wire connection

Outline and Dimension

ALP220-EF Low-voltage Earth Fault Relay

ALP220-EF Low-voltage Earth Fault Relay
