Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Specifications
Place of Origin :
Jiangsu, China
Brand Name :
Acrel
Model Number :
AKH-0.66 P26
Supply Ability :
5000000 Piece/Pieces per Month
Packaging Details :
It is packed in a crash bag and then put into a cardboard box.
MOQ :
>=1 Pieces
Price :
$16.00
Phase :
Single
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Rated operation voltage :
AC 0.66 kV
Rated frequency :
50-60 Hz
Application :
Medical Insulation System
Insulation strength :
3000V/1min 50HZ
Input :
150A
Altitude :
≤3000m
Port :
shanghai
Description
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Product Description
The medical IT system is mainly used in important Class 2 medical locations such as operating room, ICU/CCU intensive care unit, providing safe, reliable and continuous power distribution for the important equipment at these locations. Medical insulation monitoring and fault locating device is developed by the many years’ design experience of the Acrel Electric in electric power meter industry, according to the special requirements of the insulation monitoring and fault locating of the power distribution system in Class 2 medical locations. The products can realize the real-time monitoring of insulation, load and temperature of isolation transformer in IT system, and have the functions of system insulation fault loop positioning and centralized monitoring by multiple pieces of systems. Products conform to the provisions of enterprise standard Q31/0114000129C013-2016 IT System Insulation Monitoring Instrument.
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System

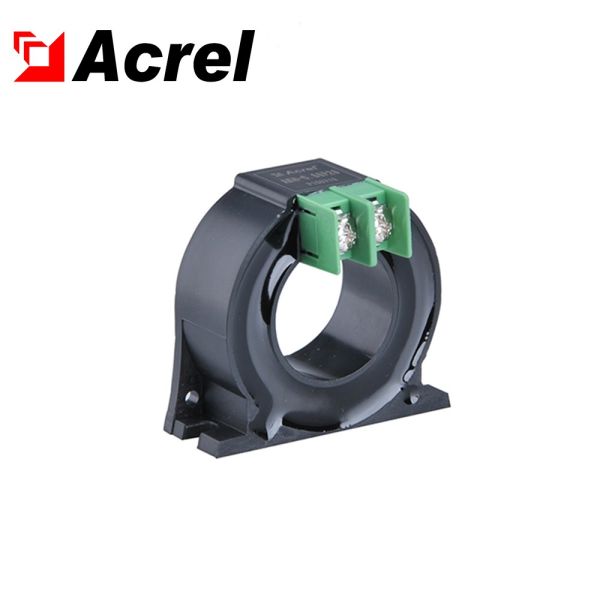

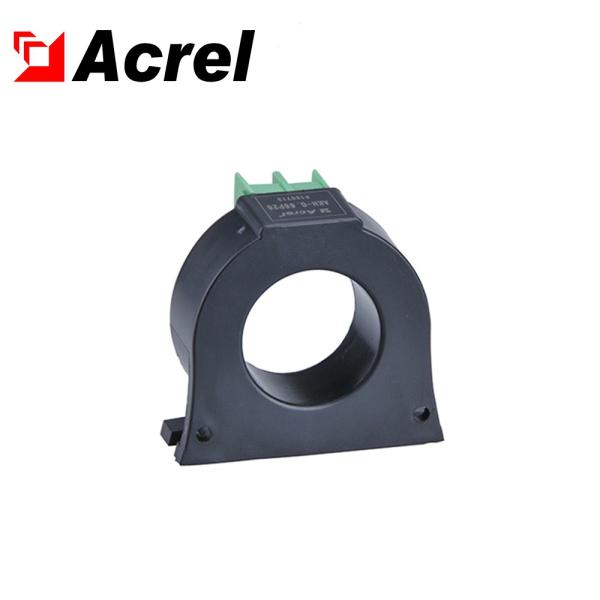

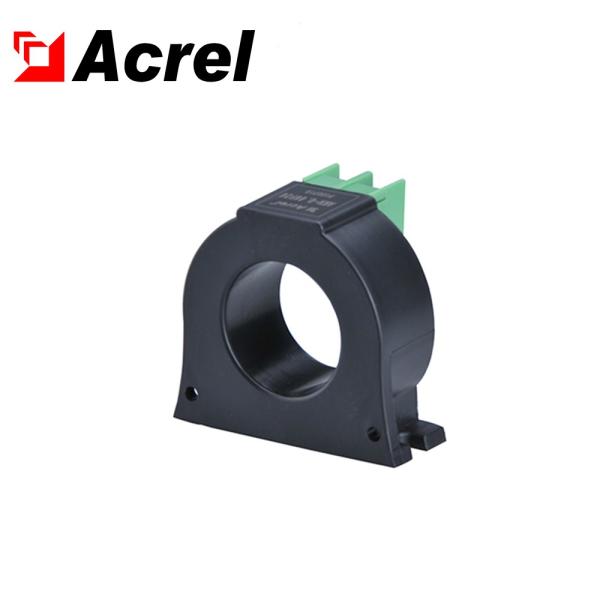

AKH-0.66 P26 Current Transformer
The AKH-0.66 P26 type current transformer is the protective current transformer supporting the AIM-M200 insulation monitor, of which the maximum measurable current is 60A and the transformation ratio is 2000:1. The current transformer is directly fixed inside cabinet by screwing, and the secondary side is leaded out by the terminal, which is convenient to install and use.
Technical Parameter
Input Current
0.5mA-50A
Output Current
0.025-25mA
Phase Shift
10'
Accuracy
0.5%
Operating Temperature
-35~+70 ℃
Storage Temperature
-40~+75 ℃
Secondary Resistance Range
95~120Ω
Load Resistance
<200Ω
Isolation Voltage
500Vac
Linearity
0.5%
Packing & Delivery
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System

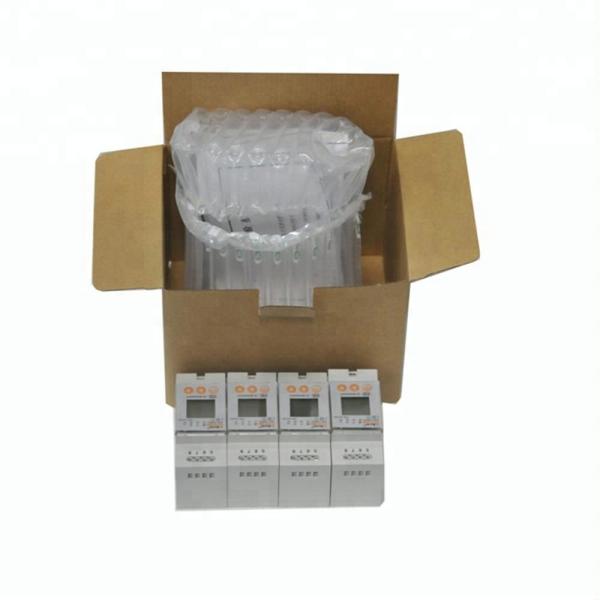

It is packed in a crash bag and then put into a cardboard box.
Company Profile
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System

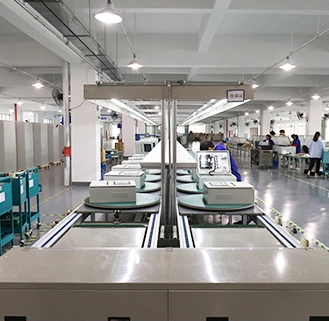

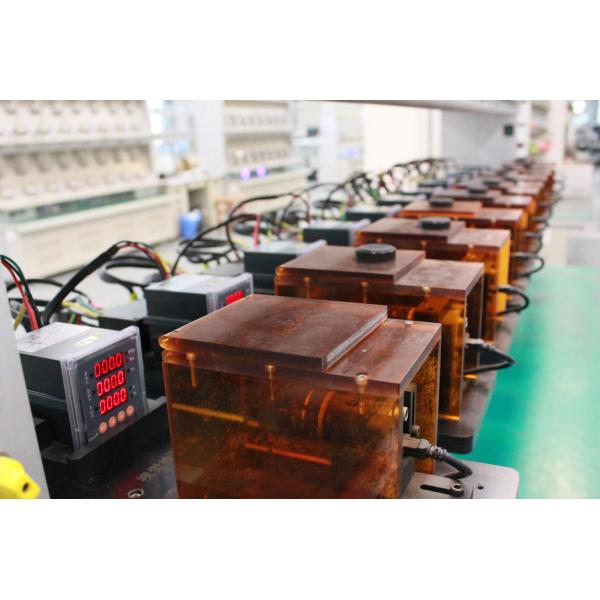

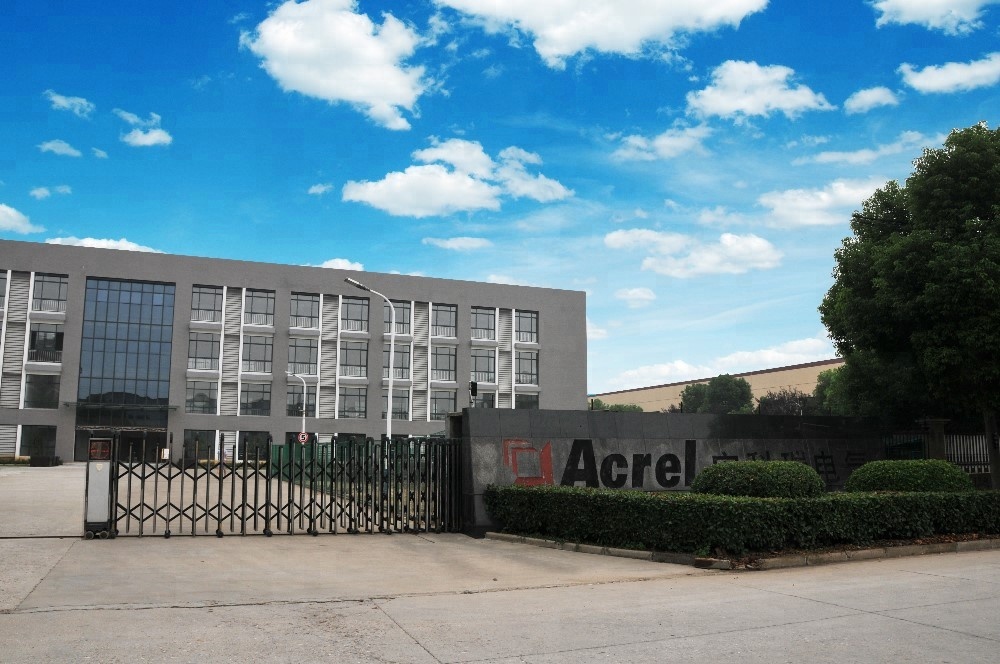

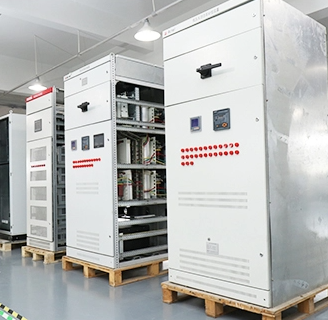

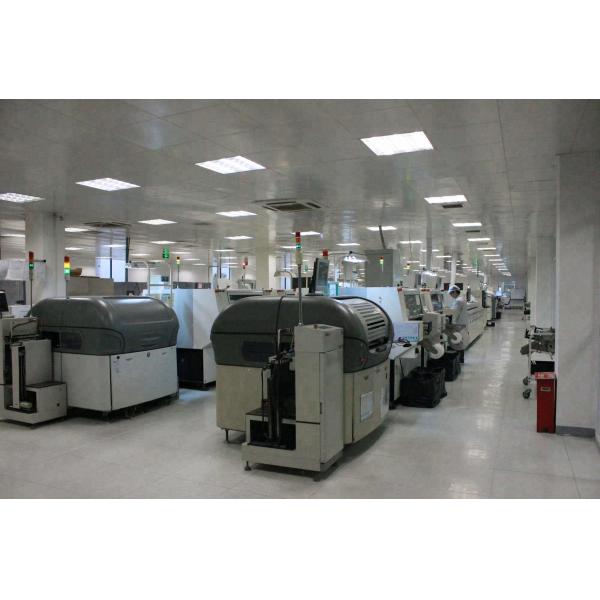

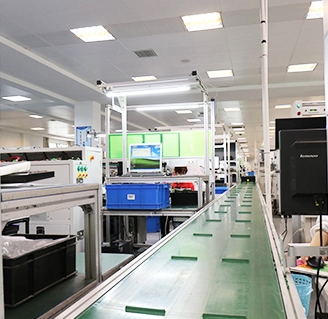

Jiangsu Acrel Electric Co.,LTD [Stock Code:300286.SZ ] is one of the few leading companies in China who provides various systematic of power monitoring, power control, energy management and electrical safety for smart grid users. Since June2003, we have always been focused on the research, production and sales of intelligent electric meters. We concentrate on providing products and services to help customers improve electricity and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4KV substation automation system, building mounted photovoltaic(BMPV)system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
Certifications
Acrel AKH-0.66 P26 Medical Protective Current Transformer CT For Medical Insulation System
FAQ
1. Where is your factory located ?
Our production base is located in Jiangyin City, Jiangsu Province, China;

2. How long would your equipment be used?
Generally, more than 10 years.

3. How long could I get my order?
Stock Products: shipping within 5 days.
Customized products: usually 10-15 days. It depends on your design and quantity.

4. What certificate do you have?
We have ISO9001, CE, IEC and so on.

5. Can I get a sample to check the quality?
Samples are no problem. We are glad to offer you some for test.
6. What's your MOQ?
At least one pcs.
