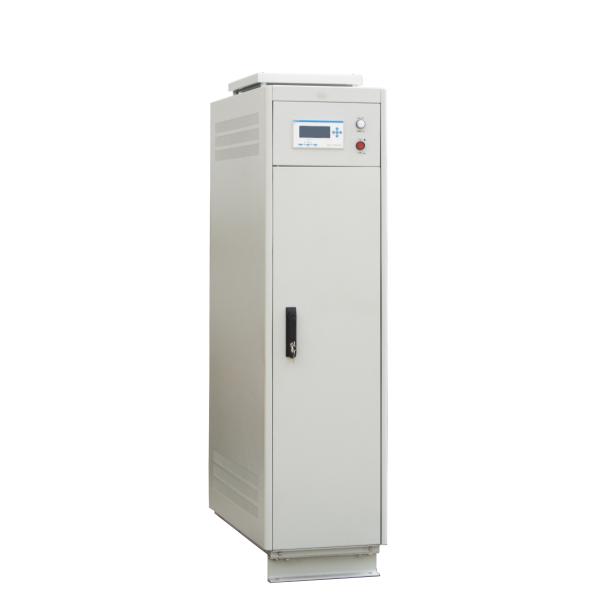

3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer
Specifications
Brand Name :
Modern
Model Number :
SBW
Certification :
CE,ISO 9001
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
500 unit/month
Delivery Time :
30 days
Packaging Details :
Wooden Packing
Dimension :
405×1640×950mm
Capacity :
200KVA
Votage Stability Range :
-2%~+2%
Weight :
471.2Kg
Current Type :
AC
Export Markets :
Global
Description

3 Phase Automatic Voltage Regulator , High Accuracy AC Voltage Stabilizer

Description:

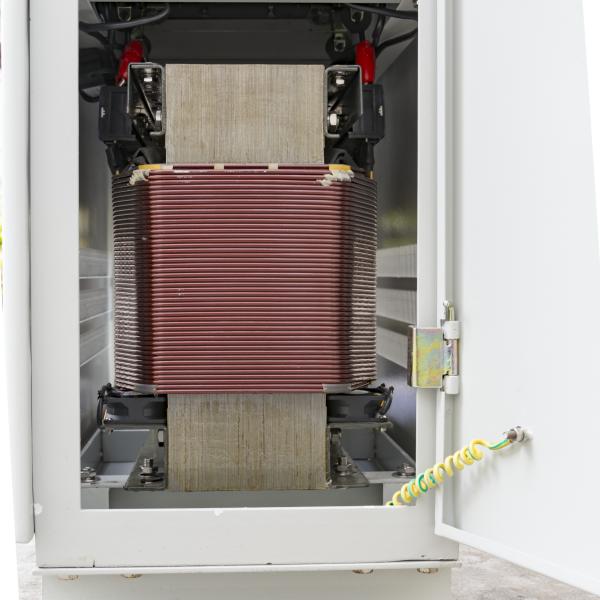

The three-phase Adjustable Compensation Voltage Stabilizer is composed of Three sets of single-phase voltage stabilizer by "star-shaped" connection. With The function of thee phases independently voltage-stabilizing, it applies to the Unbalanced input voltage of three phases or unbalanced three phase loads. Moreover, It has the functions such as voltage regulating stability, high voltage stabilizing Precision, and auto-balance of three phases. The regulating voltage parts of this Series voltage stabilizer is adopted the pillar. Therefore, it has more power and More reliability.

Technical parameter

Input Voltage DBW SBW
220±15%,20%,30%,50% 380±15%,20%, 25%30%,50%
Output Voltage (Preset at 1.5%) 220Vac±1-5% 380Vac±1-5%
Efficiency >98%
Precision 1-5%
Frequency 47-53Hz
Response Time <0.5S/20V(Line Voltage)
Insulated Strength 2000V/1 minute without puncture 2500V/1 minute without puncture
Insulated Resistance >2MΩ
Wave Deformation Nil
Isolation transformer Optional
Surge Protection Optional

Model

Dimension(W×D×H)mm

Model

Dimension(W×D×H)mm

DBW-10KVA

300×720×1270

DBW-50KVA

300×800×1370

DBW-20KVA

300×720×1270

DBW-80KVA

300×800×1370

DBW-30KVA

300×720×1270

DBW-100KVA

300×800×1370

SBW-15KVA

300×720×1270

SBW-350KVA

500×1050×1800

SBW-20KVA

300×720×1270

SBW-400KVA

500×1050×1800

SBW-30KVA

300×720×1270

SBW-500KVA

600×1250×2000

SBW-50KVA

300×800×1370

SBW-600KVA

600×1250×2000

SBW-80KVA

300×800×1370

SBW-800KVA

600×1250×2000

SBW-100KVA

300×800×1370

SBW-1000KVA

800×1800×1900

SBW-120KVA

300×800×1370

SBW-1200KVA

1000×1800×1900

SBW-150KVA

400×900×1600

SBW-1500KVA

1000×1800×1900

SBW-180KVA

400×900×1600

SBW-2000KVA

1000×1800×1900 two cabinets

SBW-200KVA

400×900×1600

SBW-3000KVA

1000×1800×1900 two cabinets

SBW-250KVA

500×1050×1800

SBW-4000KVA

1000×1800×1900 three cabinets

SBW-300KVA

500×1050×1800

SBW-5000KVA

1000×1800×1900 four cabinets
