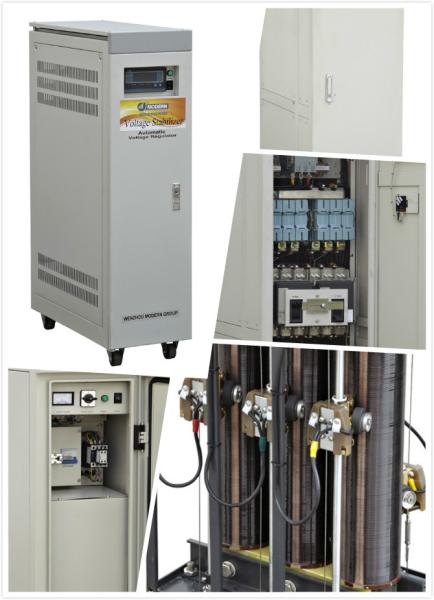

35 years Independent Regulation voltage regulator
35 years Independent Regulation voltage regulator
35 years Independent Regulation voltage regulator
35 years Independent Regulation voltage regulator
35 years Independent Regulation voltage regulator
35 years Independent Regulation voltage regulator
Specifications
Brand Name :
Modern
Model Number :
SBW,DBW-Z02
Certification :
CE,ISO9001,
Place of Origin :
China
MOQ :
1set
Price :
FOB US$150-US$6000 /SET
Supply Ability :
500 sets/ Month
Delivery Time :
30 DAYS
Packaging Details :
Wooden packing or followr requests
Input Voltage :
Single phase 220V±20% The other input voltage range and rated voltage can be custom designed.
Output Voltage :
Single phase 220V±1-5%, three phase: 380V±1-5%
Supply Frequency :
50/60Hz
Insulating Resistance :
≥2MΩ
Voltage Regulation Mode :
Independent phase regulation for three phase
Efficiency :
>98% on full load
Description

35 years professional power solutions manufacturer to supply Independent regulation voltage regulator energy saving power stabilizer.

Description:

Modern's automatic voltage regulator provides continuous power conditioning and the broadest range of protection available. It guards against voltage fluctuations that can wreak havoc with your electrical load (equipment).

Features and benefits of power conditioner:

  1. Wide voltage regulation range; 165-275V
  2. 15-100KVA, three phase 380/220V, other sizes up to 225KVA on request
  3. Isolation transformer output on request
  4. Individual regulation for each phase on request
  5. High accuracy: ±1.5%
  6. High efficiency :＞ 98%(without isolation transformer)
  7. Continuously working, can withstand short time overload
  8. Over voltage, under voltage, over current auto protection
  9. Single-way output or multi-way output on request
  10. Surge protector, EMI filter on request

Technical Parameter of power conditioner

Input Voltage

DBW

SBW

220±15%,20%,30%,50%

380±15%,20%, 25%30%,50%

Output Voltage
(Preset at 1.5%)

220Vac±1-5%

380Vac±1-5%

Efficiency

>98%

Precision

1-5%

Frequency

47-53Hz

Response Time

<0.5S/20V(Line Voltage)

Insulated Strength

2000V/1 minute without puncture

2500V/1 minute
without puncture

Insulated Resistance

>2MΩ

Wave Deformation

Nil

Isolation transformer

Optional

Surge Protection

Optional

Model & Specifications

Phase

Model

Rated Capacity(KVA)

Dimension(H×W×D)mm

Cabinet(QTY)

Single Phase

DBW-10

10

1020×300×700

1

DBW-15

15

1020×300×700

1

DBW-20

20

1020×300×700

1

DBW-30

30

1020×300×700

1

DBW-50

50

1120×380×750

1

DBW-80

80

1220×400×780

1

DBW-100

100

1220×400×780

1

DBW-150

150

1420×450×930

1

DBW-200

200

1420×450×930

1

Three phase

SBW-F10

10

1020×300×700

1

SBW-F20

20

1020×300×700

1

SBW-F30

30

1020×300×700

1

SBW-F50

50

1120×380×750

1

SBW-F80

80

1220×400×780

1

SBW-F100

100

1220×400×780

1

SBW-F150

150

1420×450×930

1

SBW-F200

200

1520×520×980

1

SBW-F300

300

1720×600×1380

1

SBW-F500

500

1860×720×1580

1

SBW-F800

800

1860×900×1080

1

SBW-F1000

1000

1860×900×1080

2

SBW-F1500

1500

1860×900×1080

3

SBW-F2000

2000

1860×900×1080

3
