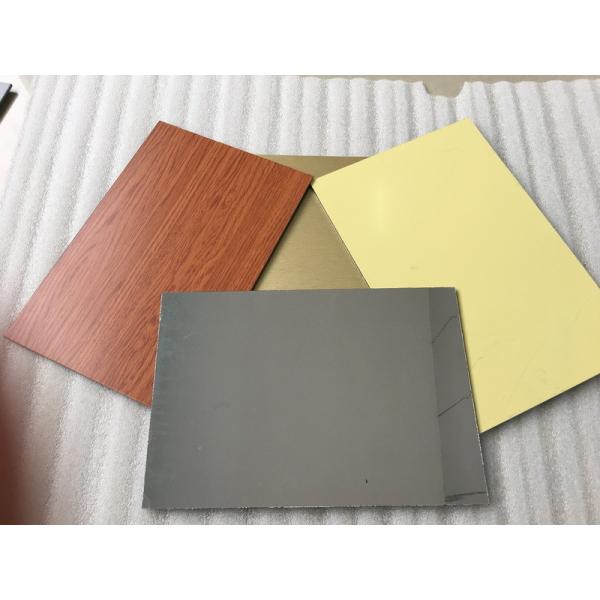

Security ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu Thickness
Security ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu Thickness
Security ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu Thickness
Security ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu Thickness
Specifications
Brand Name :
OEM
Model Number :
6* 1500 * 5600mm (0.50/0.50mm)
Certification :
ISO9001:2008 ISO14001:2015
Price :
negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
250,000 + square meters + per month
Delivery Time :
15 days
Packaging Details :
wooden packages or bare loading, according to customer's requirement
MOQ :
negotiation
ALUMINUM ALLOY :
Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005
PACKAGES :
Strong wooden packages
SIZE :
6* 1500 * 5600mm (0.50/0.50mm)
MOQ :
1,000 sqm for a single width and a single color
Paint :
FEVE paint, PVDF Paint
COLOR :
Any colors are available
Description

Spectra Red color ACP Aluminium composite panel 6* 1500 * 5600mm (0.50/0.50mm) with PVDF paint

Dimensions:
6* 1500 * 5600mm (0.50/0.50mm)
Non-standard width are available with speical minimum order quantity


Advantages:

Workability during installation

Vivid colors

Excellent Coatings
Color Uniformity and Durability during the warranty years
Lightweight and Rigidity compared with other products
Excellent Insulation of Thermal Conductivity
Anti-toxicity and Safety
High Peeling Strength upto GB standard

1.The LDPE coare are imported from Middle East,Italy,Korea and so on.

2.we have the aluminum coil supplier for producing the different specification of aluminum coil for us
.

Items (PVDF ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥25um 27u(av.30) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified


Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened installation time
10) Quality warranty:
A) 20-year guarantee for PVDF aluminum composite panels


(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden case

Security ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu ThicknessSecurity ACP Aluminium Composite Panel 5600mm Length With 0.50mm Alu Thickness
