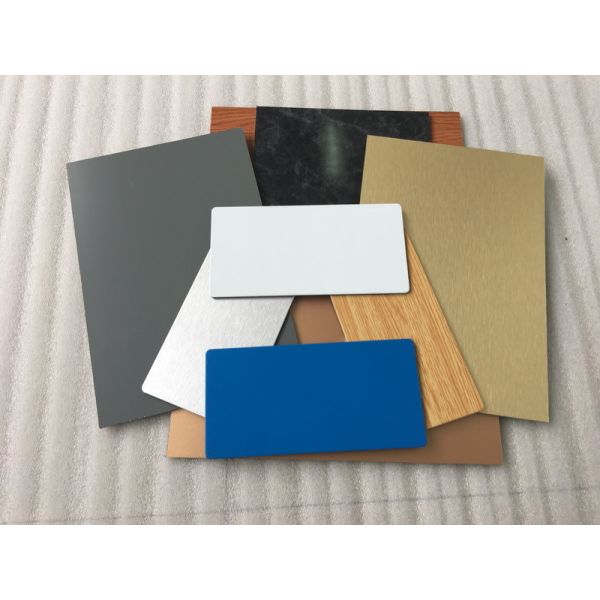

Bronze ACP Aluminium Composite Panel Corrosion Resistance Easy To Maintain
Bronze ACP Aluminium Composite Panel Corrosion Resistance Easy To Maintain
Bronze ACP Aluminium Composite Panel Corrosion Resistance Easy To Maintain
Bronze ACP Aluminium Composite Panel Corrosion Resistance Easy To Maintain
Specifications
Brand Name :
OEM
Model Number :
6* 1250 * 5000mm (0.50/0.50mm)
Certification :
ISO9001:2008 ISO14001:2015
Price :
negotiation
Payment Terms :
D/A, L/C, D/P, T/T, Western Union
Supply Ability :
250,000 + square meters + per month
Delivery Time :
15 days
Packaging Details :
wooden packages or bare loading, according to customer's requirement
MOQ :
negotiation
ALUMINUM ALLOY :
Alloy 3105, Alloy 1100, Alloy 3003, Alloy 5005
PACKING :
Strong wooden cases with fumigation
SPECIFICATIONS :
6* 1250 * 5000mm (0.50/0.50mm)
MOQ :
500 sqm for a single color and a single width
Paint :
PVDF Paint and FEVE paint
COLOR :
Custom colors are available for your choice
Description

Spectra Bronze color ACP Aluminium composite panel 6* 1250 * 5000mm (0.50/0.50mm) with PVDF paint

Dimensions:
6* 1250 * 5000mm (0.50/0.50mm)
Non-standard width are available


Advantages:

Color Uniformity and Durability within 20 years

Excellent painting
Anti-toxicity and Safety
Workability during installation process
High Peeling Strength upto GB standard
Lightweight and Rigidity compared with other products
Excellent Insulation of Thermal Conductivity

Aluminum Alloy: 3003, 5005
Coating:PVDF
Core:Fireproof or unbroken core
Function:Fireproof, waterproof ,mouldproof ,dustproof and rustproof
Usage:External Wall, Curtain Wall, Advertising
Brand:ALUONTOP or OEM brand
Delivery Time:10 to 25 Days
Production Capacity:10,000sqm per Day

Items (PVDF ACP) Standard Index Result Conclusion
Appearance Clean Surface without swell, scrath and aberration Pass Qualified
Deviation of Dimension Deviation of Diagonal: ≤5mm 1mm Qualified
Thickness of Coating ≥25um 27u(av.30) Qualified
Hardness of Pencil ≥HB H Qualified
Toughness of Coating ≤2T 2T Qualified
Impact Strength 50 Kg.cm Without paint off and crack Pass Qualified
Boiling Water Resistance Boiling for 2h without change Unchanged Qualified
Acid Resistance Immerse Surface with 5% HCI(v/v) for 24h without change Unchanged Qualified
Alkali Resistance Immerse Surface with 5% NaOH(m/m) for 24h without change Unchanged Qualified
Solvent Resistance Clean 100times without change Bottom unrevealed Qualified
Cleaning Resistance ≥10000 times without change Unchanged Qualified
Bend Strength ≥100Mpa 121Mpa Qualified
Flexuous Modulus of Elasticity ≥2.0x10 4 Mpa 3.12x10 4 Mpa Qualified
Cutting Strength ≥28.0 Mpa 32.0 Mpa Qualified
180°Peel strength ≥7.0 N/mm 11.2N/mm Qualified
Salt Haze Resistance(3000h) Not less than Grade 2 Grade 1 Qualified
Artificial Weathering(4000h) Artificial Resistance Aberration ≤4.0 1.24 Qualified
Aging Resistance out of Light Not less than Grade 2 Grade 1 Qualified


Other specifications available, according to customers' requirements
3) Various colors available, according to customers' requirements
4) High impact resistance and good plasticity
5) Efficiently lightened burden for walls
6) Strengthened impact resistance for constructions
7) Great weather adaptabilities, high intensity, and easy maintenance
8) Perfect sound insulation, thermal resistance and fire retardant capability
9) Easy installation, apparently shortened the installation time
10) Quality warranty:
A) 20-year warranty for PVDF aluminum composite panel


(Notes: Optional items & customers colors are subject to the respective minimum quantity. )

Package:
Strong wooden packages

Bronze ACP Aluminium Composite Panel Corrosion Resistance Easy To MaintainBronze ACP Aluminium Composite Panel Corrosion Resistance Easy To Maintain
