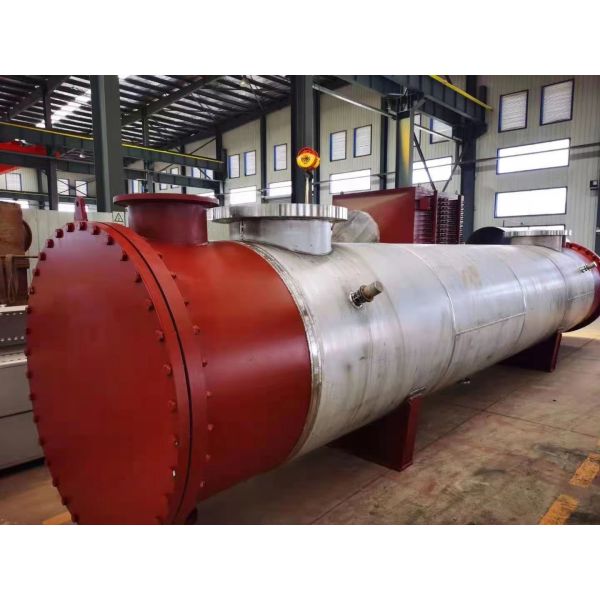

Anodic Protection Acid Cooler with 316L Stainless Steel Construction for Corrosion Resistance and High Heat Transfer Efficiency
Anodic Protection Acid Cooler with 316L Stainless Steel Construction for Corrosion Resistance and High Heat Transfer Efficiency
Specifications
Brand Name :
Carpe Diem
Model Number :
CD-001
Place of Origin :
China
MOQ :
1
Price :
Navigated Price
Payment Terms :
T/T
Supply Ability :
2000/year
Delivery Time :
60days
Packaging Details :
Naked
Shell :
304L
Heat ExchangeTube :
316L
Tubesheet :
304L
Baffle-crossing :
304L
Head :
Q235
Description
Anodic Protection Acid Cooler Second Adsorption Acid Cooler

We design and manufacture anodic protection acid coolers strictly per clients' actual on-site working parameters, covering different acid density ranges, service temperatures and heat dissipation demands. Adopting premium 316 series stainless steel as main material, this equipment is fitted with professional anodic anti-corrosion control system, perfectly adapting to highly corrosive industrial working scenes.

With personalized structural design, it well fits various factory installation spaces and greatly boosts overall heat exchange performance. By stabilizing metal surface passivation state via dedicated control devices, it builds firm anti-corrosion layer to slow down material erosion effectively.

The device can effectively stop corrosive damage and liquid seepage troubles, keeping process acid in stable quality. Widely suited for sulfuric acid production and various chemical production lines, it features durable service span, fewer daily upkeeps and outstanding operational stability.

Process Parameters
Project Design Parameters Performance Parameters
Shell Side Tube Side Shell Side Tube Side
MEDIUM Fluid name Sulfuric Acid 98.5% Cooling Water Sulfuric Acid 98.5% Cooling Water
Temperature (Inlet) ℃ 59 32 59 32
Temperature (Outlet)℃ 50 40 50 39.946
Liquid Kg/h 1086000 1086000 480000
Density(inlet/outlet) Kg/m³ 1810 1000 1810 1000
Viscosity(inlet/outlet)(cp) 7.9 0.76 7.9 0.76
Inlet pressure Mpa 0.5 0.3 0.5 0.3
Pressure drop, Mpa ≤0.1 ≤0.1 0.068 0.022
PERFORMANCE Heat exchanged quantity W ～4414590.0
Flow rate m/s 0.563 1.378
Heat transfer area affluent coefficient 1.15
Heat transfer coefficient W/m² ℃ 789.362
Heat transfer area m² 170
Technical Specifications
Type: shell and tube
Flow form: counter-current flow
Sealing form: welding connection in acid side, flange connection in water side
Materials and Specifications:
Shell: 304 δ= 10
Heat Transfer Tube: 316L Φ19×1.5×6000
Tubesheet: 304 δ= 55
Baffle-crossing: 304 δ= 10
Head: Q235-B δ= 10
Flange Standard:
Shell Side: HG/T20592-2009(B) PN10 DN 450
Tube Side: HG/T20592-2009(B) PN10 DN 350
Size: Φ1100×7794×1570
Operating weight: 16109 Kg
Scope of Supply
  • Complete set
  • Control system
  • Special cable
  • Random accessories
