F13 Lead Acid Battery For Solar System
F13 Lead Acid Battery For Solar System
F13 Lead Acid Battery For Solar System
F13 Lead Acid Battery For Solar System
Specifications
Brand Name :
FOBERRIA
Model Number :
FBR12V
Certification :
CE / ISO9001
Place of Origin :
CHINA
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 per month
Delivery Time :
25-30days
Packaging Details :
Cartons with pallet
Product Name :
Solar Lead Acid Battery
Model :
FBR12V
Volts :
12V
Capacity :
65AH-250AH
Terminal type :
F13
Battery Type :
Sealed Rechargeable Battery
Color :
Black,Gray,Customized
Discharge :
Low Self Discharge
Guarantee :
3Years
Application :
Solar system
Description

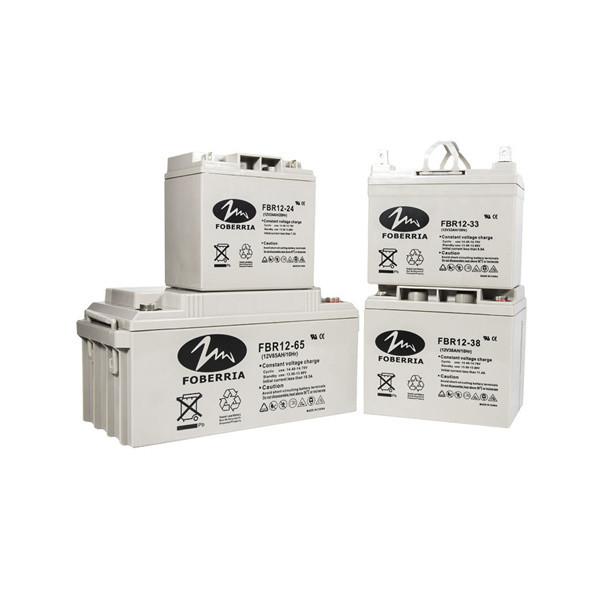

12v Maintenance Free Sealed Solar Lead Acid Battery For Solar System

>Specification
Battery Model No. FBR12V
Nominal Voltage 12V
Capacity 20HR(5.25V) 120Ah
(25ºC) 10HR(5.25V) 105Ah
Terminal type F13
Internal resistance Approx 4mΩ
(Fully charged,25ºC)
Capacity affected by 40ºC 102%
Temperature(20HR) 25ºC 100%
0ºC 85%
-15ºC 65%
Self-discharge(25ºC) 3month Remaining Capacity:91%
6month Remaining Capacity:82%
12month Remaining Capacity:65%
Nominal operating temperature 25ºC±3ºC(77ºF±5ºF)
Operating Discharge -15ºC-50ºC(5ºF-122ºF)
temperature range Charge -10ºC-50ºC(14ºF-122ºF)
Storage -20ºC-50ºC(-4ºF-122ºF)
Float charging voltage
(25ºC)		 13.5 to 13.8V
Temperature compensation:-18mV/ºC
Cyclic charging voltage
(25ºC)		 14.5 to 15V
Temperature compensation:-30mV/ºC
Max charging current 36A
Max discharging current 960A(5sec.)
Designed floating life(20ºC) 10years
>Structure and composition
Component Positive plate Negative plate Container Cover Separator Electrolyte Safety valve Terminal
Raw material Lead dioxide Lead ABS ABS AGM Sulfuric acid Rubber Copper
>Discharge diagram
F13 Lead Acid Battery For Solar System
F13 Lead Acid Battery For Solar System

>Main Features

Lead acid battery are the most common form for solar battery storage currently on the market.

Battle-tested, thousands of the world's people have used large of lead-acid batteries with solar electricity to remove their need to be

connected to the traditional electricity grid.

The most common setup of lead acid batteries you'll see is usually some kind of rural household installing a bank of batteries + solar panels,

because it's cheaper than paying $30,000 to get the grid extended all the way to their house.

However, some people who have normal access to the grid still elect to go off-grid with a big bank of lead acid batteries.

>Application

1.Solar and wind energy storage system;

2.EPS and UPS battery backup;

3.Signal system,emergency lighting system,security system;

4.Telecommunication Equipment;

5.Power source for portable devices or tools.
F13 Lead Acid Battery For Solar System
>Workshop scene
F13 Lead Acid Battery For Solar System
