Specifications
Load :
0 ... 800 Ω
Shipping Weight :
1 Kg
Height :
15 mm
Brand Name :
Wenglor
Model Number :
P1KY001
Certification :
ATEX
Place of Origin :
Romanla
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
100PC
Packaging Details :
carton
Housing Base :
metal
Outputs Power :
975 mW
Standard Target Plate :
20 mm x 20 mm
Protection Rating :
IP20
Operating Voltage :
5 ... 25 V
Voltage :
17 V at 20 mA
Measuring Plate Detected :
≥ 3 mA
Description

Wenglor P1KY001High-Precision Time-of-Flight Laser Distance Sensor

Description:

Manufacturer : Wenglor

Product No. :P1KY001

https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

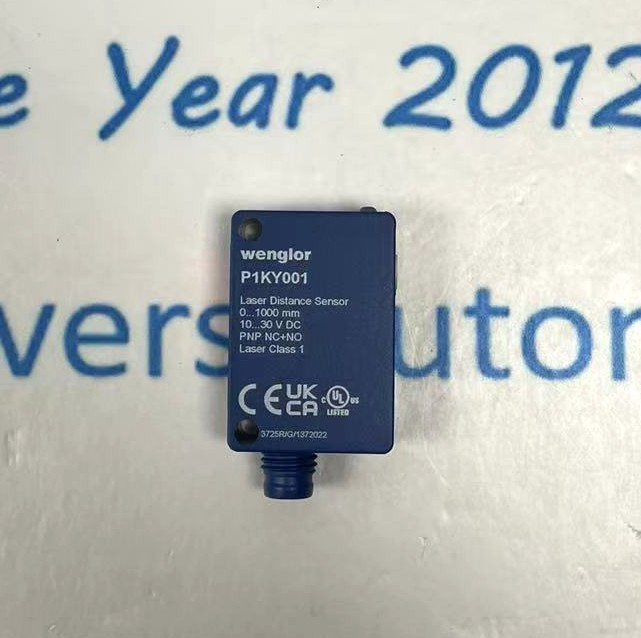

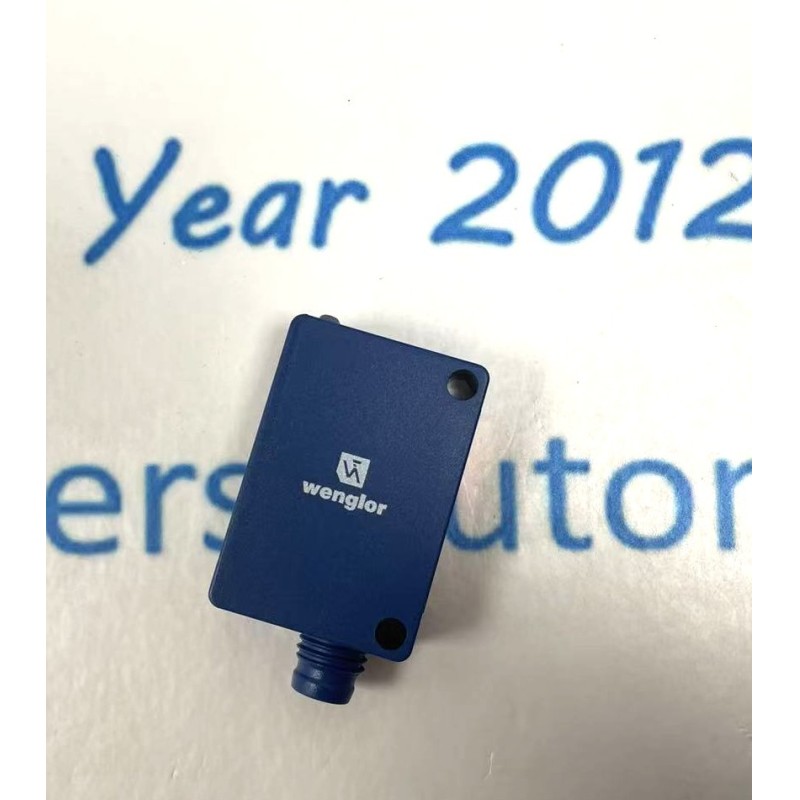

The Wenglor P1KY001 is a cutting-edge time-of-flight laser distance sensor designed for reliable object detection and distance measurement in industrial environments. Leveraging Wenglor's proprietary Wintec interference-free technology, this miniature sensor delivers exceptional performance even in challenging conditions, such as detecting black objects at extrme angles or operating alongside multiple sensors without mutual interference. Ideal for applications like driverless transport vehicle (DTS) object detection, the P1KY001 combines compact design with robust functionality, making it a versatile solution for modern industrial automation systems .


Detail:


Category
Parameters
Details
Category
Parameters
Details
Optical Data
Working Range
0 ... 1000 mm
Electrical Data
Supply Voltage
10 ... 30 V DC
Setting Range
100 ... 1000 mm
Current Consumption (Ub=24V)
< 30 mA
Light Source
Red Laser (680 nm)
Switching Frequency
1000 Hz
Laser Class (EN 60825-1)
Class 1 (Eye-Safe)
Response Time
0.5 ms
Beam Divergence
< 16 mrad
Switching Outputs
2 x PNP (NC/NO Configurable)
Max. Ambient Light
10,000 lux
Protection Features
Short Circuit, Reverse Polarity, Overload Protection
Mechanical Data
Housing Material
ABS/PC Plastic
Safety & Standards
Protection Class
IP67
Optic Cover
PMMA Plastic
MTTFd (EN ISO 13849-1)
996.97 A
Connection
M8 × 1, 4-Pin
Certifications
CE, UKCA, UL

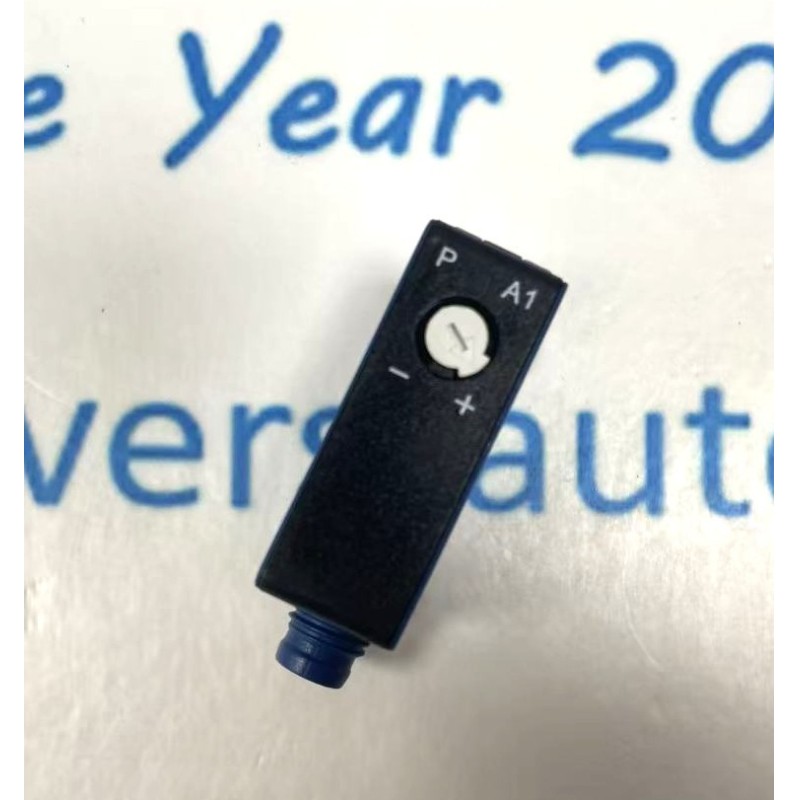

Setting Method
Potentiometer
FDA Accession Number
1620293-001
