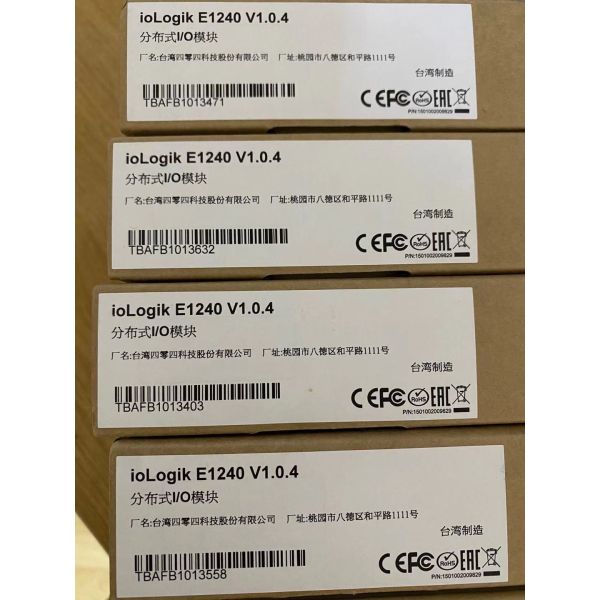

MOXA ioLogik E1240 Remote Ethernet I/O Module

Name: MOXA ioLogik E1240 Remote Ethernet IO Module
Brand: MOXA
Price: 1 USD

Product Details:

Manufacturer : MOXA

Product No. : ioLogik E1240

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

MOXA ioLogik E1240 is a high-reliability 8-channel analog input remote Ethernet I/O module from MOXA (MOXA Inc.), specifically engineered for industrial automation and IIoT scenarios that require accurate remote data acquisition and stable connectivity. As a key product of MOXA’s ioLogik E1200 series, the ioLogik E1240 features 8 differential analog input channels, built-in 2-port Ethernet switch for daisy-chain topologies, and support for multiple industrial protocols, enabling seamless integration into existing industrial control systems. With its robust isolation protection, wide operating temperature range, and easy configuration tools, the MOXA ioLogik E1240 is widely used in energy monitoring, facility monitoring, factory automation, and remote sensor data acquisition applications, delivering consistent and precise performance even in harsh industrial environments.

Description:

Parameter	Specification
Model	MOXA ioLogik E1240
Series	MOXA ioLogik E1200 Series
Product Type	Remote Ethernet I/O Module with 8-Channel Analog Input
Analog Input Channels	8 Channels, Differential Input
Input Modes	0-10 VDC (Voltage), 0-20 mA, 4-20 mA (Current)
Resolution	16 Bits
Accuracy	±0.1% FSR @ 25°C; ±0.3% FSR @ -10°C/60°C; ±0.5% FSR @ -40°C/75°C
Sampling Rate	12 Samples/sec (all channels); 12 Samples/sec (single channel)
Isolation Protection	3 kV DC or 2 kV RMS
Ethernet Ports	2 x 10/100 Mbps RJ45, Switched
Power Supply	12-36 VDC (nominal 24 VDC), Power Consumption: 121 mA @ 24 VDC
Operating Temperature Range	Standard: -10°C to 60°C; Wide-Temp: -40°C to 75°C (non-condensing)
Storage Temperature Range	-40°C to 85°C (non-condensing)
Relative Humidity	5% ~ 95% RH (non-condensing)
MTBF	474,053 Hours (Telcordia SR 332 Standard)

Category	Details
Housing Material	Industrial-Grade Plastic with Protective Coating
Dimensions (W x H x D)	27.8 mm x 124 mm x 84 mm (1.09 x 4.88 x 3.31 inches)
Mounting Type	DIN-Rail Mounting, Wall Mounting
Weight	Under 200 g (0.44 lb)
Wiring Specifications	I/O Cable: 16-26 AWG; Power Cable: 12-24 AWG; Max 14 AWG
Configuration Tools	MOXA IO Search Utility, MXIO Library (Windows/Linux), RESTful API
Environmental Resistance	Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6)
Safety & EMC Certifications	CE, RoHS, CROHS, WEEE, UL 508, ATEX Zone 2, UL/CUL Class I Division 2
EMC Compliance	EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4 Series
Altitude	Up to 2000 m (contact MOXA for higher altitude requirements)
