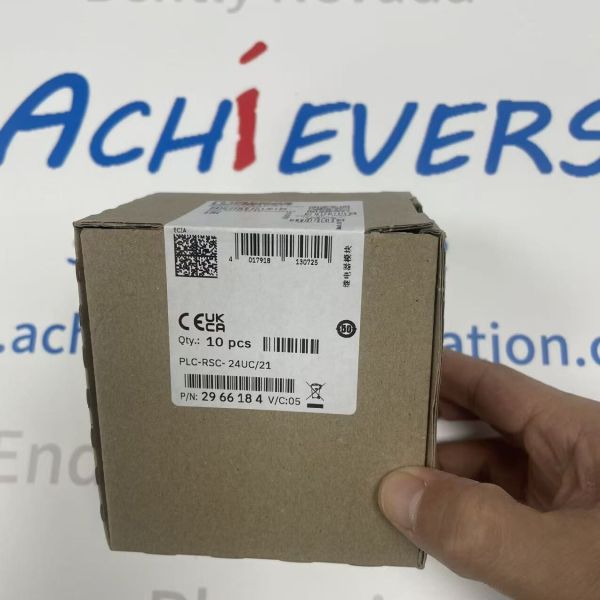

Phoenix Contact PPLC-RSC-24UC21 2966184 Relay Module

Specifications

Brand Name :

Phoenix Contact

Model Number :

2966184

Certification :

HART

Place of Origin :

MOQ :

Price :

Negotiable

Payment Terms :

T/T

Supply Ability :

1000pcs per week

Packaging Details :

carton

Ph Measuring System :

For FLXA402, PH202, FLXA202, FLXA21 (*2)

Cell Constant :

0.05 cm-1, 5 cm-1

Protection Level :

IP54

Contact Input :

Two points

Connecting Cable :

KS1 KS2

Integral Indicator :

Digital indicato

Surface :

SMS01

Input Voltage :

5V ± 5% (from PC USB port)

Description

Phoenix Contact PPLC-RSC-24UC21 2966184 Relay Module

Product Details:

Manufacturer : Phoenix Contact

Product No. : 2966184

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

The Phoenix Contact PPLC-RSC-24UC21 2966184 is a high-performance interface relay module engineered for universal industrial automation applications. As a key product in Phoenix Contact’s PLC-Interface product family, it integrates a pluggable miniature relay with power contacts and a basic terminal block with screw connections, combining reliable switching performance with a ultra-compact design. This module is specifically tailored for DIN rail mounting, ensuring seamless integration into control cabinets across diverse industrial sectors while delivering stable operation in harsh environmental conditions.

Detail:

Specification Category	Details
Product Type	Interface Relay Module
Product Family	PLC-Interface
Manufacturer	Phoenix Contact
Part Number	PPLC-RSC-24UC21 2966184
Mounting Type	DIN Rail (NS 35/7.5)
Operating Mode	100% Operating Factor
Nominal Input Voltage (Uₙ)	24V AC/DC
Input Voltage Range (20°C)	19.4V AC/DC – 33.6V AC/DC
Contact Configuration	1 Changeover Contact (SPDT)
Connection Method	Screw Connection
Operating Temperature Range	-40°C to +60°C
Degree of Protection	IP20
Flammability Rating (Housing)	UL 94 V0
Dimensions (W×H×D)	6.2 mm × 80 mm × 94 mm

Performance Parameter	Value
Typical Input Current at Uₙ	11 mA (24V AC); 8.5 mA (24V DC)
Maximum Power Dissipation (Nominal Condition)	0.26 W
Test Voltage (Winding/Contact)	4 kV AC (50 Hz, 1 min)
Rated Surge Voltage	6 kV
Typical Response Time	6 ms
Typical Release Time	15 ms
Maximum Switching Voltage	250 V AC/DC
Minimum Switching Voltage	5 V (100 mA)
Limiting Continuous Current	6 A
Maximum Inrush Current	10 A (4 s)
Contact Material	AgSnO (Silver-Tin Oxide)
Minimum Switching Current	10 mA (12 V)
