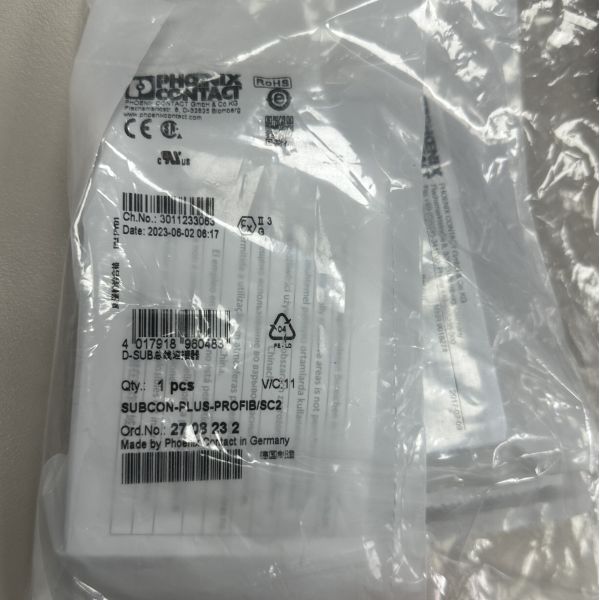

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 2708232 D-SUB Bus Connector

Specifications

Brand Name :

Phoenix Contact

Model Number :

2708232

Certification :

HART

Place of Origin :

MOQ :

Price :

Negotiable

Payment Terms :

T/T

Supply Ability :

1000pcs per week

Packaging Details :

carton

Ph Measuring System :

For FLXA402, PH202, FLXA202, FLXA21 (*2)

Cell Constant :

0.05 cm-1, 5 cm-1

Protection Level :

IP54

Contact Input :

Two points

Connecting Cable :

KS1 KS2

Integral Indicator :

Digital indicato

Surface :

SMS01

Input Voltage :

5V ± 5% (from PC USB port)

Description

Phoenix Contact SUBCON-PLUS-PROFIB/SC2 2708232 D-SUB Bus Connector

Product Details:

Manufacturer : Phoenix Contact

Product No. : 2708232

https://www.achievers-automation.com More Products

Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

The Phoenix Contact SUBCON-PLUS-PROFIB/SC2 2708232 is a high-performance D-SUB bus connector specifically engineered for PROFIBUS DP systems, designed to enable reliable data transmission in industrial automation environments. As a core product in Phoenix Contact’s bus connector lineup, it features a 9-pin male D-SUB configuration, 35° angled cable outlet, and an integrated termination resistor with slide switch control. This connector is built for easy field installation, with a reversible internal connection unit that allows flexible cable entry from the left or right, making it a versatile solution for industrial control systems where seamless bus connectivity and durability are critical.

Detail:

Specification Category	Details
Product Type	D-SUB Bus Connector (PROFIBUS DP)
Product Family	SUBCON-PLUS Series
Manufacturer	Phoenix Contact
Product Model & Part Number	SUBCON-PLUS-PROFIB/SC2 2708232
Connector Type	9-pin Male D-SUB
Bus System	PROFIBUS DP
Connection Method	Screw Connection Terminal Blocks
Housing Material	ABS (Metal-Plated)
Operating Temperature Range	-20°C to +75°C (Operation); -25°C to +80°C (Storage/Transport)
Degree of Protection	IP40
Insertion/Withdrawal Cycles	>200 Cycles
Cable Outlet Angle	35° Angled

Performance Parameter	Value
Nominal Voltage (Uₙ)	50 V (General); 5 V (Signal)
Nominal Current (Iₙ)	100 mA
Maximum Power Dissipation (Nominal Condition)	0.025 W
Transmission Speed	Up to 12 Mbps
Termination Resistor Value	390 Ω, 220 Ω (Switchable)
Pin Assignment	3, 5, 6, 8 (PROFIBUS Signal)
Conductor Cross-Section (Rigid)	0.14 mm² (Min) – 1.5 mm² (Max)
Conductor Cross-Section (Flexible)	0.14 mm² (Min) – 1.0 mm² (Max)
Stripping Length	5 mm
Tightening Torque (Terminal Blocks)	0.22 Nm – 0.25 Nm
Tightening Torque (Fixing Screws)	0.4 Nm (4-40 UNC Screws)
Transmission Medium	Copper
