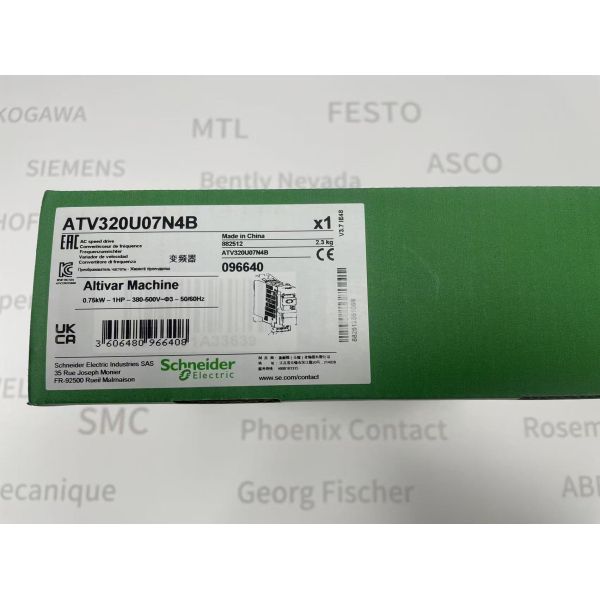

Schneider Electric ATV320U07N4B high-performance variable speed drive
Schneider Electric ATV320U07N4B high-performance variable speed drive
Schneider Electric ATV320U07N4B high-performance variable speed drive
Schneider Electric ATV320U07N4B high-performance variable speed drive
Specifications
Brand Name :
Schneider
Certification :
ATEX
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
T/T,Alipay,Paypal
Supply Ability :
100pcs per month
Delivery Time :
ATV320U07N4B
Packaging Details :
carton
Operating System :
Windows Embedded Standard 7
Input Current :
3.2 A
Style :
Profile series
Part No :
EL3022
Discount Schedule :
0I12
Drive Type :
right
Storage :
32 GB SSD
Interface :
Digital pulse
Description

Schneider Electric ATV320U07N4B high-performance variable speed drive

Product Details:
Manufacturer :Schneider

Product No. : ATV320U07N4B


https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


The Schneider ATV320U07N4B is a high-performance variable speed drive (VSD) belonging to Schneider Electric’s Altivar Machine ATV320 series, specifically engineered to meet the precise motor control needs of modern industrial applications. Designed for reliability, energy efficiency, and easy integration, this drive delivers consistent performance across a wide range of industrial sectors, making it an ideal choice for OEMs and end-users seeking optimized motor operation.
As a core product of Schneider Electric, the ATV320U07N4B combines robust construction with advanced control features, ensuring seamless compatibility with both asynchronous and synchronous motors. Its compact design and flexible configuration options allow for easy installation in cabinet environments, while integrated safety functions and communication protocols enhance operational safety and system connectivity.


Detail:


Specification
Details
Product Model
Schneider ATV320U07N4B
Product Series
Schneider Altivar Machine ATV320
Product Type
Variable Speed Drive (VSD)
Rated Motor Power (Heavy Duty)
0.75 kW / 1 HP
Supply Voltage
3-phase, 380 - 500 V AC (-15% to +10% tolerance)
Supply Frequency
50 - 60 Hz (-5% to +5% tolerance)
Nominal Output Current (Heavy Duty)
2.3 A at 4 kHz
Line Current
3.6 A at 380 V AC; 2.7 A at 500 V AC (Heavy Duty)
Output Frequency Range
0.1 - 599 Hz
IP Protection Rating
IP20 (conforming to EN/IEC 61800-5-1 and IEC 60529)
EMC Filter
Integrated, Class C2
Mounting Mode
Cabinet Mount (Book Format)



Category
Features & Specifications
Motor Control Profiles
Voltage/frequency ratio (2-point, 5-point), flux vector control without sensor (standard and energy-saving), quadratic U/F, sensorless vector control for synchronous motors
Safety Functions
STO (Safe Torque Off), SLS (Safe Limited Speed), SS1 (Safe Stop 1), SMS (Safe Maximum Speed), GDL (Guard Door Locking), SIL 3 compliant
Communication Protocols
Built-in Modbus Serial and CANopen; optional cards for EtherCAT, Profinet, Ethernet/IP, Profibus DP V1, DeviceNet, Ethernet Powerlink
I/O Interfaces
7 discrete inputs (including STO, 24 V DC; DI5 programmable as pulse input 0-30 kHz), 3 discrete outputs (open collector), 3 analog inputs (10-bit resolution), 1 software-configurable analog output (10-bit resolution)
Relay Outputs
Configurable relay logic (R1A: 1 NO, R1B: 1 NC, R1C, R2A: 1 NO, R2C); maximum switching current 3 A (250 V AC, resistive load) and 5 A (250 V AC for R2A/R2C)
Environmental Operating Conditions
Ambient temperature: -10 to +50 °C (without derating); +50 to +60 °C (with derating); robust design with IEC 60721-3-3 Class 3C3 coated PCBs for harsh environments
Regulation & Control
Adjustable PID regulator, automatic motor slip compensation, configurable acceleration/deceleration ramps, DC injection braking, transient overtorque (170-200% of nominal torque)
Certifications
CE, CSA, cUL, EAC, EN 954-1, EN ISO 13849-1/2, IEC 60204-1, IEC 61000, IEC 61158, IEC 61508, IEC 61784, NOM 117, RCM, UL


Schneider Electric ATV320U07N4B high-performance variable speed drive




Brand


Schneider Electric ATV320U07N4B high-performance variable speed drive


Schneider Electric (French: Schneider Electric, Euronext: SU) is a French multinational enterprise. It was founded in 1836. It is also one of the world's largest energy management company and one of the world's largest suppliers of optimization solutions. Its main products include circuit breakers, sensors, controllers, etc., providing overall solutions for energy facilities, industries, data centers, networks, and buildings in various countries. Among them, it is in the world's leading position in energy, infrastructure, industrial process control, building automation, data centers and networks.



Schneider Electric ATV320U07N4B high-performance variable speed drive


Achievers Automation Limited has more than 10 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.


Schneider Electric ATV320U07N4B high-performance variable speed drive


Below are the TOP BRANDS we handle in the past 14 years:

Schneider Electric ATV320U07N4B high-performance variable speed drive

FAQ of Achievers

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.


Q:How will you arrange shipment?

A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.


Q:What is the warranty of goods?

A: One-year Warranty.


Q:Which are the best-selling products?

A: Many brands of products have been supplied . For example, MTL safety barrier MTL5541, Endress Hauser​ RS33 , P+F safety barrier KFD2-SR2-Ex2.W, Hand Communicator TREXCHPNAWS1
