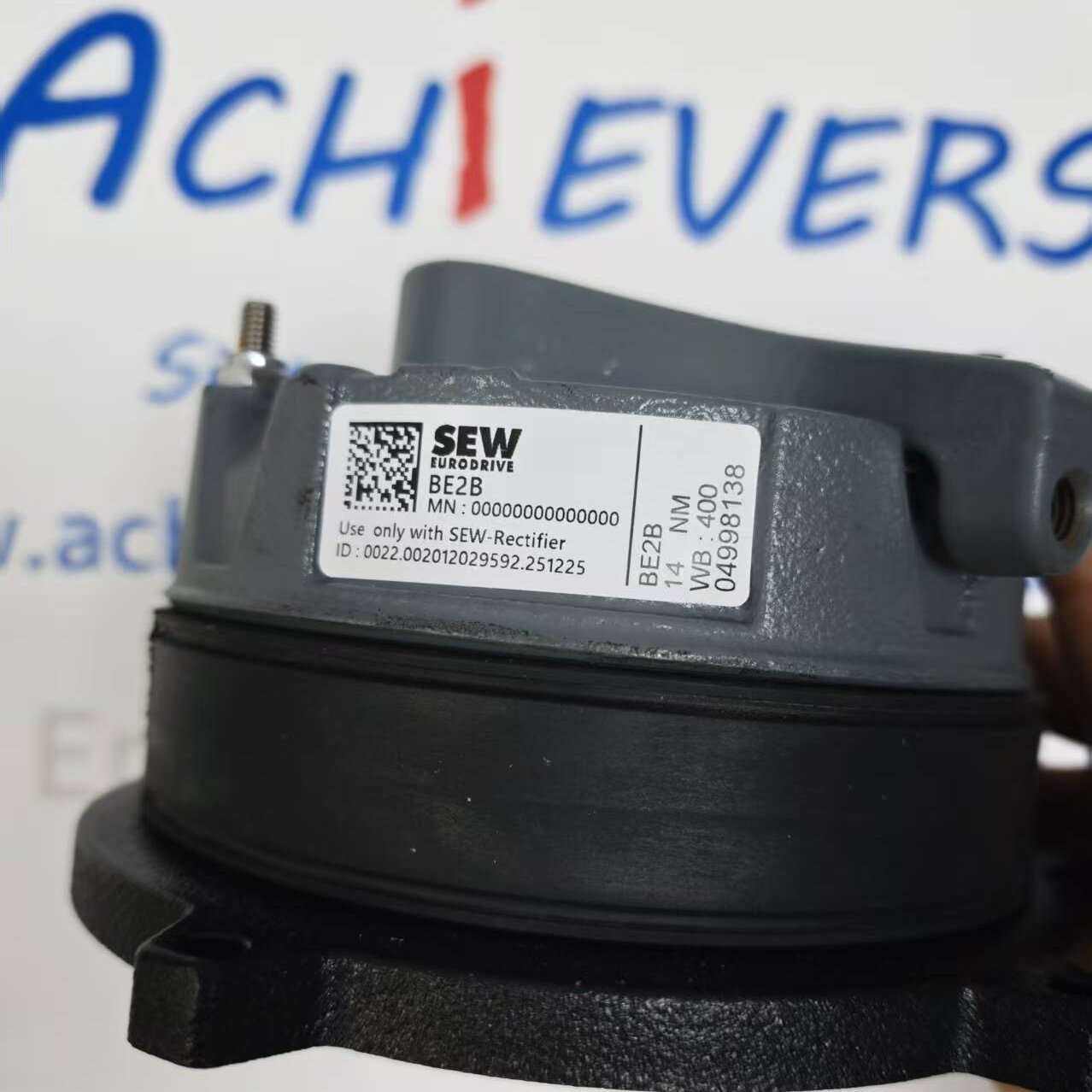

SEW EURODRIVE-BE2B Spring-Applied Electromagnetic Motor Brake

Specifications

Model Number :

EURODRIVE-BE2B

Delivery Time :

14-16 Weeks

Size :

Probe Material :

Stainless Steel

Supply Ability :

100 pieces

Contact Durability :

100

Payment Terms :

T/T

Rohs Compliance :

COMPLIANT

Place of Origin :

MOQ :

Stroke :

40 mm

Type Of Wire :

Polymer fibre

Mounting Position :

Any

Brand Name :

SEW

Operating Pressure :

0 bar ... 8 bar

Description

SEW EURODRIVE-BE2B Spring-Applied Electromagnetic Motor Brake

Description:

Description: SEW

Product No. : EURODRIVE-BE2B

https://www.achievers-automation.com More Products

The SEW-EURODRIVE BE2B is a compact single-disc spring-applied electromagnetic brake exclusively matched with SEW DRN80, DRN90 and DRN100 AC gearmotors. It adopts the safety-critical power-off braking principle: internal compression springs clamp the friction disc to lock the motor shaft once coil power cuts off; energized DC magnetic force pulls back the armature plate to release the brake for normal motor rotation.

BE2B supports three configurable static braking torque grades (10 Nm / 14 Nm / 20 Nm) via different spring assemblies. The fully encapsulated epoxy coil delivers stable performance with low continuous holding power. Optional BMFR manual release lever enables maintenance-free manual rotor unlocking without power supply. A matched SEW BS series rectifier converts industrial AC mains to rated DC coil voltage, which is mandatory for normal brake operation.

Detail:

Parameter Item	Technical Specification
Full Model Code	BE2B
Manufacturer	SEW-EURODRIVE
Compatible Motor Frames	DRN80, DRN90, DRN100 standard AC motors
Brake Working Principle	Spring-Applied, Power-Off Braking; DC Electromagnetic Release
Optional Static Braking Torque	10 Nm / 14 Nm / 20 Nm
Standard Rated Coil DC Voltage	24 VDC / 60 VDC / 96 VDC / 180 VDC
Matching Input AC Rectifier	BS24, BS60, BS96, BS180 (SEW dedicated rectifier required)
Coil Peak Inrush Power	160–190 W (short 160ms startup pulse)
Continuous Holding Power (IH)	43 W constant low power consumption
Inrush / Holding Current Ratio	8.5:1
Standard Armature Air Gap	0.2 mm adjustable via set screws
Release Response Time (t1)	≤ 12 ms
Braking Engagement Time (t2)	≤ 18 ms
Friction Disc Structure	Single-piece organic non-asbestos friction pad
Optional Accessory	BMFR automatic reset manual release lever
Net Assembly Weight	3.8–4.0 kg
Mounting Interface	Flange direct bolt-on rear motor shaft end
Maximum Allowable Switching Frequency	120 cycles per minute

Specification Item	Technical Value
Standard Ingress Protection	IP54 (IP55/IP65 optional customized)
Standard Operating Ambient Temp	-20 °C ~ +40 °C
Extended Low-Temp Operation	Down to -40 °C with dual-coil heating accessory
Max Extended High-Temp Environment	Up to +100 °C for customized heat-resistant variant
Storage Temperature Range	-30 °C ~ +70 °C
Relative Humidity Tolerance	5%–95% RH, non-condensing
Vibration Resistance Standard	IEC 60068-2-6 industrial machinery grade
Corrosion Protection Class	Standard factory anti-rust cast iron coating
Permitted Working Medium	Clean air environment, no heavy corrosive vapor
Safety Standard Compliance	EN ISO 13849-1, general PL c safety performance
Global Certifications	CE, RoHS compliant
Max Permitted Inertia Energy Per Brake Cycle	0.06 × 10⁶ J
Service Wear Life	≥ 5 million full brake-release cycles under rated torque
Installation Orientation	Unlimited horizontal / vertical mounting
Maintenance Interval	Gap adjustment inspection every 2,000 operating hours
