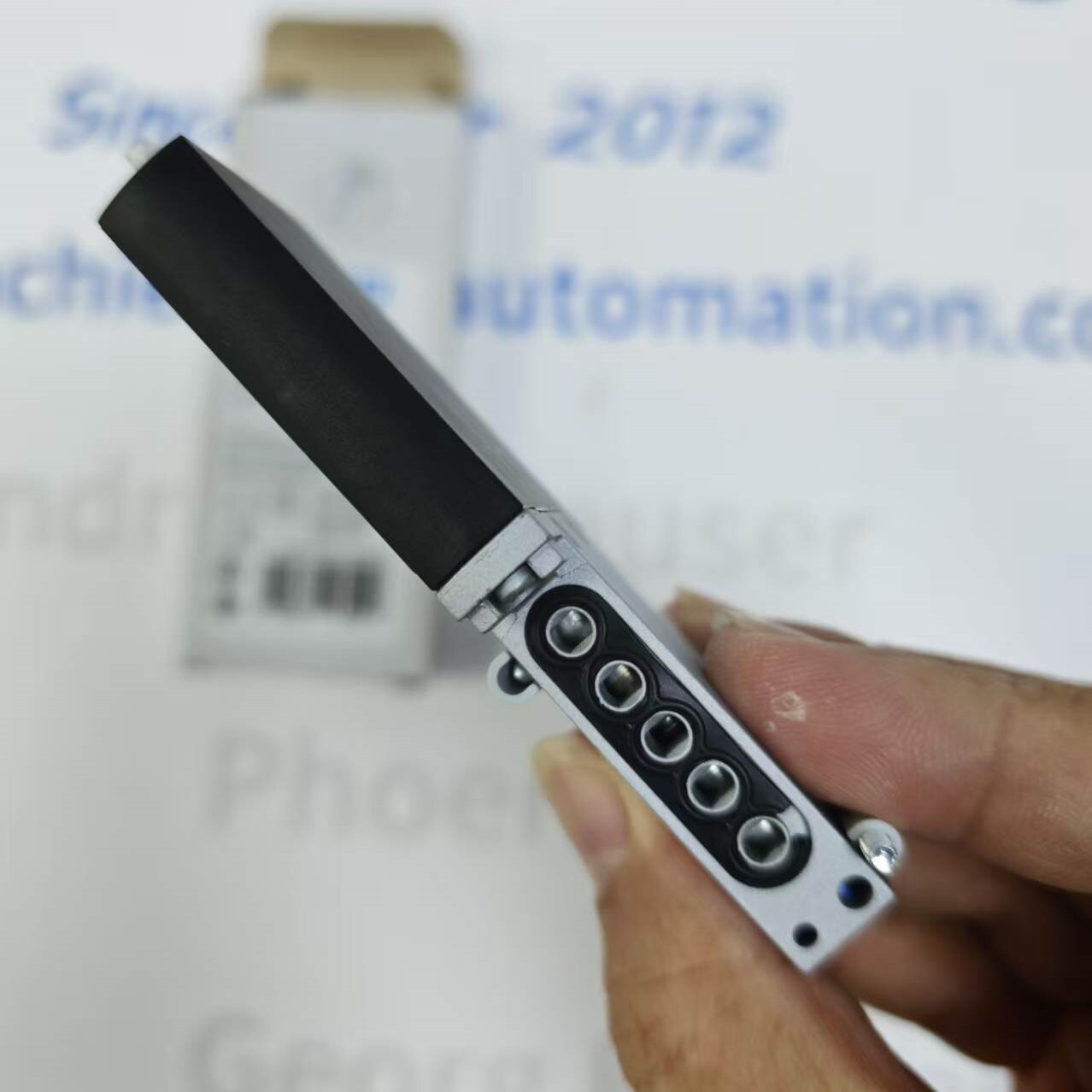

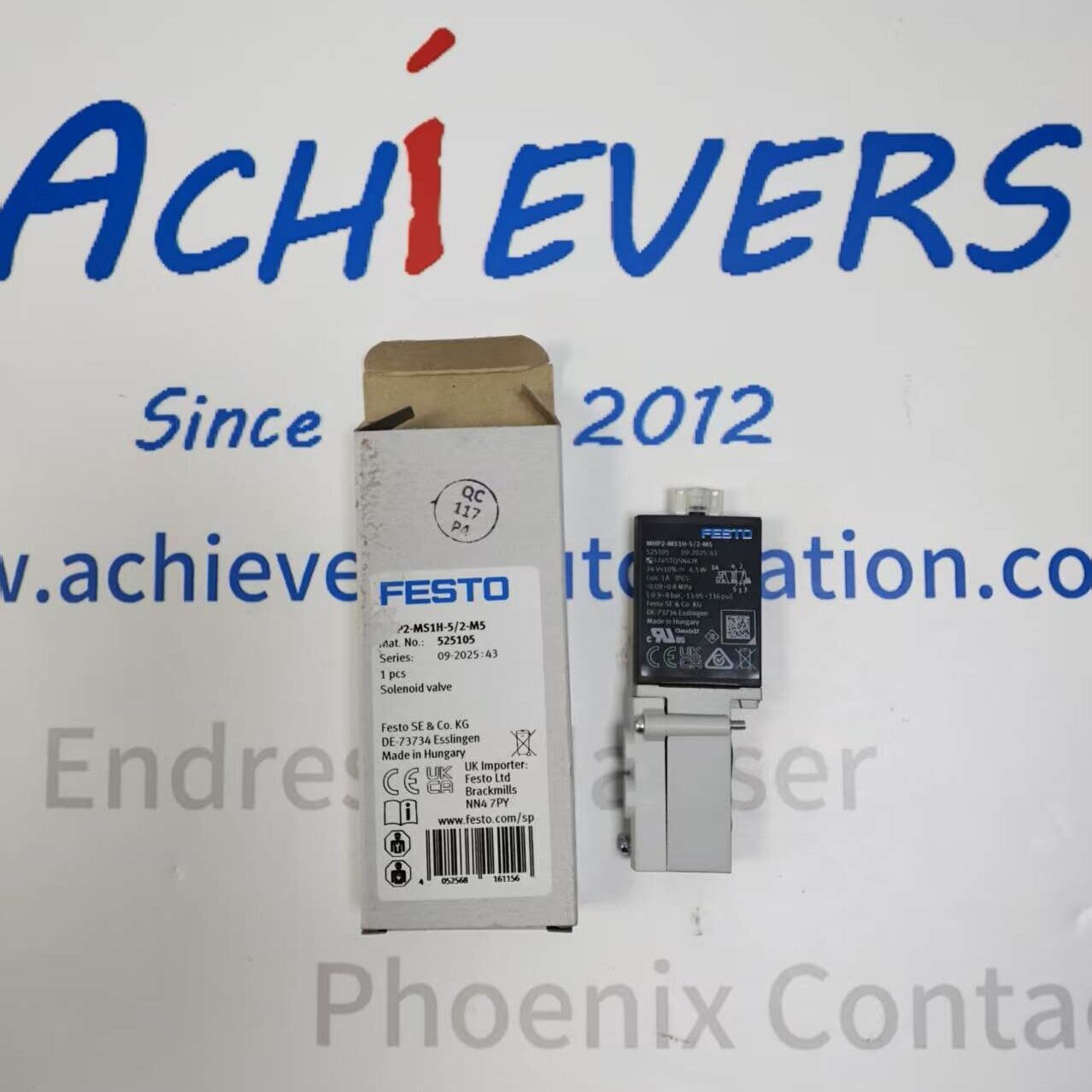

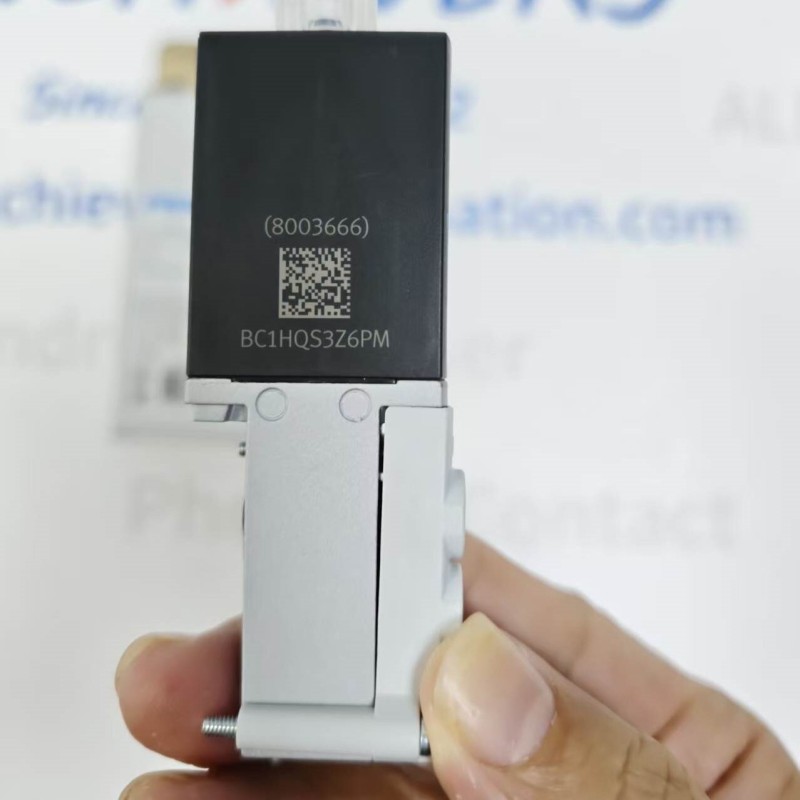

Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread
Specifications
Payment Terms :
T/T
Type :
Pneumatic Cylinder
Pressure Regulation Range :
Pressure Regulation Range
Model Number :
MHP2-MS1H-52-M5
Delivery Time :
in stock
Seal Material :
NBR (nitrile rubber）
Supply Ability :
100pc
Nominal Flow Rate (DIN 1343) :
1600 l/min
Place of Origin :
Hungary
MOQ :
1
Packaging Details :
carton
Mounting Position :
Any orientation
Brand Name :
Festo
Housing Width :
44 mm
Description

Festo MHP2-MS1H-52-M5 High-Speed 5/2 Way Solenoid Valve M5 Thread


Description:

Manufacturer : Festo

Product No. : MHP2-MS1H-52-M5

https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


The Festo MHP2-MS1H-52-M5 belongs to the MHP2 high-speed solenoid valve family, designed for ultra-fast pneumatic channel switching. It is a direct-actuated 5/2-way monostable poppet valve with mechanical spring reset.
This compact 10mm width valve adopts pressure-relieved poppet structure and soft NBR/HNBR sealing, delivering extremely short response time and high switching frequency up to 300Hz.

Detail:

Parameter Item Technical Specification
Full Part Number MHP2-MS1H-52-M5 (MHP2-MS1H-5/2-M5)
Manufacturer Festo
Factory Order Code 525105Festo
Valve Function 5/2-way, Monostable (Solenoid + Spring Return)
Actuation Mode Direct Acting Poppet Valve
Nominal Size 2 mmFesto
Rated Flow Rate 90 l/min (DIN 1343)Festo
Valve Width 10 mm; Grid Dimension: 14 mmFesto
Pneumatic Ports Port 2, 4: M5 female thread; Port 1, 3, 5: Sub-base connection
Control Voltage 24 V DC (±10% tolerance)Festo
Coil Power Peak 6.5 W, Holding 1.625 W (current reduction)
Electrical Connector 2-pin ZC plug
Manual Override Non-detenting push buttonFesto
Mounting Method PR Rail Manifold Installation
Body Material Die-cast Zinc Alloy
Seal Material NBR + HNBR Rubber
Net Weight 70 g
Switch-on Time ≤ 2 ms; Switch-off Time: 1.7 msFesto


Specification Item Technical Value
Operating Pressure Range -0.9 bar ~ 8 bar (-0.09 MPa ~ 0.8 MPa)Festo
Max Switching Frequency 300 HzFesto
Operating Medium Clean compressed air ISO 8573-1:2010 Festo[7:4:4]
Lubrication Lubricated or non-lubricated air (keep consistent)Festo
Ambient Operating Temperature -5°C ~ +40°C
Medium Temperature -10°C ~ +60°C
Ingress Protection Class IP65 (Dust-tight, splash-proof)Festo
Corrosion Resistance Class CRC 2 (Moderate Corrosion Stress)
Continuous Duty 100% ED long-term energization allowed
Flow Direction Non-reversible
Certifications CE, cULus Recognized, RCM, RoHS & UKCA CompliantFesto
Vibration Standard FN 942017-4, EN 60068-2-6 Level 2Festo
