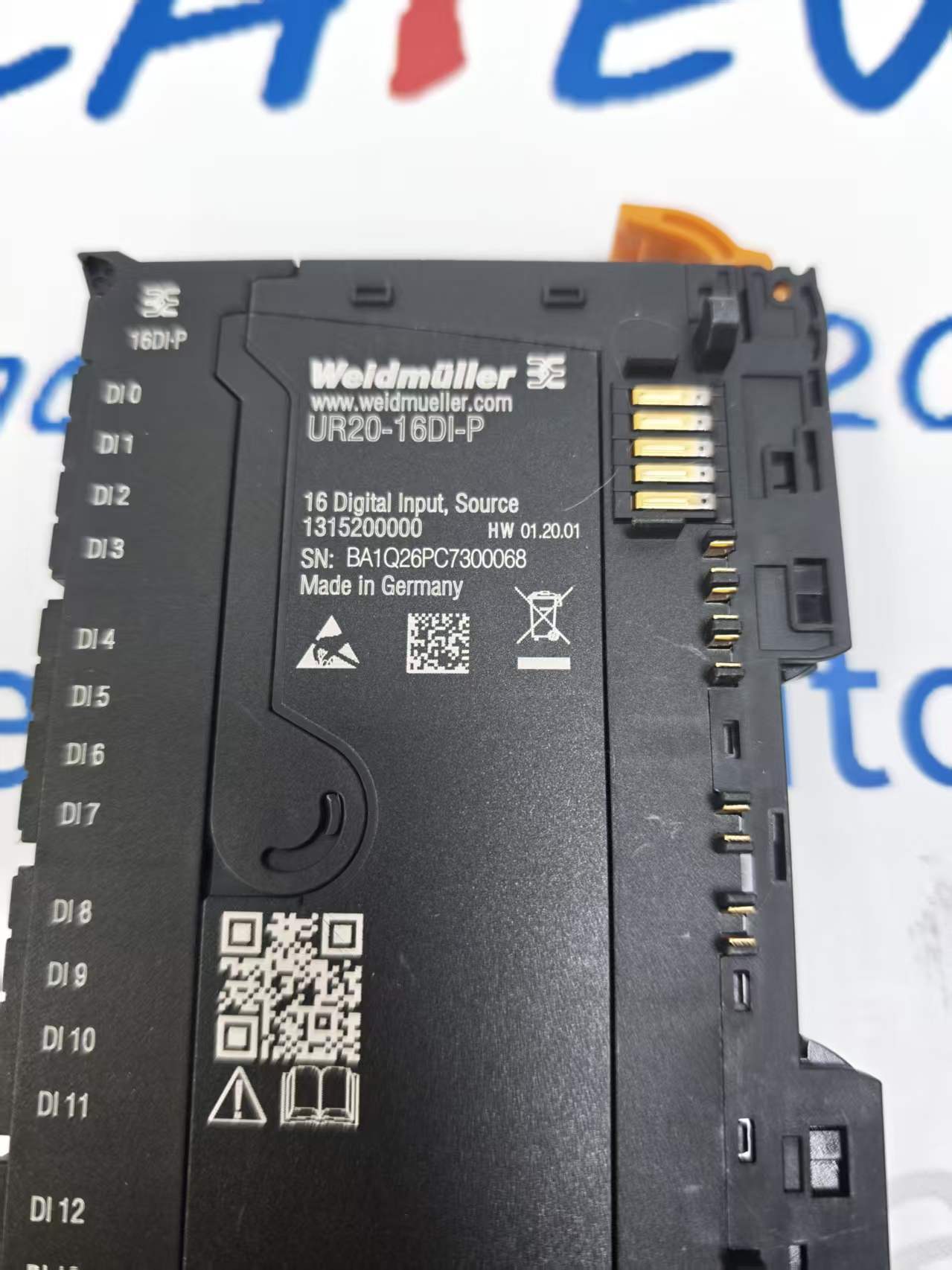

Weldmuller UR20-16DI-P u-remote 16-Channel PNP Digital Input Remote I/O Module

Specifications

Model Number :

UR20-16DI-P

Delivery Time :

14-16 Weeks

Size :

Probe Material :

Stainless Steel

Supply Ability :

100 pieces

Contact Durability :

100

Payment Terms :

T/T

Rohs Compliance :

COMPLIANT

Stroke :

40 mm

Place of Origin :

MOQ :

Type Of Wire :

Polymer fibre

Mounting Position :

Any

Brand Name :

Weldmuller

Operating Pressure :

0 bar ... 8 bar

Description

Weldmuller UR20-16DI-P u-remote 16-Channel PNP Digital Input Remote I/O Module

Name: Weldmuller UR2016DIP uremote 16Channel PNP Digital Input Remote IO Module
Brand: Weldmuller
Price: 1 USD

Description:

Description: Danfoss

Product No. : UR20-16DI-P

https://www.achievers-automation.com More Products

The Weidmuller UR20-16DI-P is a slim 16-channel PNP digital input remote I/O module designed for decentralized industrial automation signal acquisition, belonging to the universal u-remote modular I/O platform. The suffix -P stands for PNP positive switching logic, compatible with Type 1 & Type 3 standard proximity sensors per EN 61131-2.

This ultra-narrow 11.5mm width module adopts push-in spring terminal wiring without screwdrivers, supporting single-conductor sensor connection. Built-in 3ms hardware input filter suppresses on-site electromagnetic interference and switch bounce signals. 500VDC galvanic isolation separates field sensor circuits and internal system bus to avoid ground loop crosstalk. Integrated reverse polarity protection prevents permanent damage from reversed 24VDC wiring.

Detail:

Parameter Item	Technical Specification
Full Part Number	UR20-16DI-P
Manufacturer	Weidmuller
Factory Order Code	1315200000
Product Category	u-remote Remote Digital Input Module
Digital Input Quantity	16 Channels
Switching Logic	PNP Positive Switching
Compatible Sensor Standard	Type 1, Type 3 (EN 61131-2)
Rated Supply Voltage	24 VDC (-15% ~ +20%)
High Input Threshold	> 11 VDC
Low Input Threshold	< 5 VDC
Input Hardware Filter Time	3 ms fixed
Max Input Switching Frequency	1 kHz
Sensor Connection Mode	Single-wire connection
Onboard Auxiliary Sensor Power	Not available (external 24VDC required)
Galvanic Isolation Strength	500 VDC between field side & system bus
Reverse Polarity Protection	Integrated for power circuit
System Bus Consumption (Typ.)	8 mA
Power Segment Current Draw	< 25 mA
Process Data Length	2 Byte (16-bit digital input mapping)
Module Overall Dimensions (W×H×D)	11.5 mm × 120 mm × 76 mm
Net Weight	44 g
Mounting Standard	TS35 DIN Rail Snap-on Installation
Wiring Terminal Type	Push-in Spring Terminal
Supported Wire Cross-Section	0.14 ~ 1.5 mm² solid/stranded wire (AWG26 ~ AWG16)

Specification Item	Technical Value
Operating Ambient Temperature	-20 °C ~ +60 °C
Storage & Transport Temperature	-40 °C ~ +85 °C
Relative Humidity	5% ~ 95% RH, non-condensing
Vibration Resistance Standard	IEC 60068-2-6, 1g acceleration (8.4 Hz ~ 150 Hz)
Shock Resistance Standard	IEC 60068-2-27 industrial grade
Ingress Protection Rating	IP20 (Control Cabinet Internal Use Only)
Supported Fieldbus Protocols	PROFINET RT/IRT, EtherCAT, Modbus/TCP, EtherNet/IP, PROFIBUS DP-V1, CANopen, CC-Link IE TSN
System Bus Max Transmission Speed	48 MBit/s
Diagnostic Function	Global module fault diagnosis (no independent channel diagnosis)
EMC Compliance	EN 61000-6-2 industrial environment standard
Global Safety Certifications	cULus, CE Mark, RoHS Compliant (RoHS 7a/7cI Exemption)
REACH SVHC Compliance	Contains lead SVHC substance per standard specification
ETIM Classification Code	EC001599
Carbon Footprint (Cradle-to-Gate)	8,684 kg CO₂ eq.
Service Lifespan	Over 10 million plug/unplug module replacement cycles
