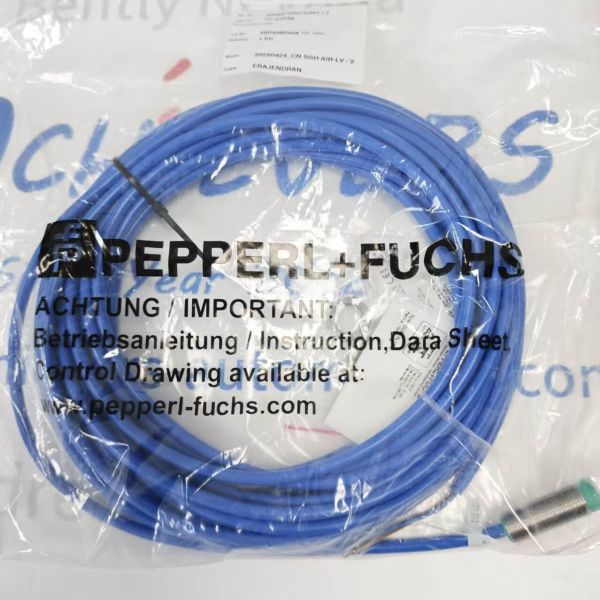

NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor
Specifications
MOQ :
1
Linearity Error :
0.1 %
Output Polarity :
DC
Length :
63.5 mm
Tightening Torque :
0.6 Nm
Brand Name :
Pepperl + Fuchs
Place of Origin :
Singapore
Payment Terms :
D/A
Model Number :
NJ4-12GM-N-10M
Target Size :
0.3 mm
Switching Frequency :
≤ 10 Hz
Interface Type :
RS-485 , 2-wire multidrop
Construction Type :
M12
Output Current :
4-20 mA
Description

NJ4-12GM-N-10M M12 Non-Flush NAMUR Inductive Proximity Sensor


Product Details:

Manufacturer : Pepperl + Fuchs

Product No. : NJ4-12GM-N-10M

https://www.achievers-automation.com More Products


Reliable Industrial Component Sourcing for Enterprises

This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.

To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.


The P+F NJ4-12GM-N-10M is a high-reliability NAMUR-type inductive proximity sensor manufactured by (P+F), designed for non-contact metal detection in general industrial and explosive hazardous area environments. Featuring a 12 mm cylindrical stainless steel housing, 4 mm non-flush sensing distance, and a 10-meter fixed PVC cable, this sensor delivers stable and repeatable switching performance for safety-related automation systems.

Detail:

Technical Item
Parameter Value
Product Model
NJ4-12GM-N-10M
Manufacturer
(P+F)
Sensor Type
Non-flush Inductive Proximity Sensor
Output Standard
NAMUR 2-wire (EN 60947-5-6)
Switching Function
Normally Closed (NC)
Rated Operating Distance (Sn)
4 mm
Assured Operating Distance (Sa)
0 – 3.24 mm
Nominal Supply Voltage
8.2 V DC (Internal resistance approx. 1 kΩ)
Max Switching Frequency
1500 Hz
Switching Hysteresis
3% of rated distance
No-load Current (No Target)
Min. 3 mA
Load Current (Target Detected)
≤ 1 mA
Metal Reduction Factor (Steel 1.4301)
0.85
Metal Reduction Factor (Aluminum)
0.4
Metal Reduction Factor (Copper)
0.3
Functional Safety Level
SIL 2 (IEC 61508)
MTTFd
11774 Years
Mission Time (TM)
20 Years


Physical & Environmental Item
Parameter Value
Housing Dimension
M12 cylindrical, length 33 mm
Housing Material
Stainless steel 1.4305 (AISI 303)
Sensing Face Material
PBT engineering plastic
Connection Type
10 m fixed PVC cable
Cable Diameter
4.8 mm ± 0.2 mm
Cable Core Cross Section
0.34 mm²
Min. Bending Radius
> 10 × cable diameter
Ingress Protection Rating
IP67
Operating Temperature Range
-25 °C to +100 °C
Storage Temperature Range
-30 °C to +105 °C
Installation Method
Non-flush mounting
Global Certifications
ATEX, IECEx, cULus, DNVGL Marine, CCC, ANZEx, KCC
Explosion-Proof Grade
Ga/Gb/Da/Db hazardous area approval
Standard Accessories
2 pieces stainless steel self-locking nuts
